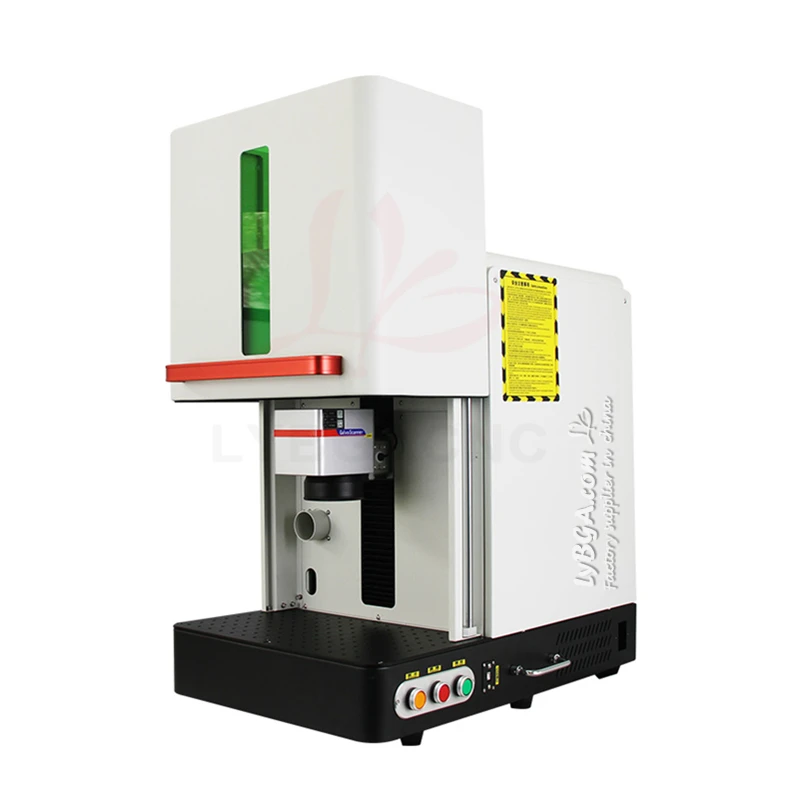

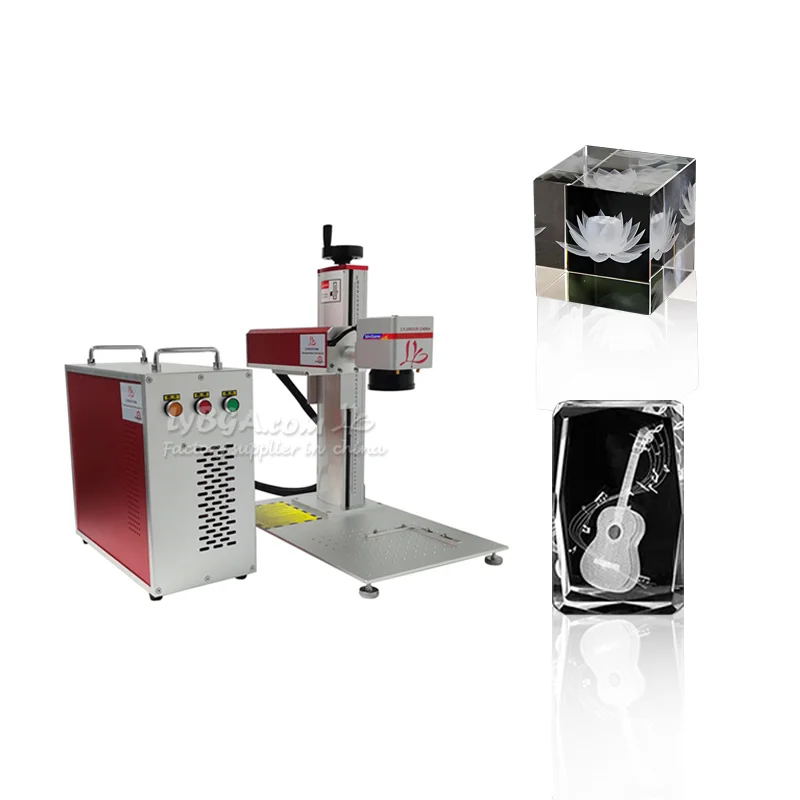

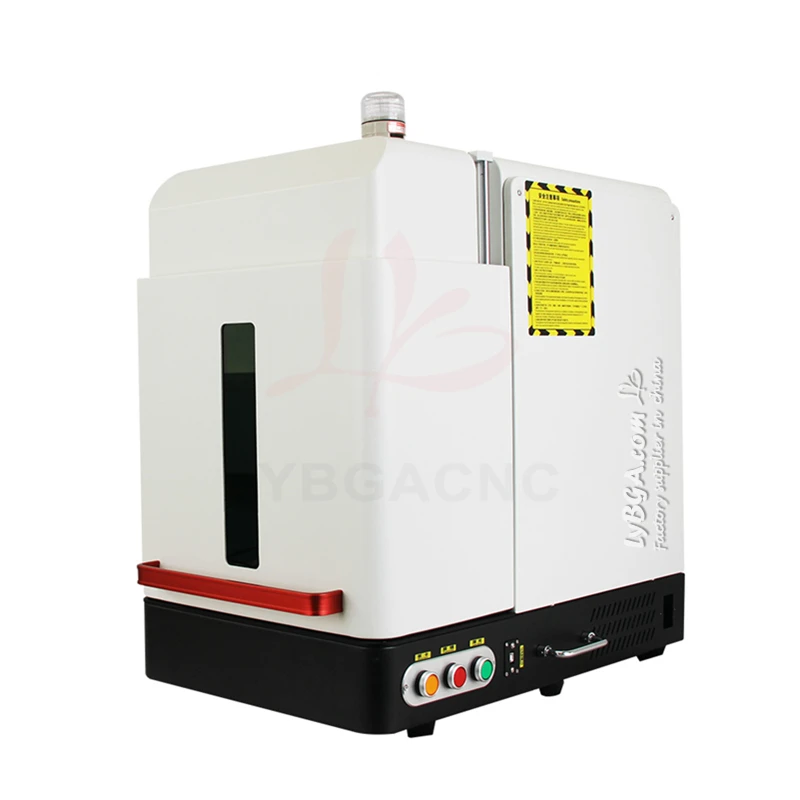

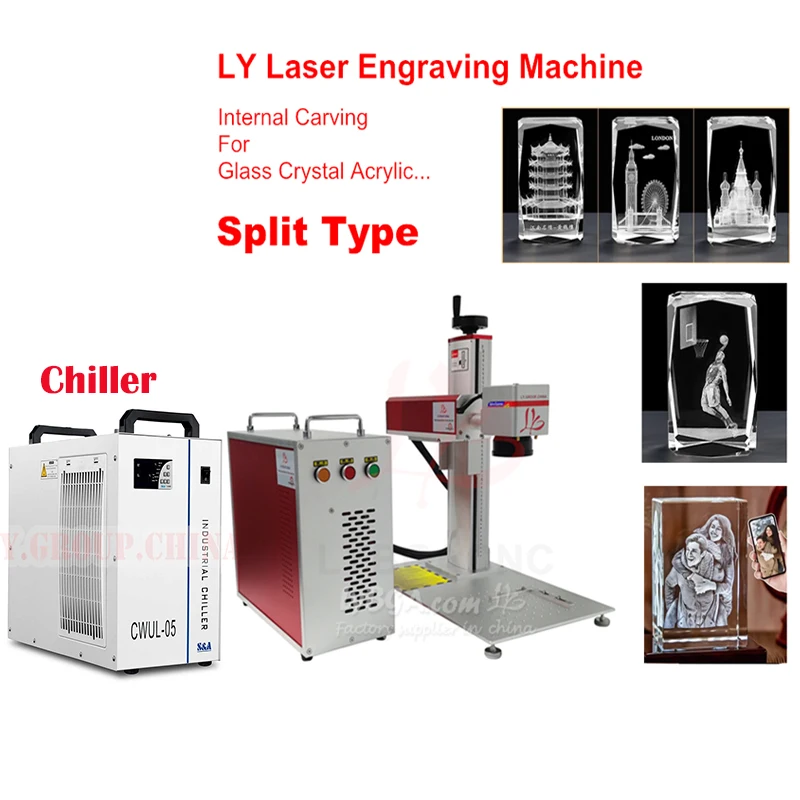

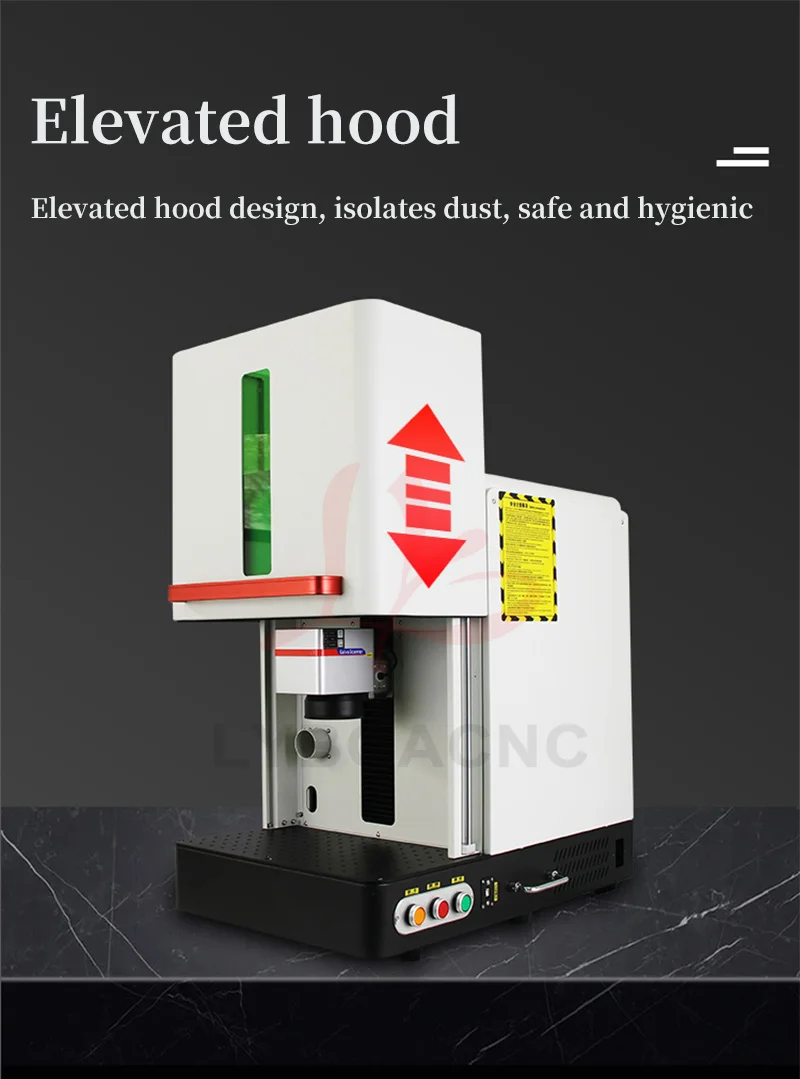

LY Laser Crystal 3D Internal Engraving Machine Desktop Portable Enclosed Type Ultraviolet Ray Purple Cold

Light UV 5W Laser Marking Machine For Universal Stuff Included Crystal Glass Acrylic Material

This machine can also be used for external engraving.

Product features:

LY Laser independently developed high integration, high peak power laser can not only be

used for internal carving of crystals or glass, but also for carving in most transparent materials;

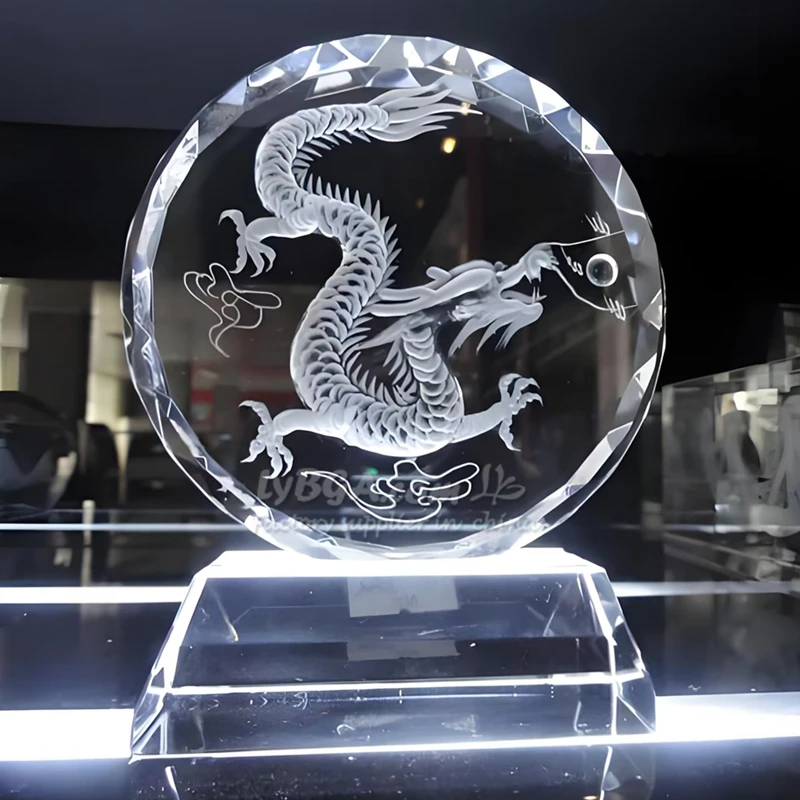

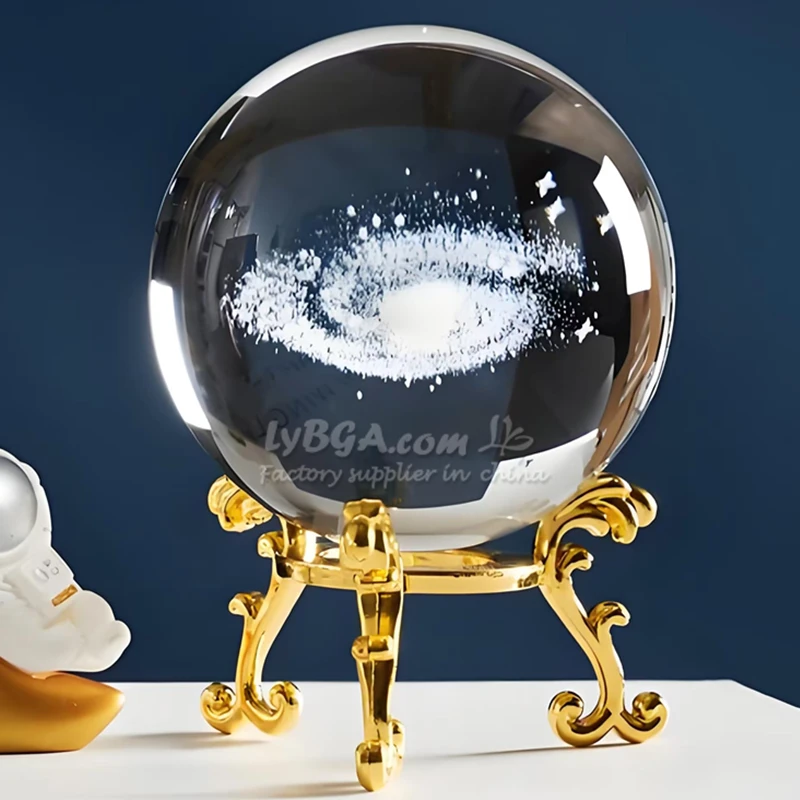

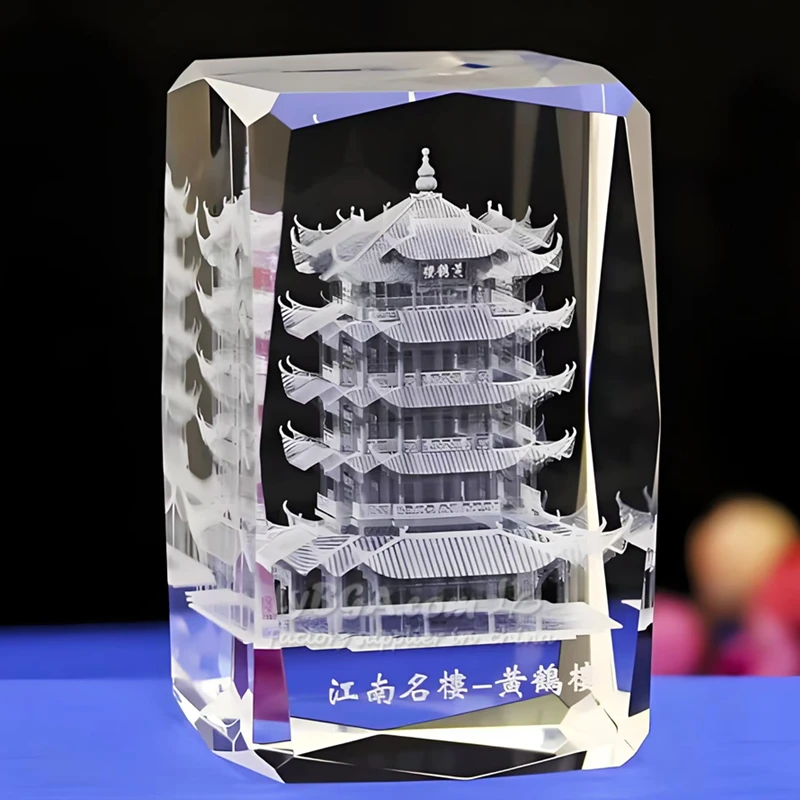

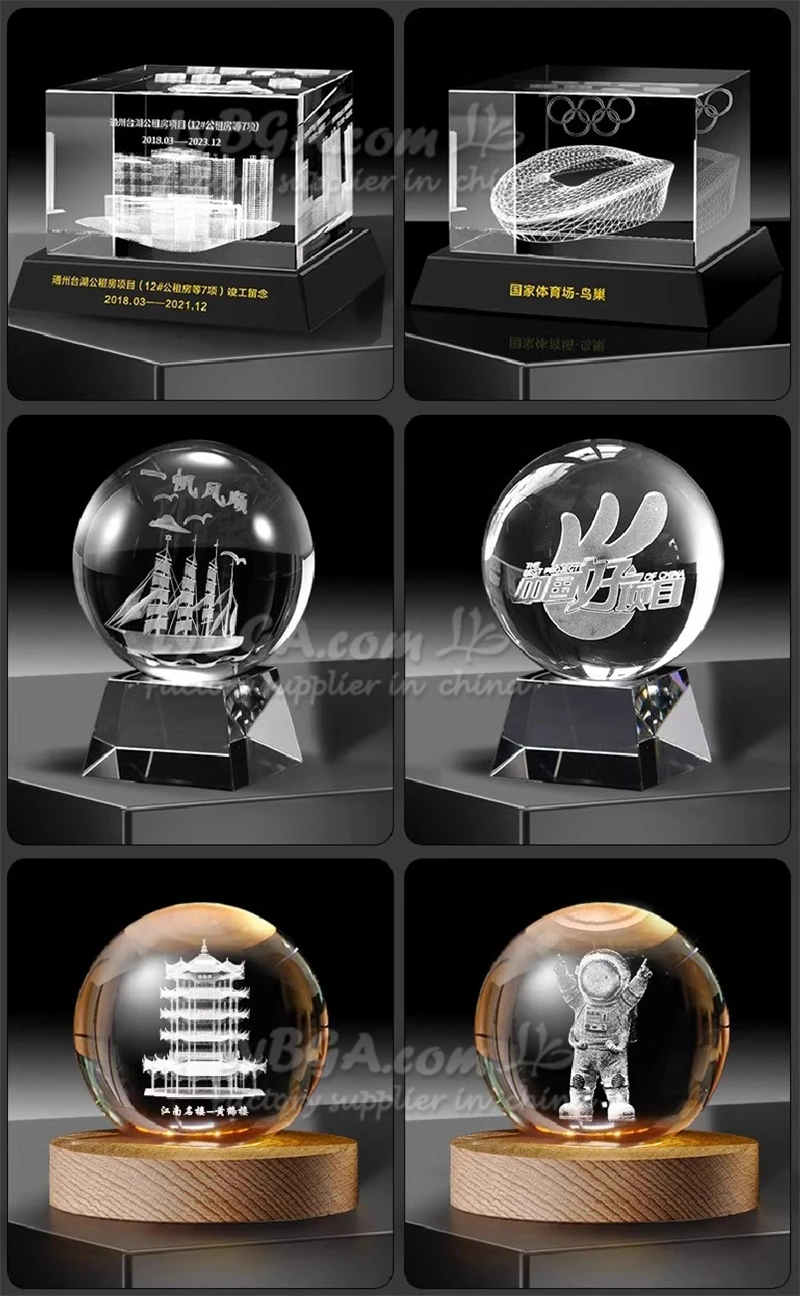

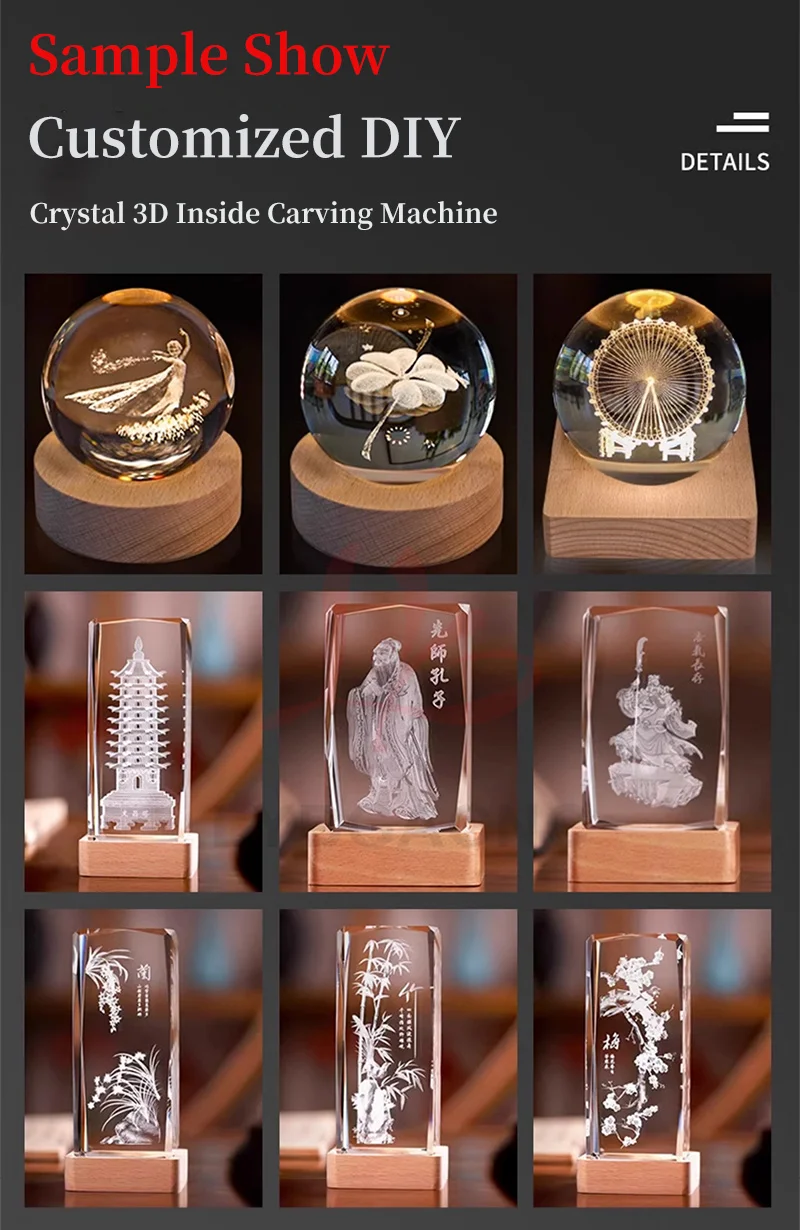

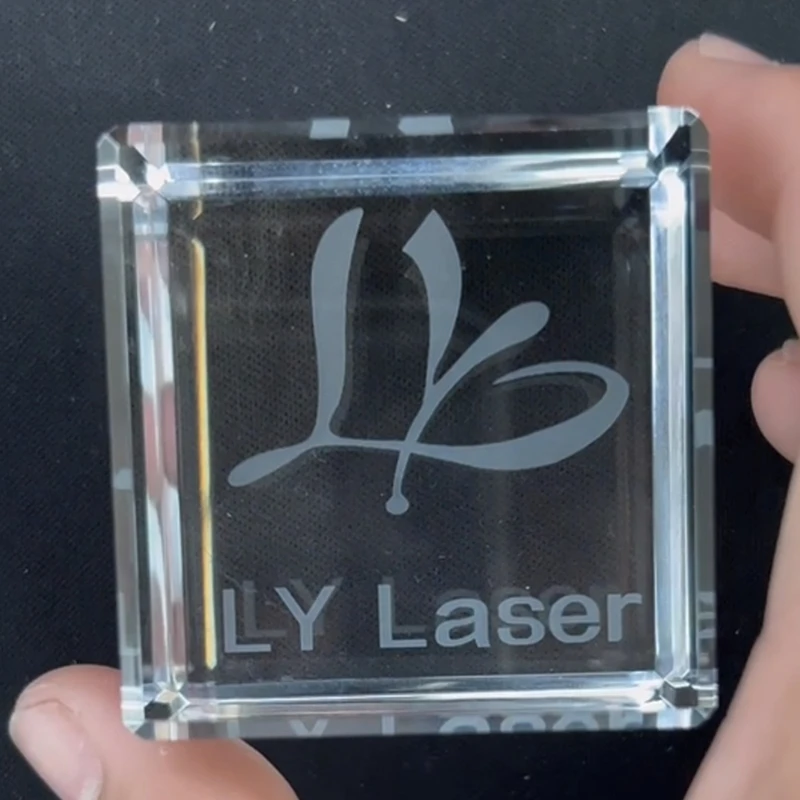

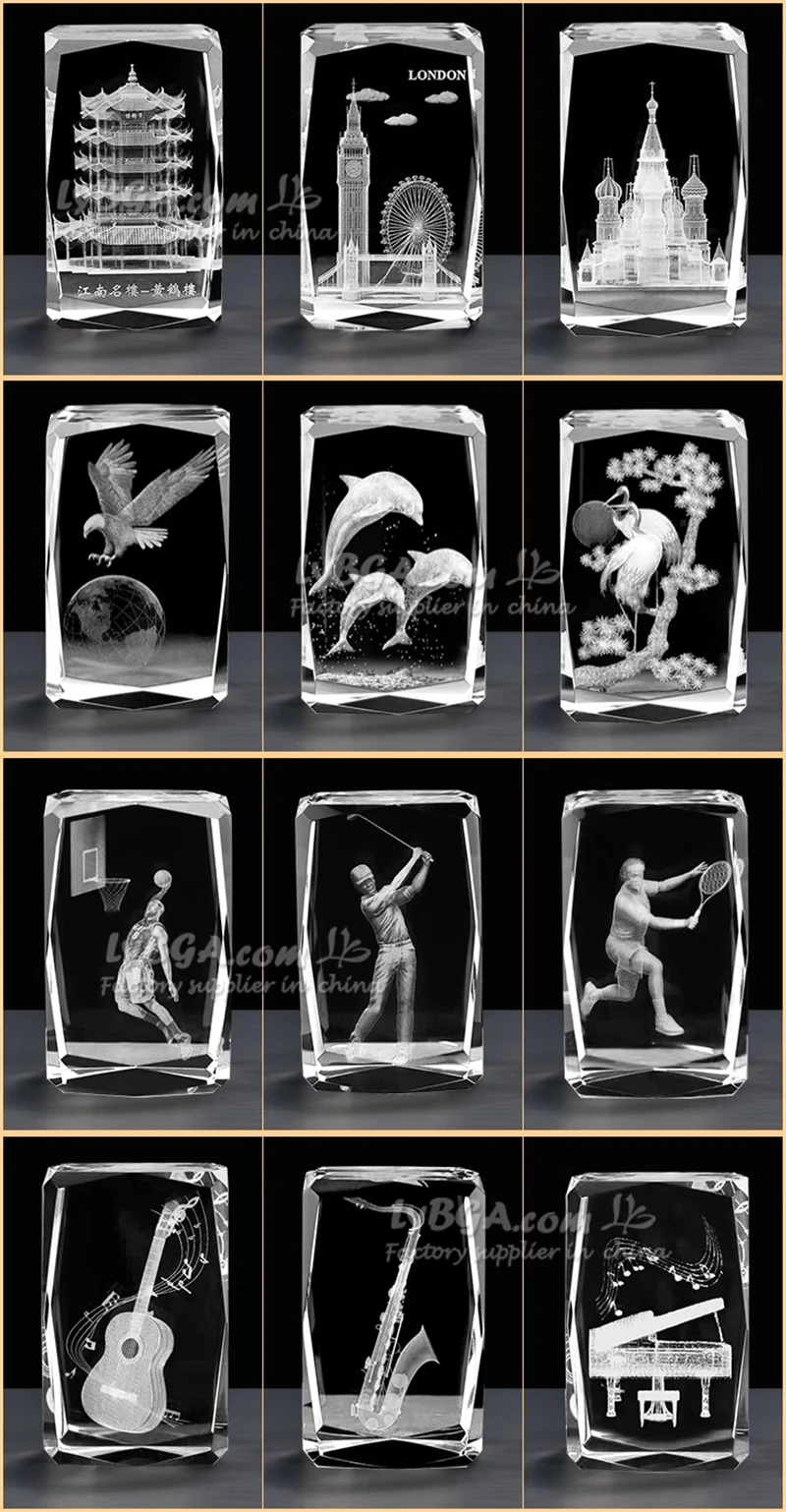

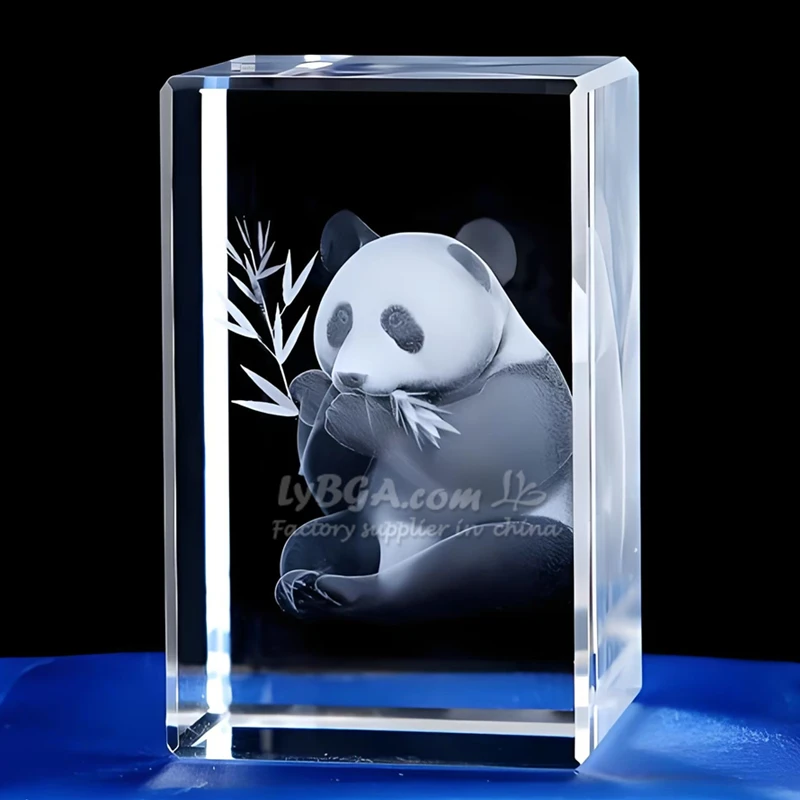

It can be widely used for internal carving of products such as crystals and glass, as well as surface marking of metal, non-metal and

other materials.

We can customize equipment for customers according to their needs.

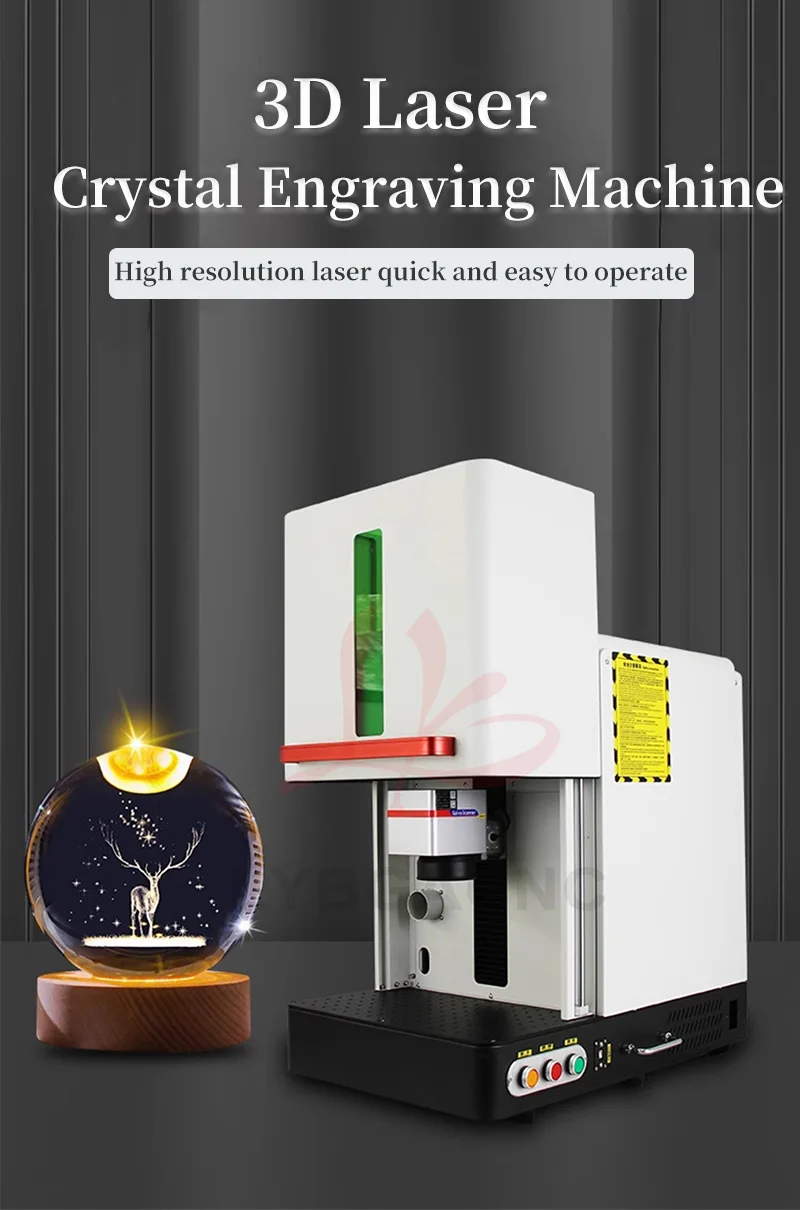

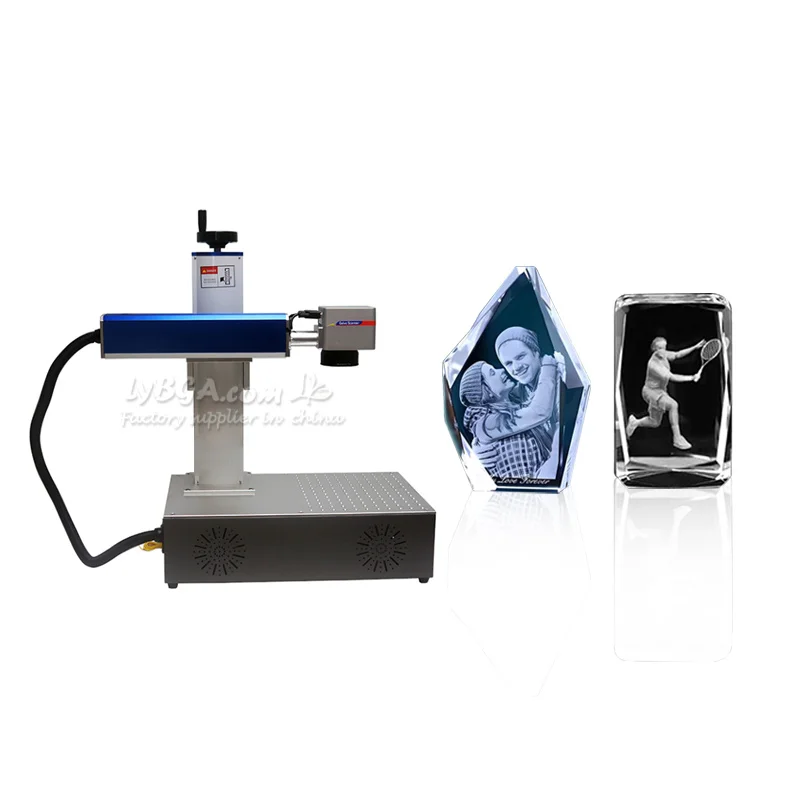

LY Laser Glass Crystal 3D Internal Carving Machine :

Power	5W /10W
Engraving area	70*70mm (Optional less than 110mm)
Wavelength	355nm
Beam quality	m2<1.2(TEMOO)
Laser output power	0-100% successive use
Align	Double Red point auto focus
Marking type	Dynamic/Static
Engraving depth	<=0.4mm
Engraving speed	<=10000MM/S
Minimum width	0.1MM
Minimum character	0.15MM
Pulsh width	13-82NS
Power stability	<+-2%RMS
Repeat frequency	20KHZ-150KHZ
Light diameter	<0.6MM
Marking speed	800 characters/second
Mini width	<0.005mm

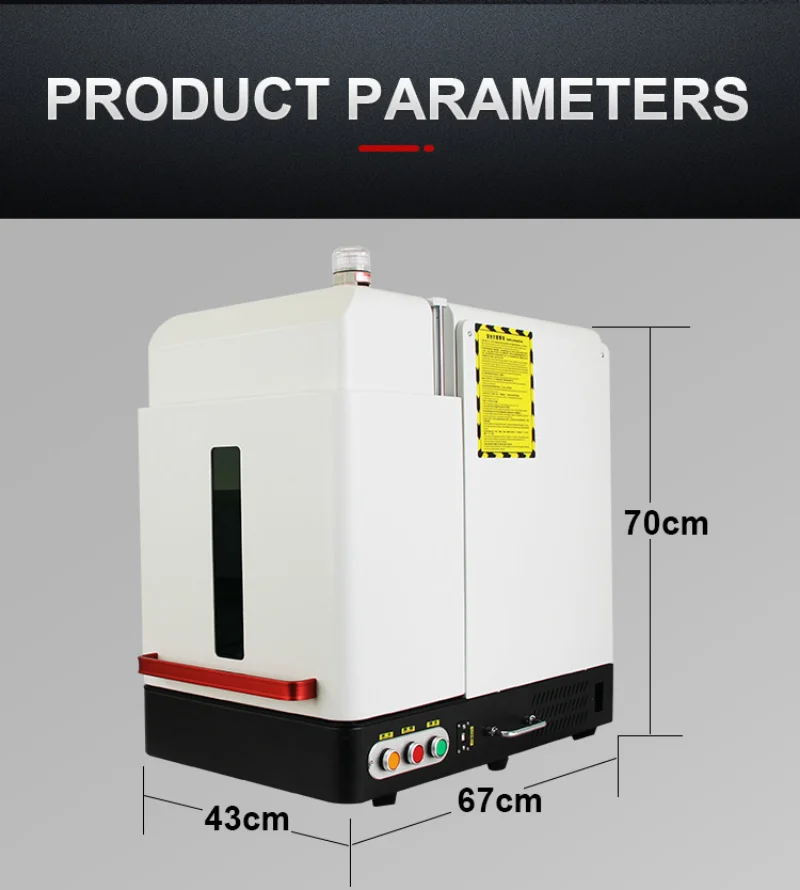

Out size	754746 cm
Gross weight	60~100KG
Laser head	Solid violet fiber laser (Brand: PulseX)

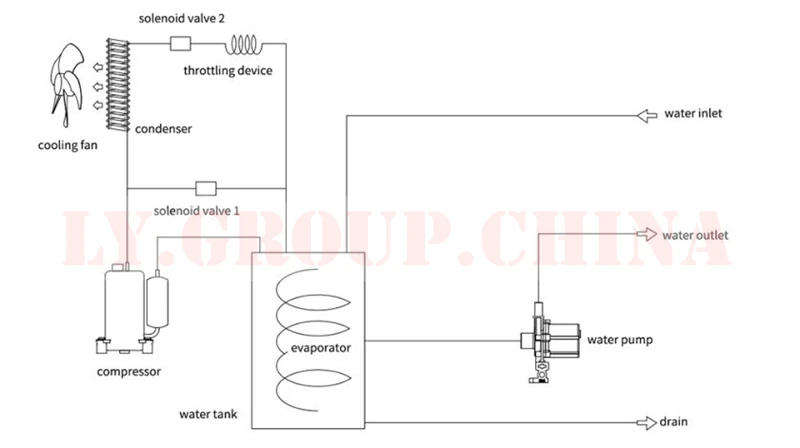

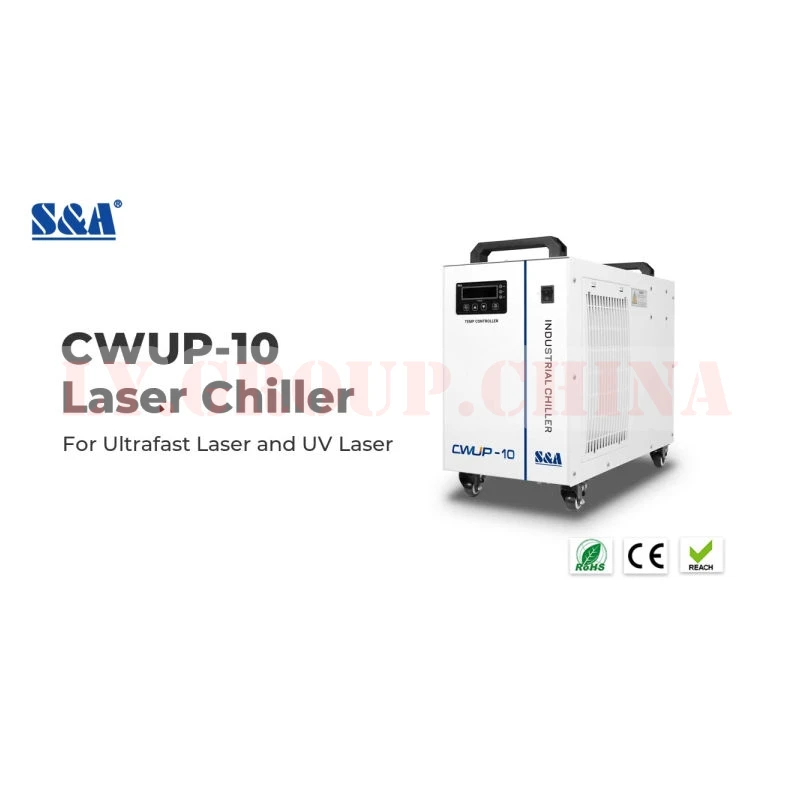

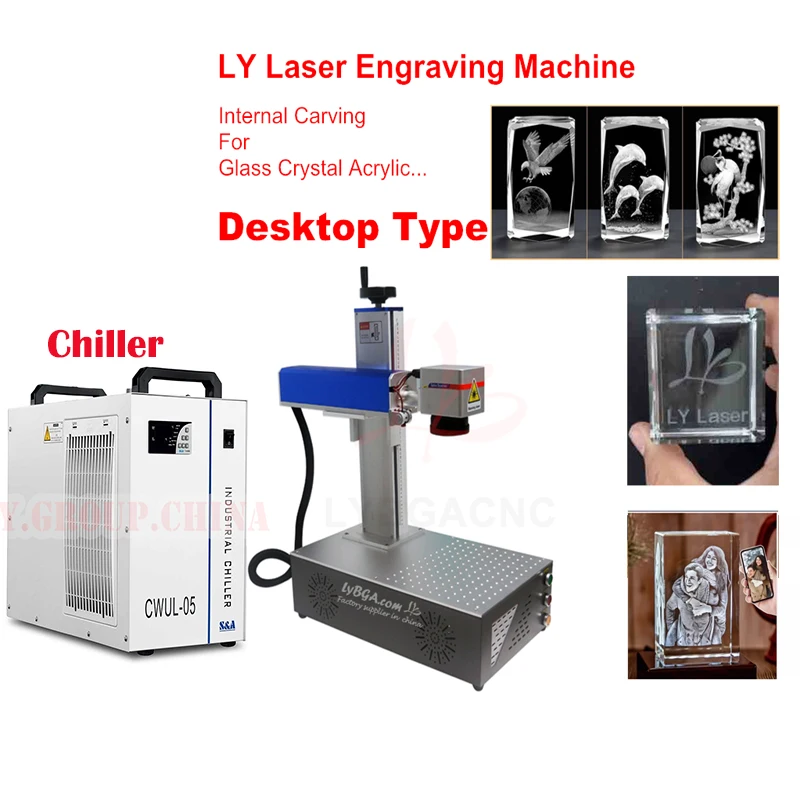

Cooling	Water cool
Work circumstance	Win XP
Connect way	USB
Power	220V / 110V
Laser module lifetime	50K hours
