1pcs-4th Axis 100mm 3/4 jaw ( Positive jaw and counter jaw )1pcs- Tailstock Movable and Changeable/Unchangeable Tailstock With Head100mm three/four ja...

More

Weight 9.8 KG

Sku ADAE1005008034250124

326.69 USD

384.29 USD

Out of Stock

Product Rating Product Details

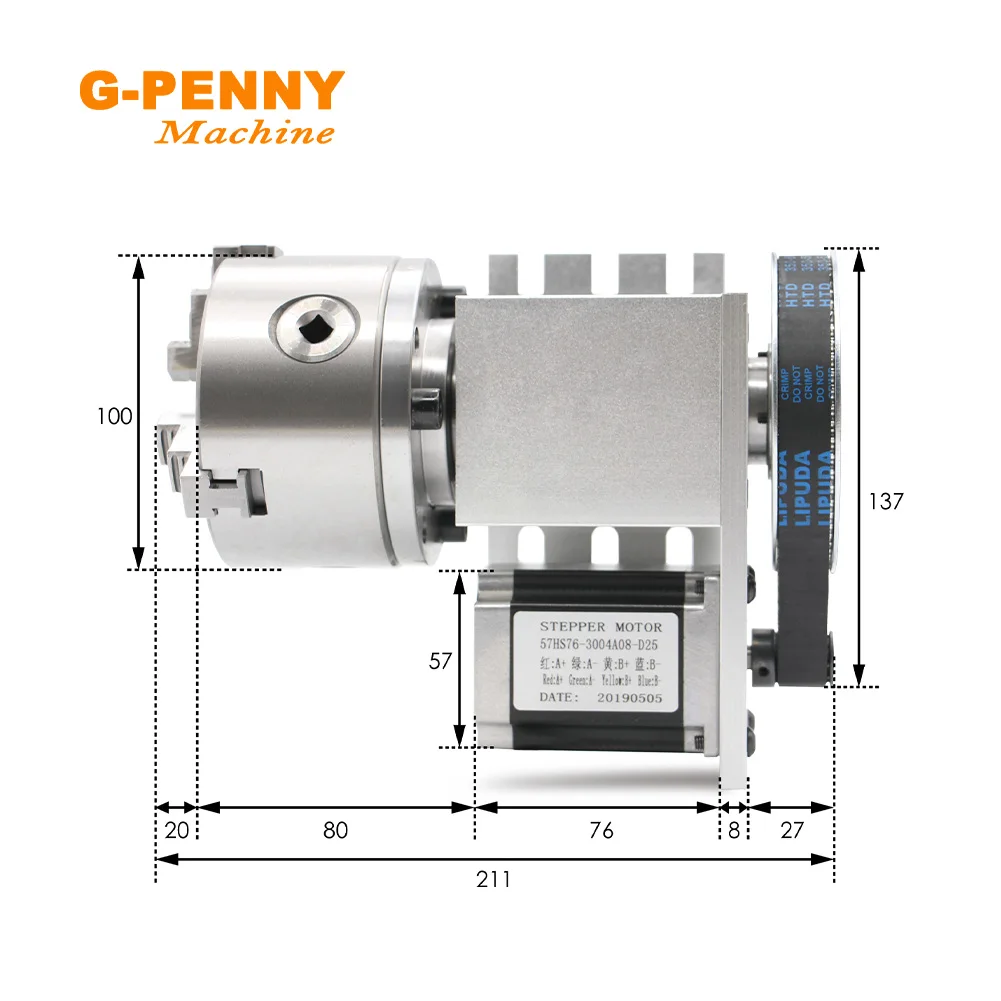

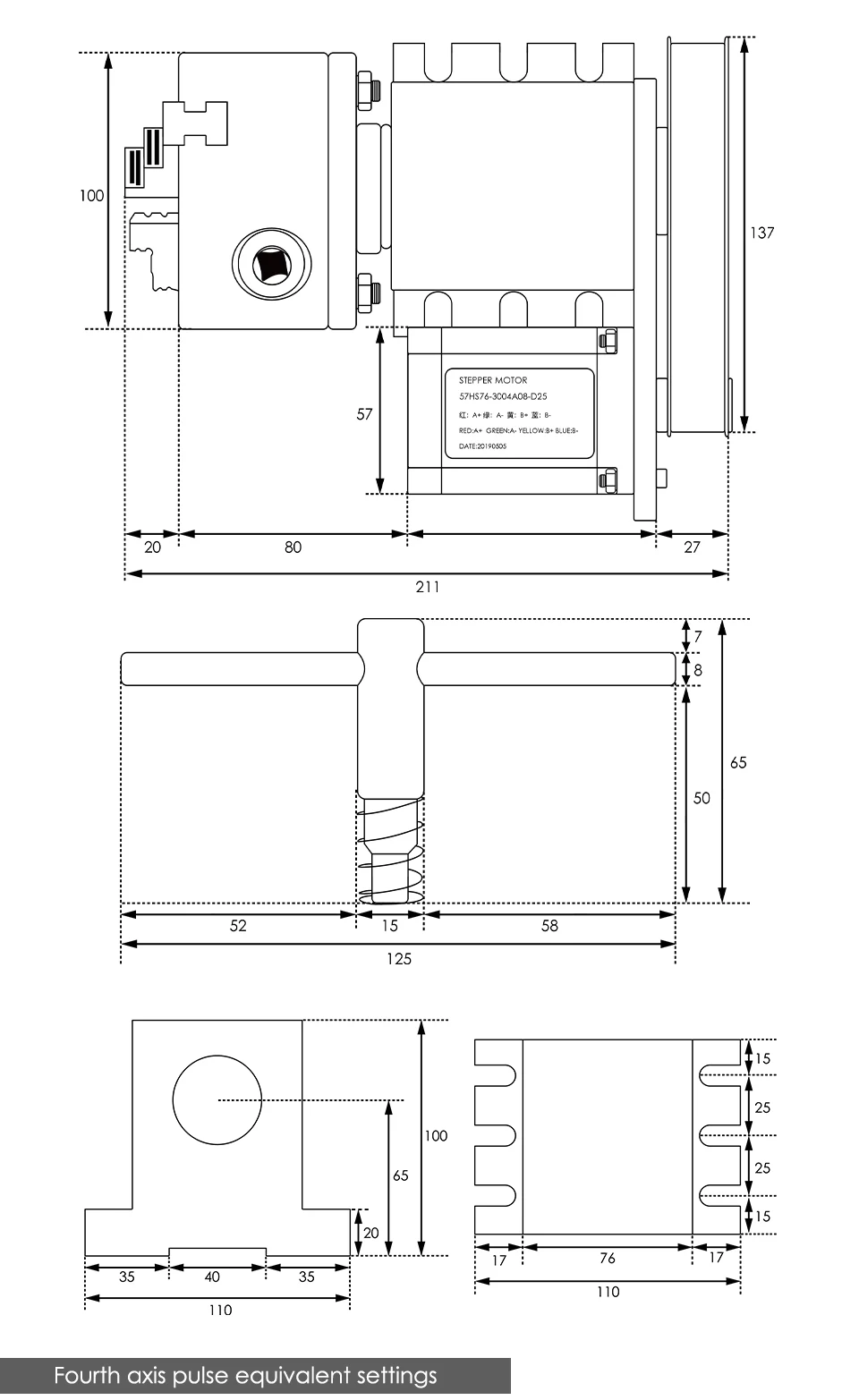

1pcs-4th Axis 100mm 3/4 jaw ( Positive jaw and counter jaw )

1pcs- Tailstock Movable and Changeable/Unchangeable Tailstock With Head

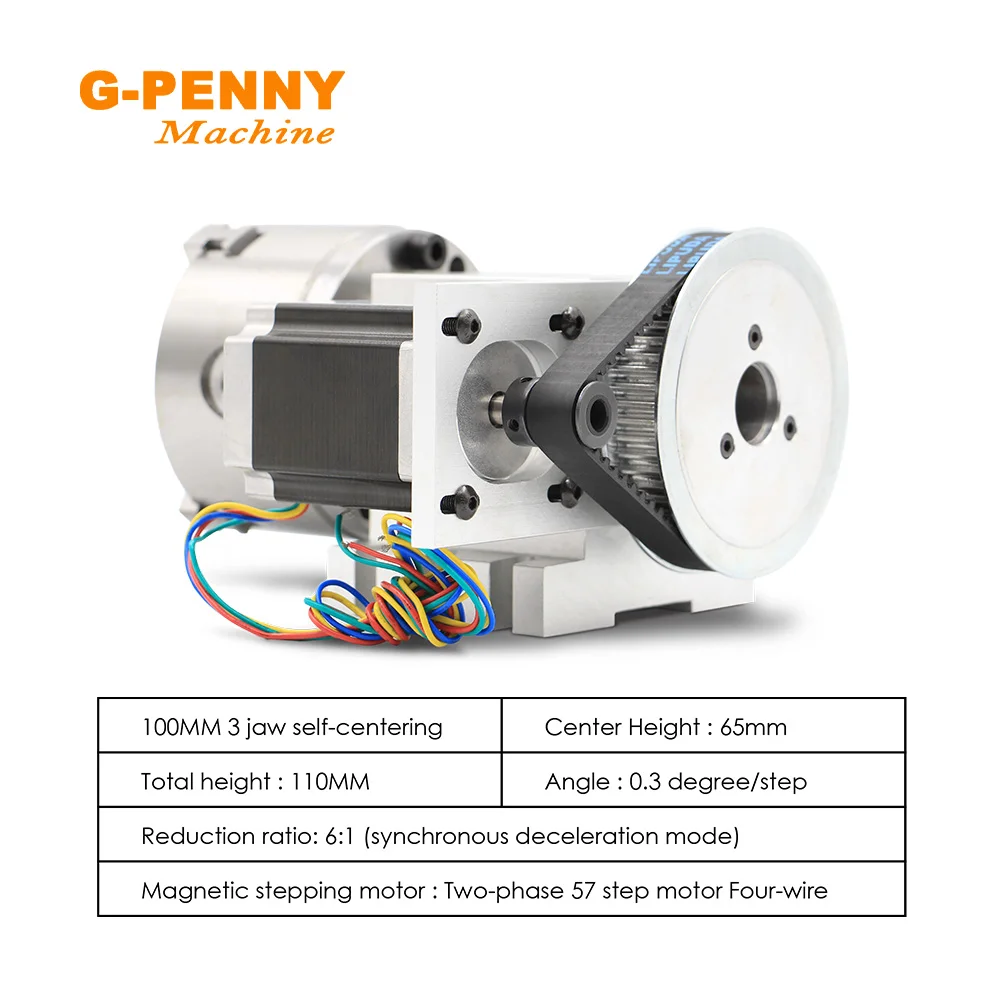

100mm three/four jaw self-centering chuck

Center Height 65mm

Total height, 110mm

Angle, 0.3degree/step

Reduction ratio: 6:1 (Synchronous deceleration mode)

Magnetic stepping motor: Two-phase 57 step motor four wire

The Mach3 system settings: the pulses for 1 required:

( the motor 1 Circle of pulse number × the drive of subdivision number × reduction ratio) ÷ 360 degrees

For example, the two-phase 57 motor, the ubdivision number 16, the reduction ratio 50:1

(200 × 16 × 50) ÷ 360 = 444.44444444)

Ncstudio system settings: the angle of a pulse walking:

360 ÷ (the motor 1 Circle of pulse numberr × × the drive of subdivision number × reduction ratio)

For example: the two-phase 57 motor, the breakdown of the number 16, reduction ratio 50:1

360 ÷ (200 × 16 × 50) = 0.00225

X or Y axis instead of the algorithm is:

Circumference ÷ (the motor 1 Circle of pulse numberr × × the drive of subdivision number × reduction ratio)

Engraving different sizes of round bars, equivalent needs to be set.

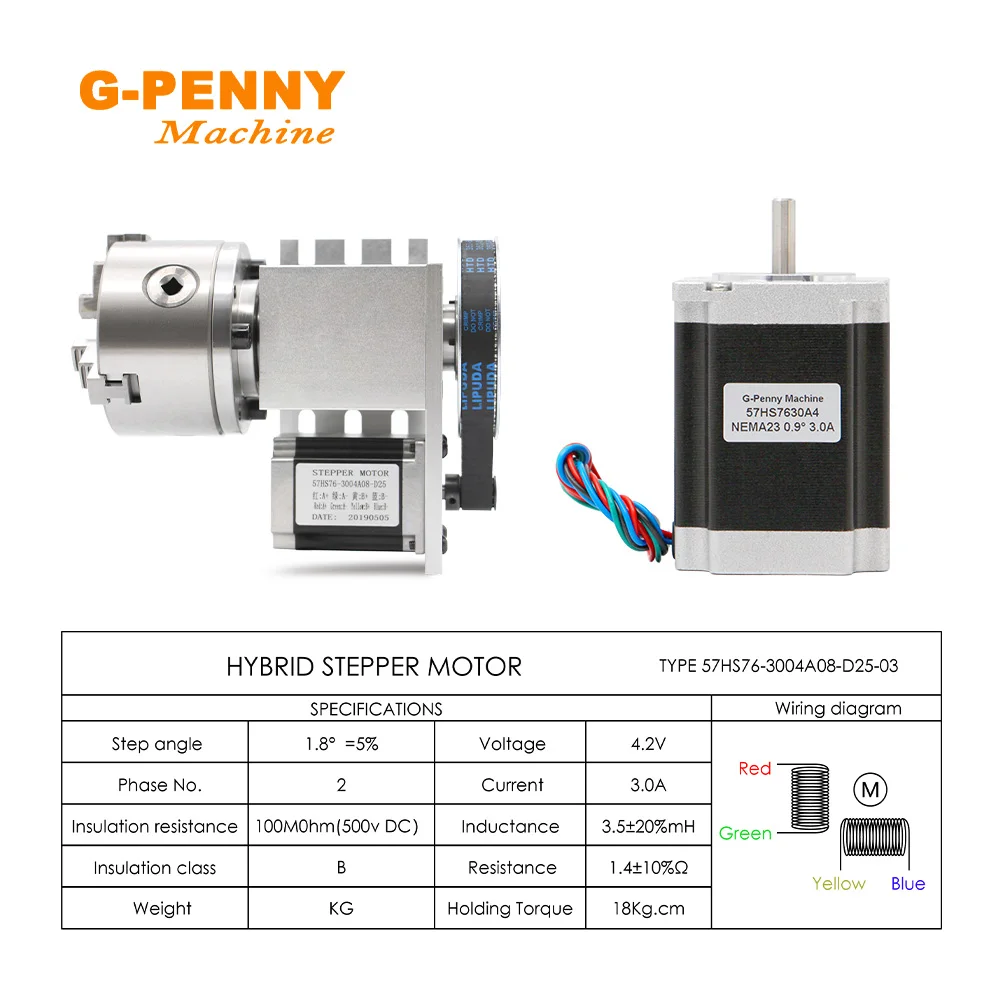

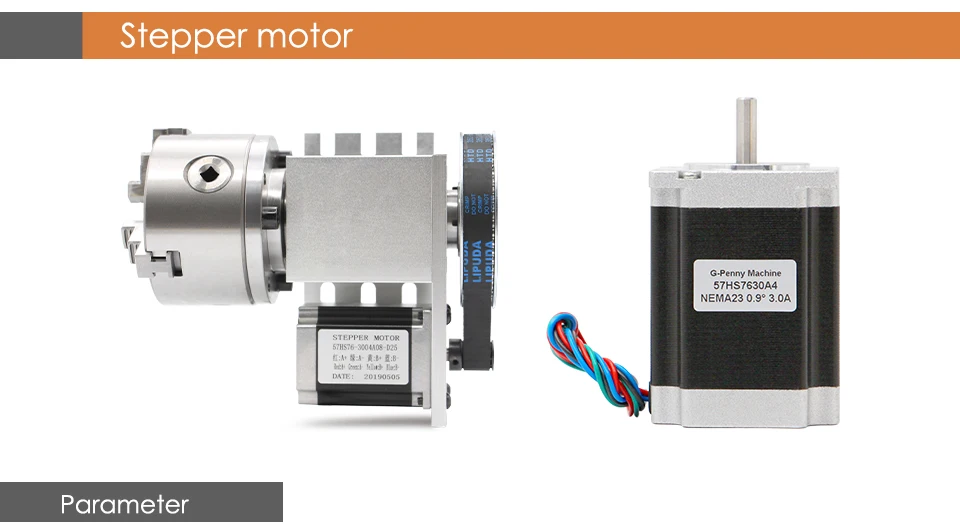

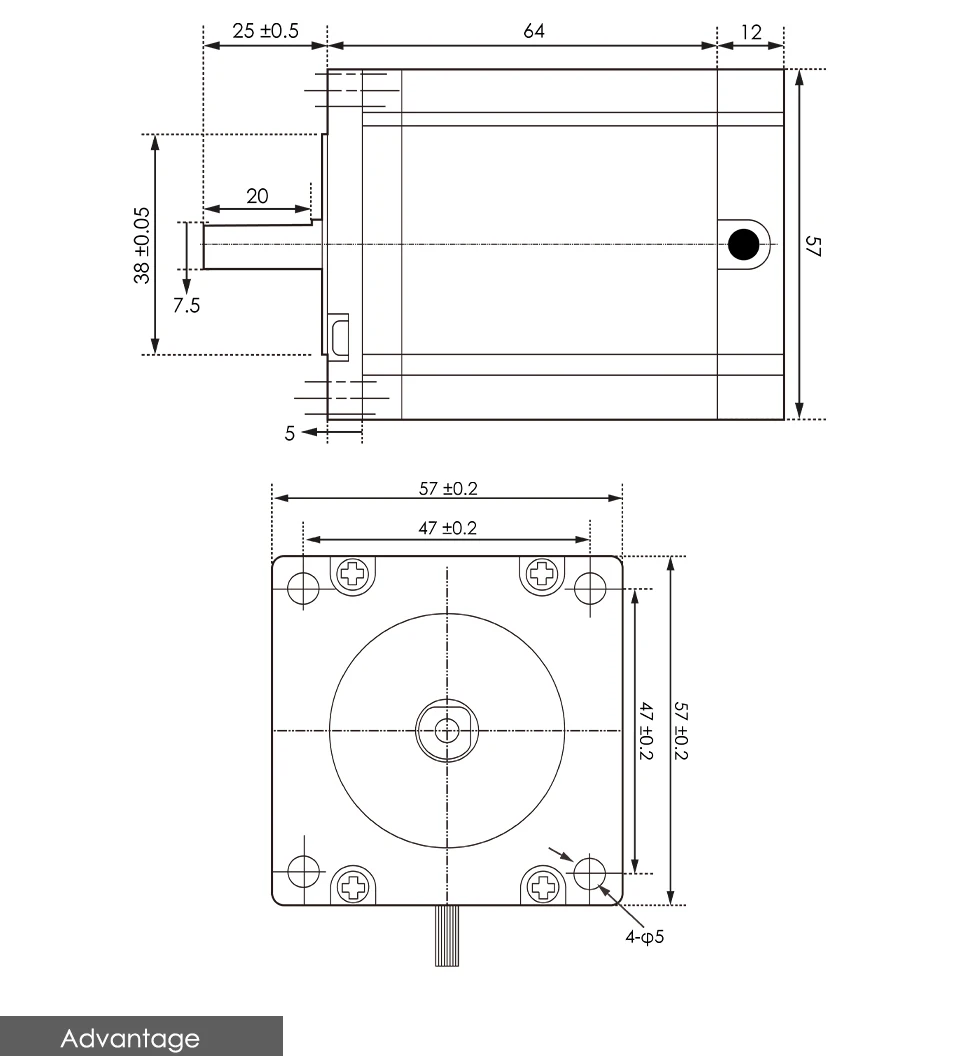

Nema 23 57*76mm

Shaft Diameter: 8 mm

Shaft length: 25.5mm

Step Angle:1.8

Current: 3A

Voltage: 4.2V

Temperature Rise :80 c max

Ambient Temperature:-20 c--+50 c

Phase No. : 2HP

Holding Torque: 18kg.cm

Insulation Resistance: 100MOhm(500V DC)

The magnetic steel is high grade,we usually use the SH level type.
The rotor is be coated,reduce burrs,working smoothly,less noise.
We test the stepper motor parts step by step.Stator is be test and rotor is be test before assemble.
After we assemble the stepper motor, we will do one more test for it, to make sure the quality is good.

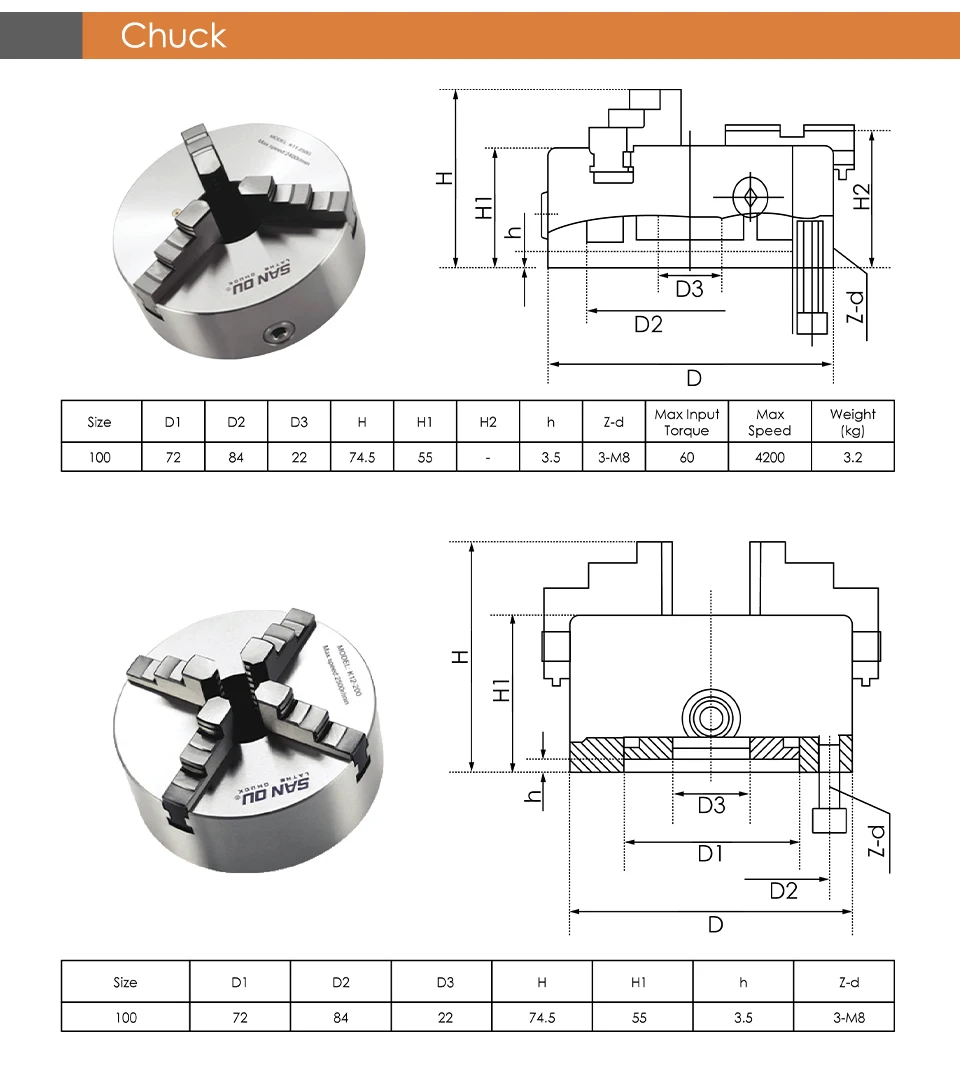

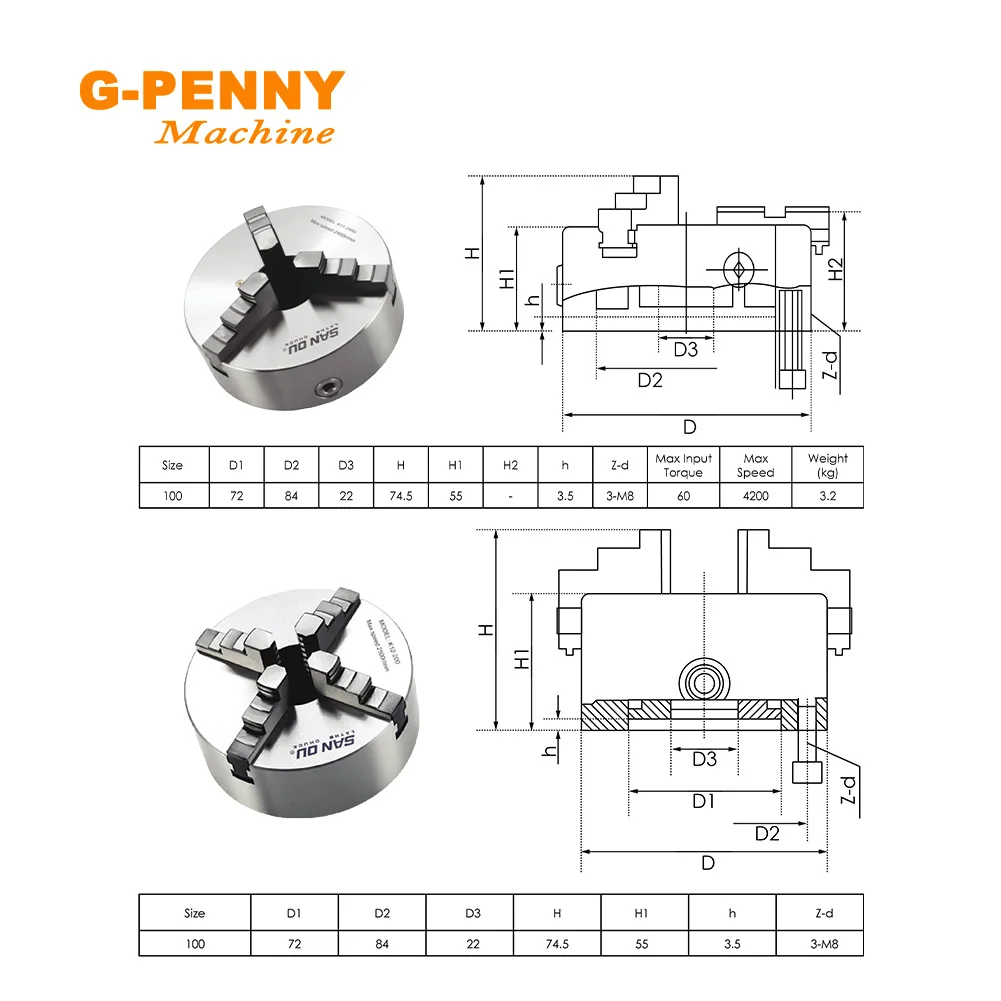

1.Short cylindrical center mounting.

2.Model K12 chucks are provided with one-piece.Jaws(which include a set of intermal jaw and a set of external ones).

3.The jaws for K12A.K12C and K12D chuck are composed of two-piece jaws. They can perfrom as either internal jaws through adjustment.

4.The jaws for K12A and K12D chucks conform to ISO3442 standard.

5.Model K12C chucks are supplied with traditional two-piece jaws.

6.We can provide all kinds of soft jaws.

7.As requested, we can provide chucks mounted from front.

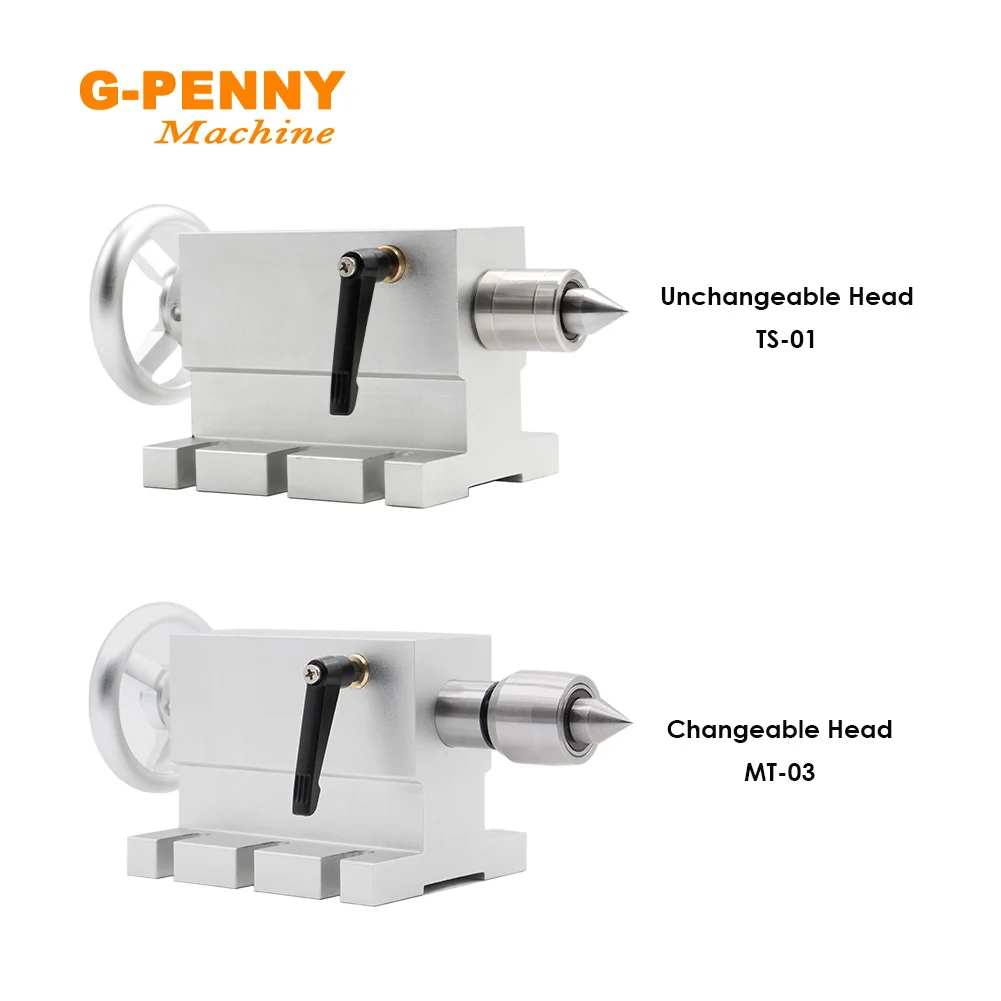

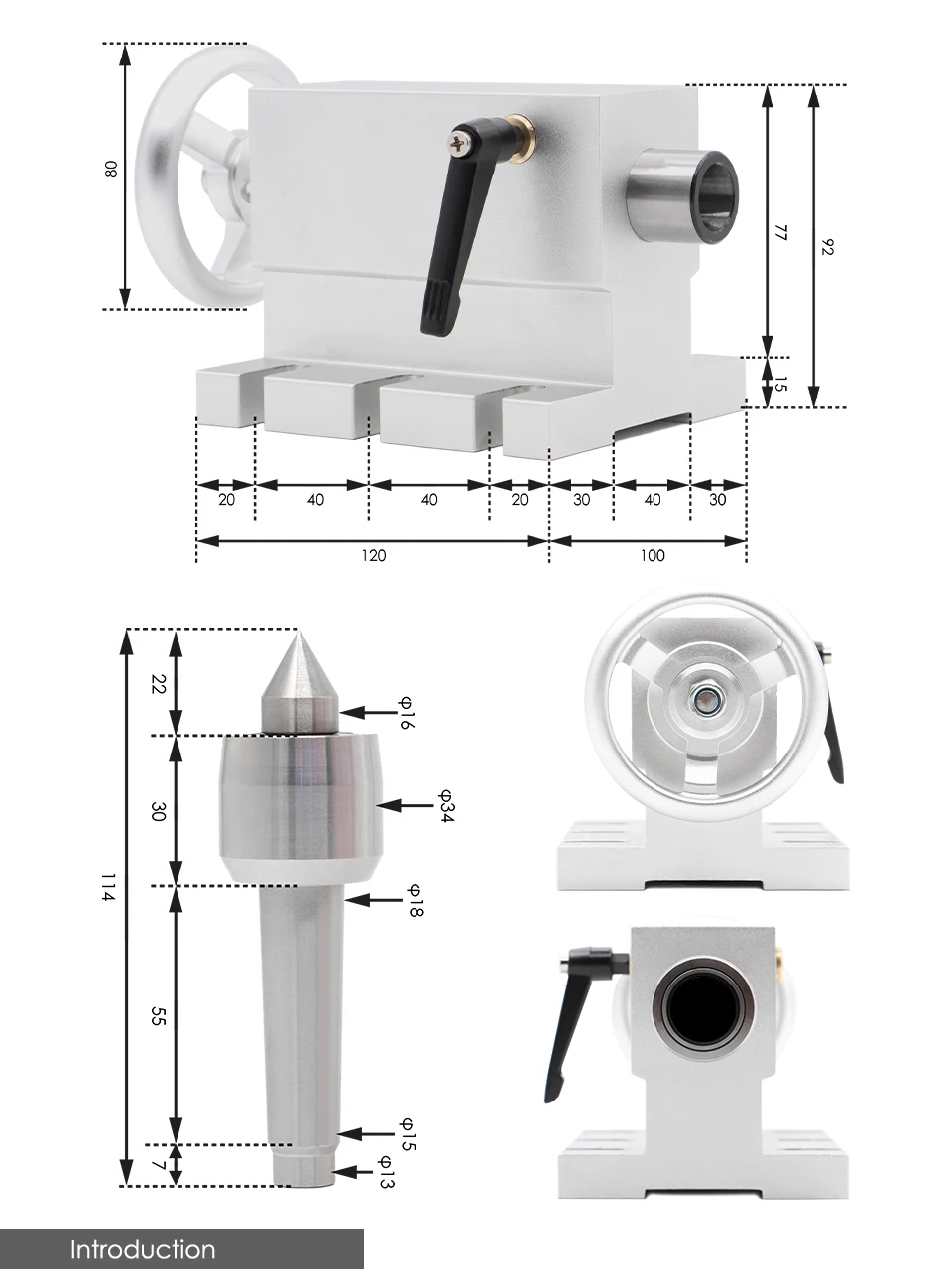

Tailstock type : MT02 (One Head)

Center Height: 65mm

Stretch distance:50mm

Axial locking wrench for tailstock

The tailstock is our new design , which has one heads. These heads could be moved and replaced. You can change the head according your require.
The tailstock has a wrench with axial locking, it will fixed the tailstock, and help it work well.

Our shop sells different heads, you can find them in the Tailstock categories.(Click to enter the link)

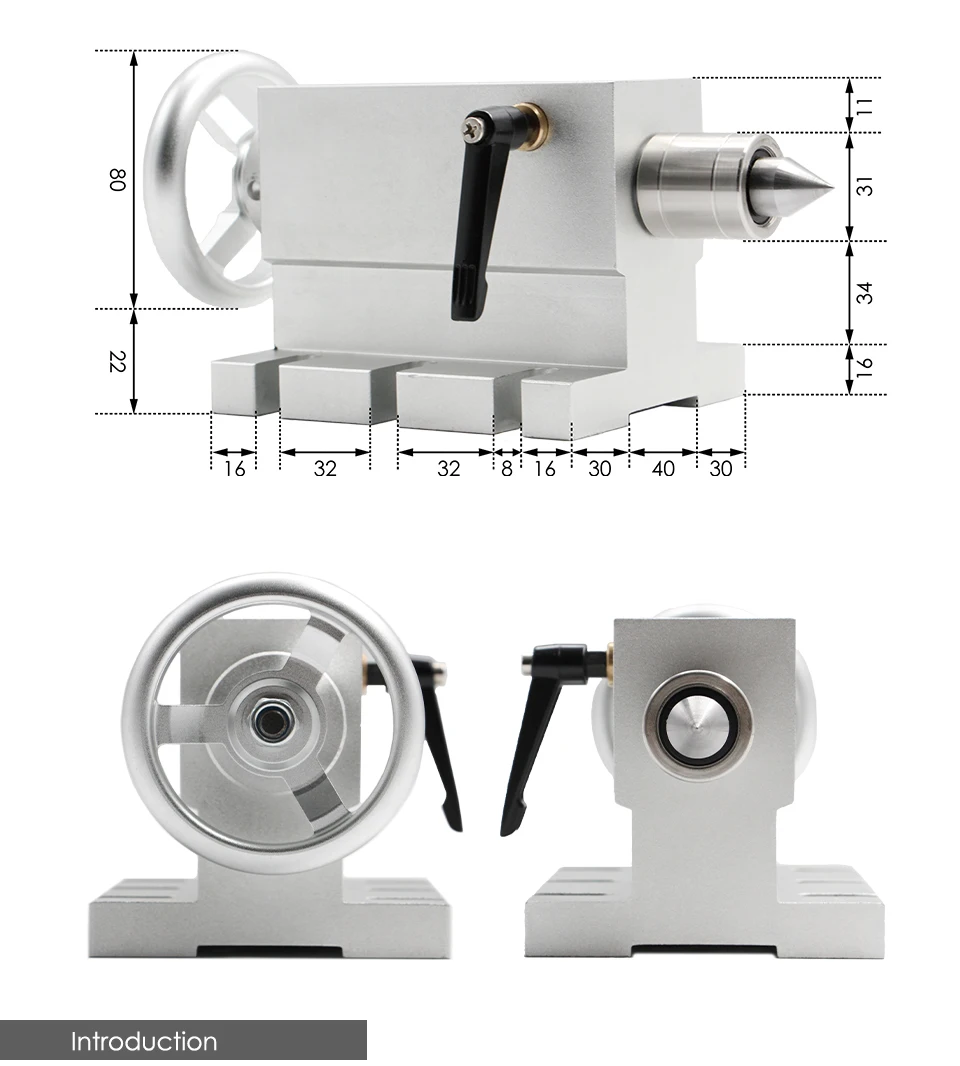

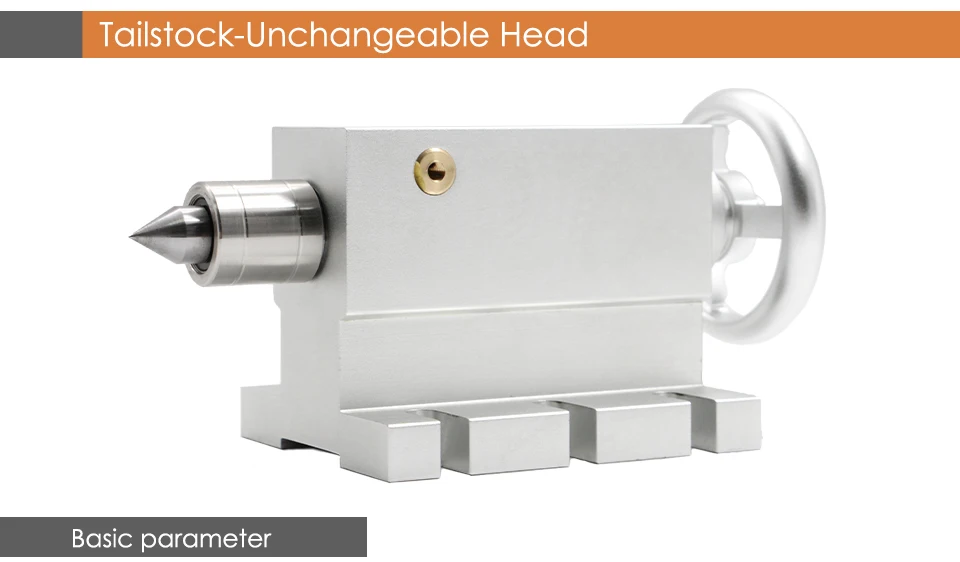

Tailstock type : TS01 (One Head)

Center Height: 65mm

Stretch distance:50mm

Axial locking wrench for tailstock

This tailstock can not change the head, the tailstock has a wrench with axial locking, which can fix the tailstock and help it work normally.

It is recommended to use a tailstock that can replace the head.

We have a separate head for sale.
