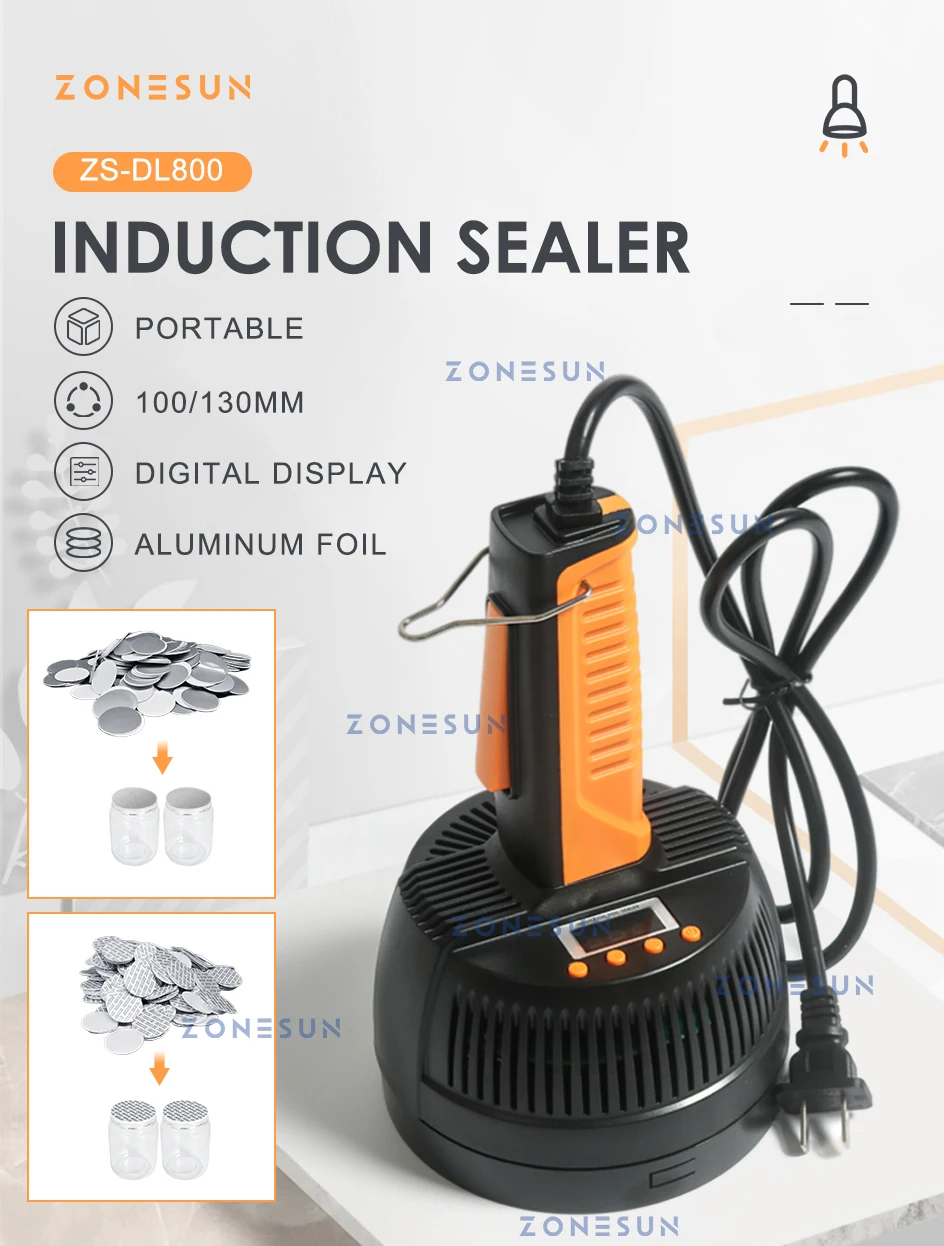

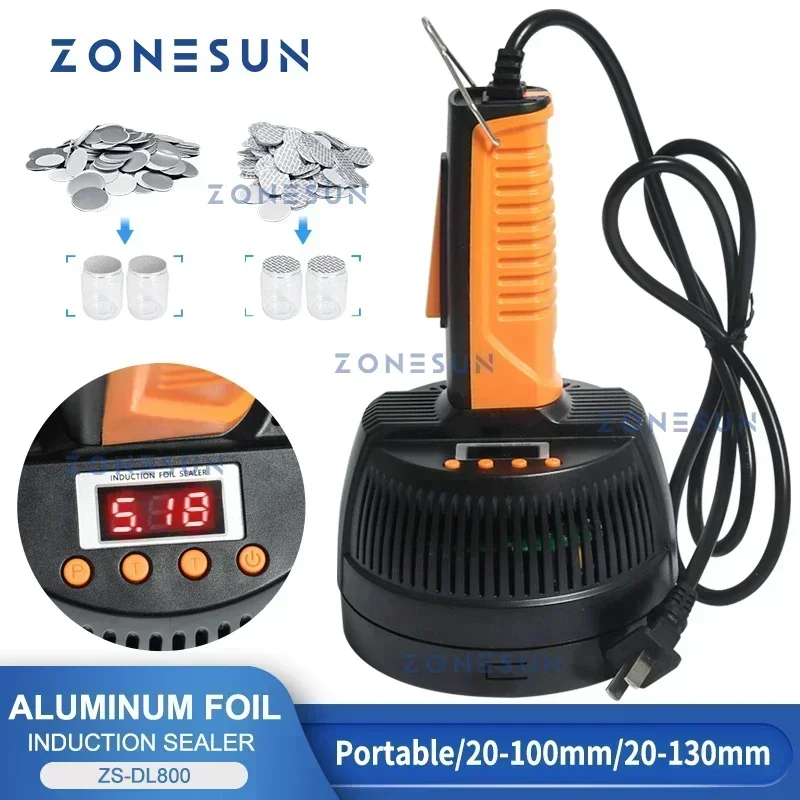

Name: التسليم المحلي ZONESUN ZS-DL800 يده التعريفي السدادة 800-1200 واط قابل للتعديل لزجاجات φ20-130mm
SKU: التسليم-المحلي-zonesun-zs-dl800-يده-التعريفي-السدادة-800-1200-واط-قابل-للتعديل-لزجاجات-20-130mm/p1102527303
Price: 87.19 SAR
Availability: InStock

Product Rating Product Details

ATTENTION
It adopts electromagnetic induction.
Do not use it on a metallic lid .
Do not place it on a metallic surface in a power-on state .

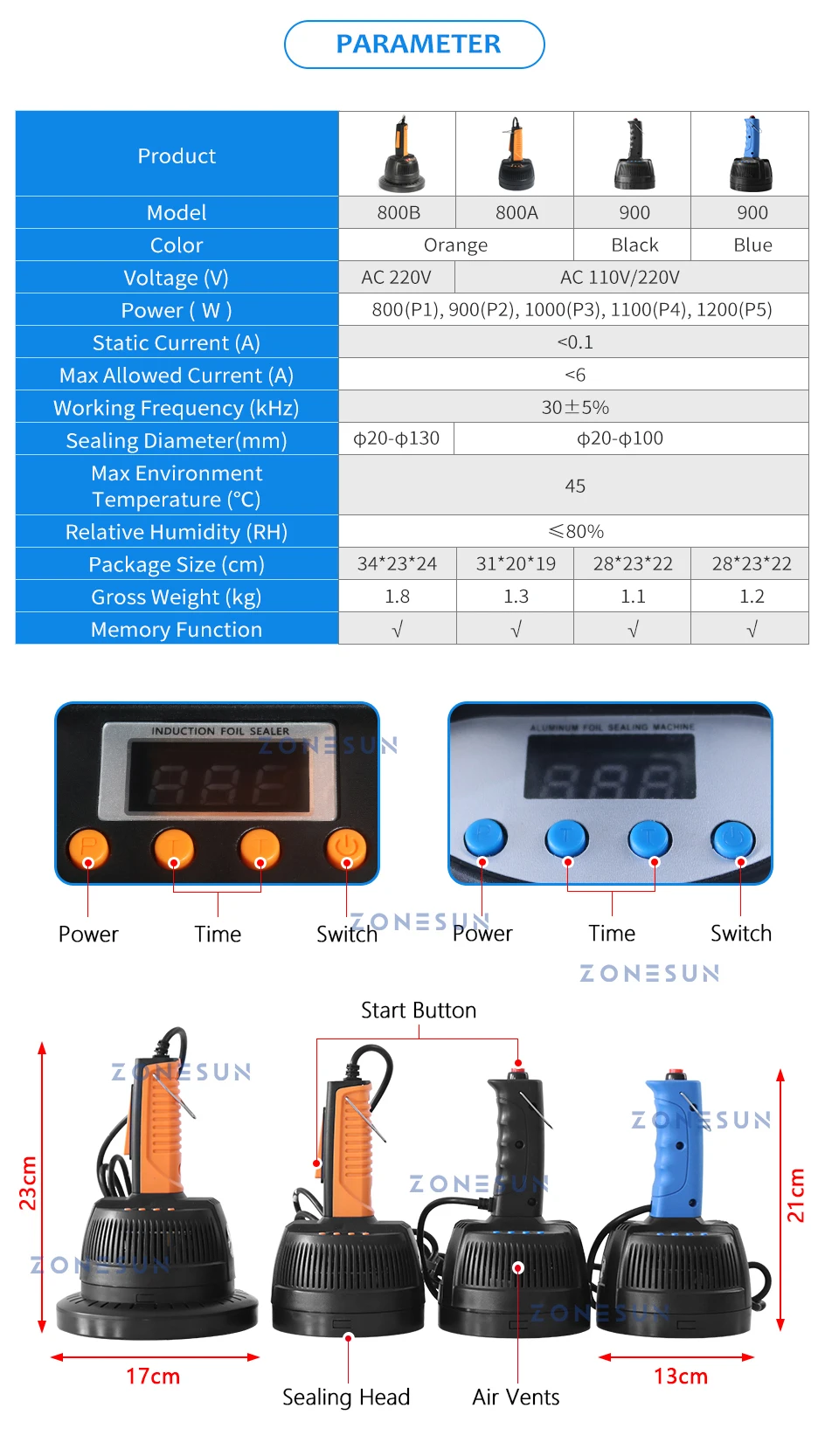

PARAMETER

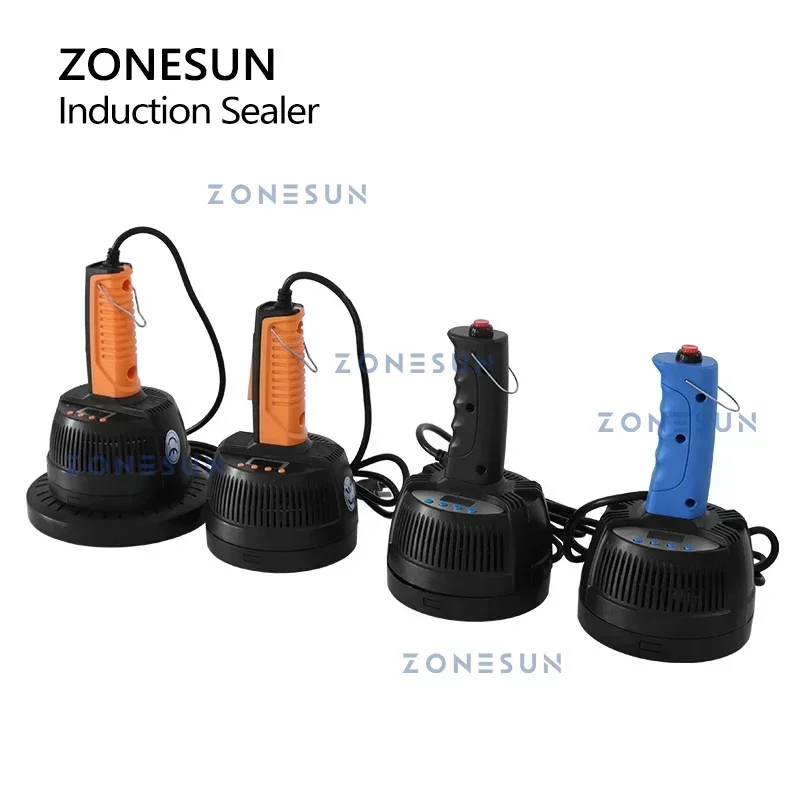

Model	800B	800A	900	900

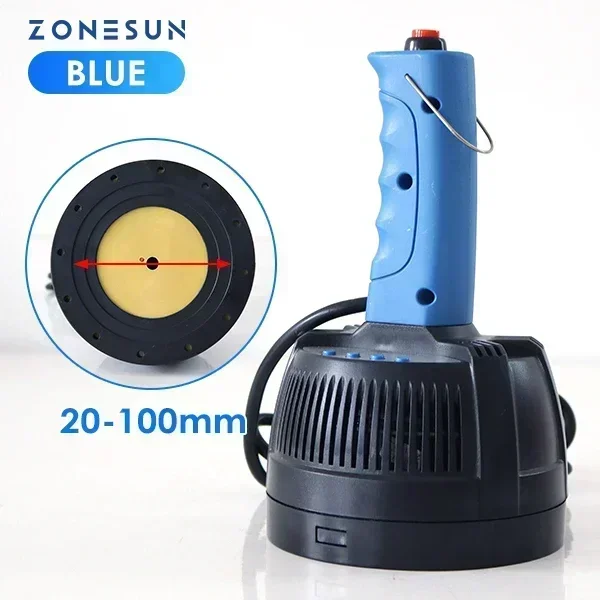

Color	Orange		Black	Blue
Voltage (V)	AC 220V	AC 110V/220V

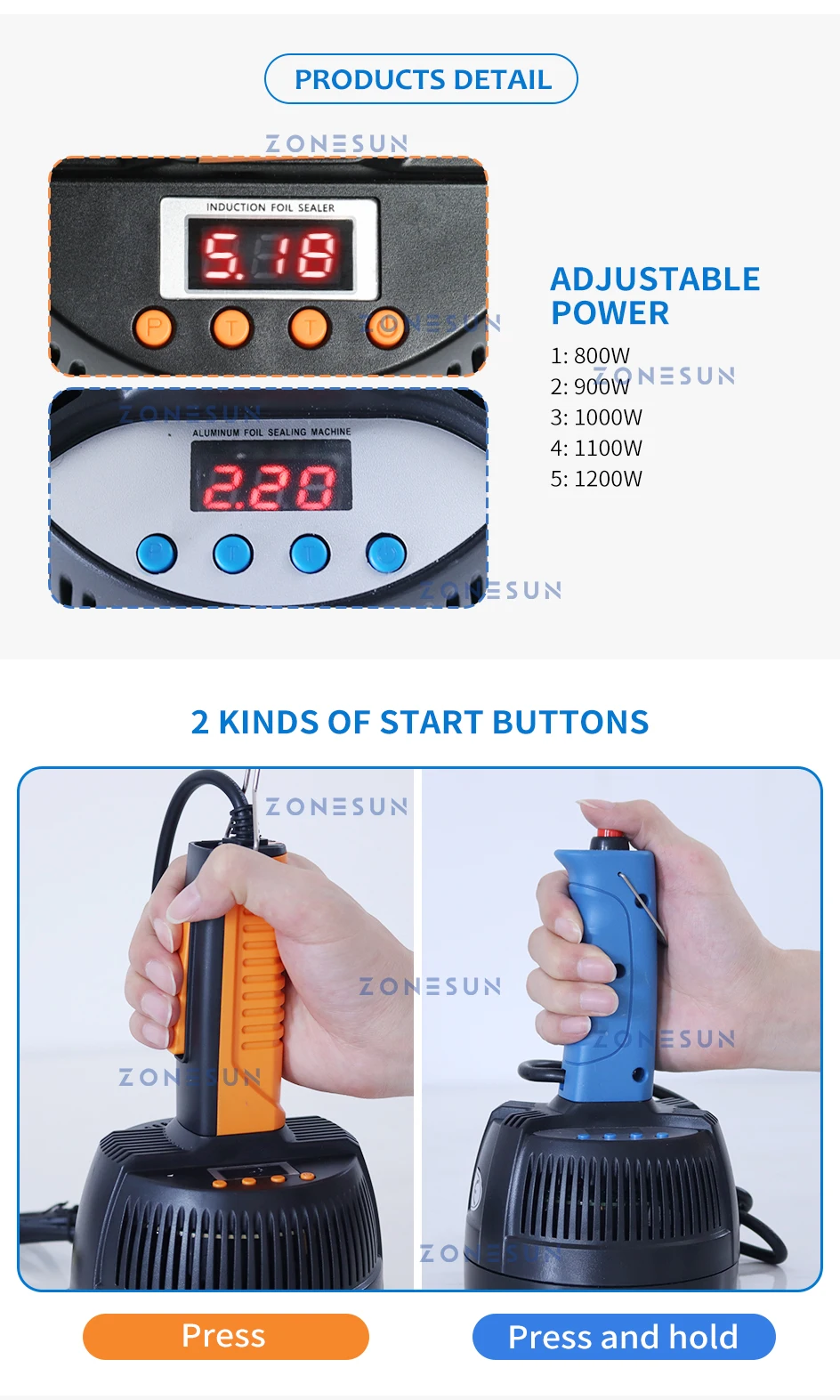

Power (W)	800(P1), 900(P2), 1000(P3), 1100(P4), 1200(P5)
Static Current (A)	<0.1
Max Allowed Current (A)	<6
Working Frequency (kHz)	30±5%

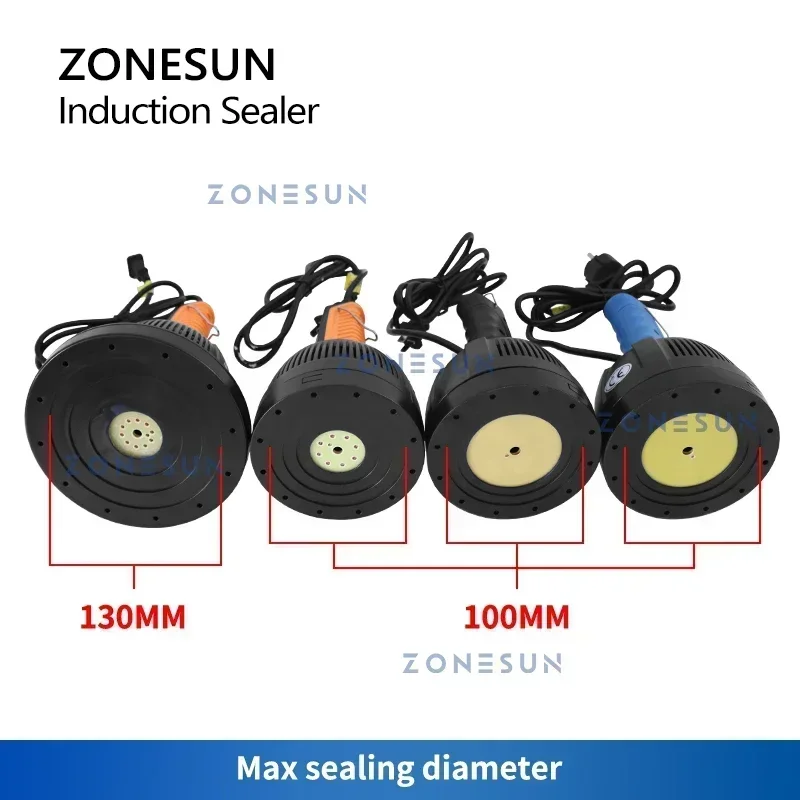

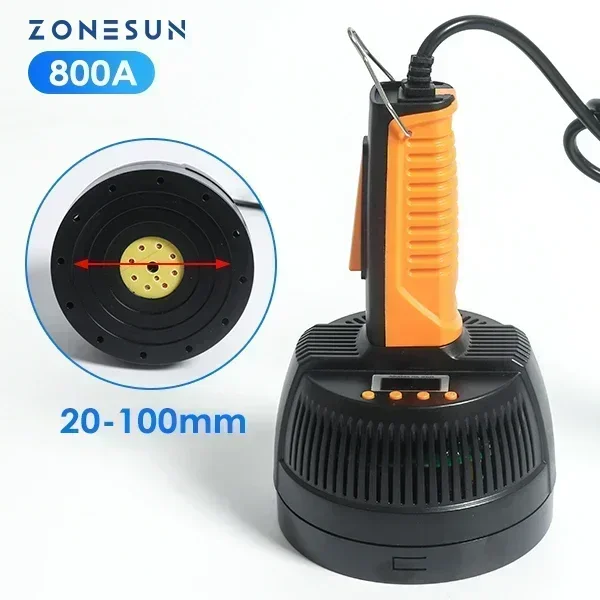

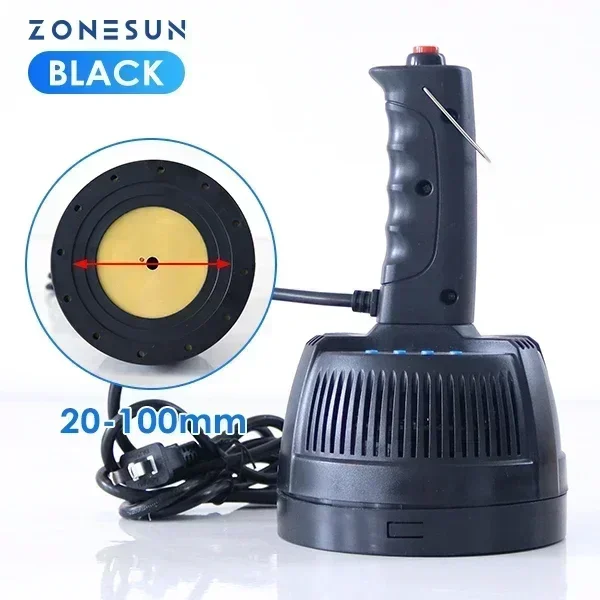

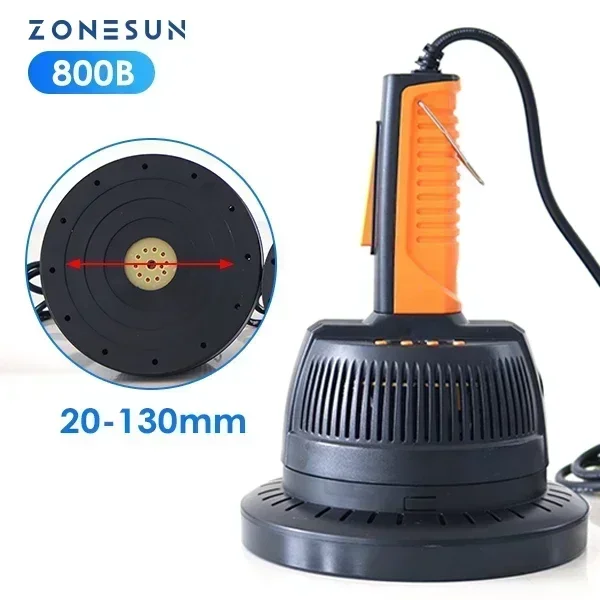

Sealing Diameter(mm)	φ20-φ130	φ20-φ100
Max Environment Temperature (℃)	45
Relative Humidity (RH)	≤80%
Package Size (cm)	342324	312019	282322	282322
Gross Weight (kg)	1.8	1.3	1.1	1.2
Memory Function	√	√	√	√

REFERENCE

Diameter of the seal	Sealing Time
20mm	1.5s
48mm	1.2s
69mm	0.6s
80mm	0.4s

When the diameter is smaller than 30mm, set the power to a high level to improve the speed.
When the diameter is bigger than 60mm, set the powder to a low level for a better seal.
When the diameter is bigger, the time is shorter. There is no fixed time and power. Users need to find the right one by test.
