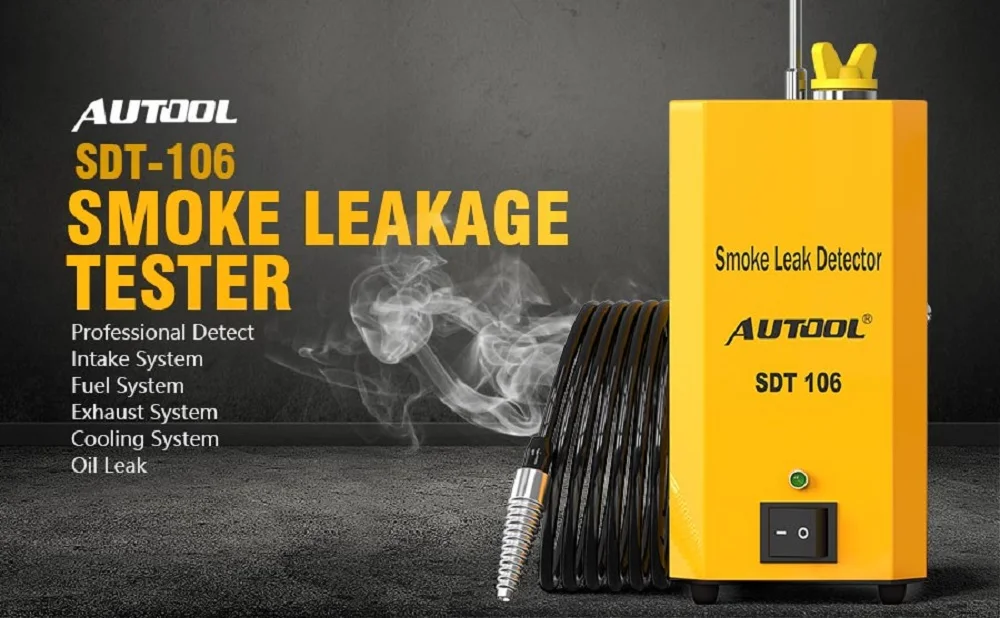

SDT-106 is designed for detecting the leakage of pipe systems on cars, motorcycles, trucks such as fuel pipe, air intake system and cooling tank. SDT-106 is for all pipe systems, including EVAP.
WHAT IS EVAP?
EVAP is a fuel evaporation control system used to collect and deal with fuel vapor, to prevent fuel vapor leakage. If the leak will pollute the atmosphere and even cause the vehicle to spontaneous combustion.
Plus this set of accessories can detect the smoke of the EVAP system, check whether there is leakage, broken, enhanced traffic safety.
Cautions:
With longtime high temperature, the smoke and oil will oxidize and deteriorate. It will infect the ser-vice life of smoke generated part, so please change smoke and oil regularly.
1.When you use this detector the first time, please fill 20-30ml oil, not beyond this range.
2. When the smoke output has water drops, please replace with fresh oil.
3. Before filling fresh oil, please pour out the remaining oil in the detector.
4.Liquid paraffin and baby oil are OK.
Please fill fresh oil with equipped oil bottle.
Product Information:
Power: DC12V, vehicle battery
Smoke output value: 6l/min
Built-in air supply
Controllable flow value
How to use:
1.Open the engine cover, and hang the detector in the cover.
2.Disconnect the pipe that needs to be connected with detector. If the pipe needs to be disconnected in the middle. Please secure the other side with a rubber stopple.
3.Secure this side with proper taper stopple/pipe, and connect it with smoke output tube.
4.Connect detector with DC12V battery: red with positive, black with negative. Do not connect in a contrary way.
5.Turn on the power switch, and detector starts to work.
6.In about 3 minutes, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary.
7.After leak detection, please connect well the wires and pipe.
8.Notes:
* Please do leak detection away from smoke-sensitive parts.
* Do not run the detector over 8 minutes. It needs interval rest.
* The detector has protector. If it exceeds working limit, it will power off automatically. In this condition, please operate it later.
* The round parts of this detector is with temperature, be careful to avoid scalding injury.
