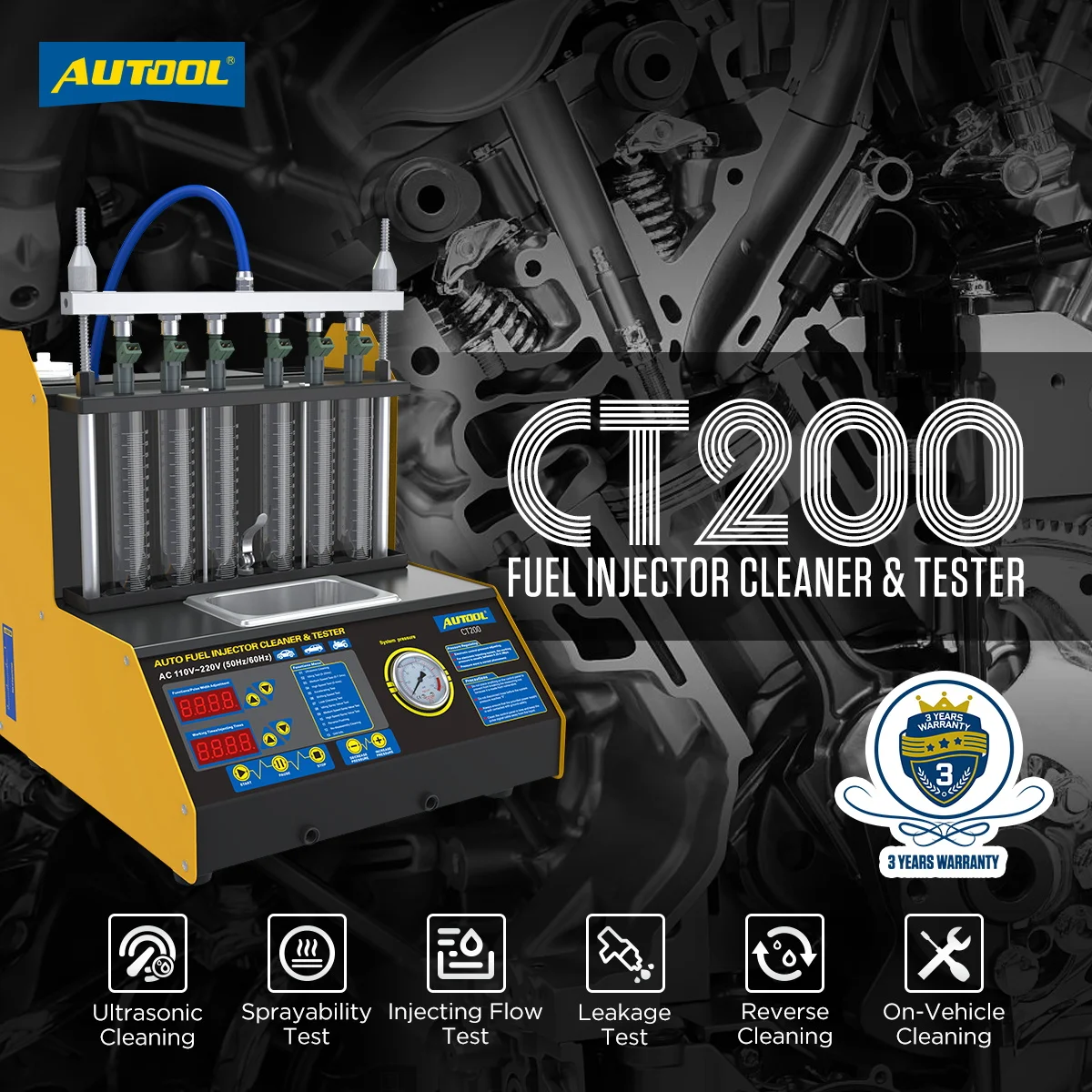

FUNCTIONS:
1.Ultrasonic cleaning , dismantle the carbide of the injector;
2.injector test. stimulate engine runing condition, test injector in different speed range,Check and test injectors's injection situation:atomization/sprayingangle/spraying mount/spraying uniformity;
3.leakage and block test;
4.Uniquely designed various compound bonder for all kinds of side-inlet injectors;

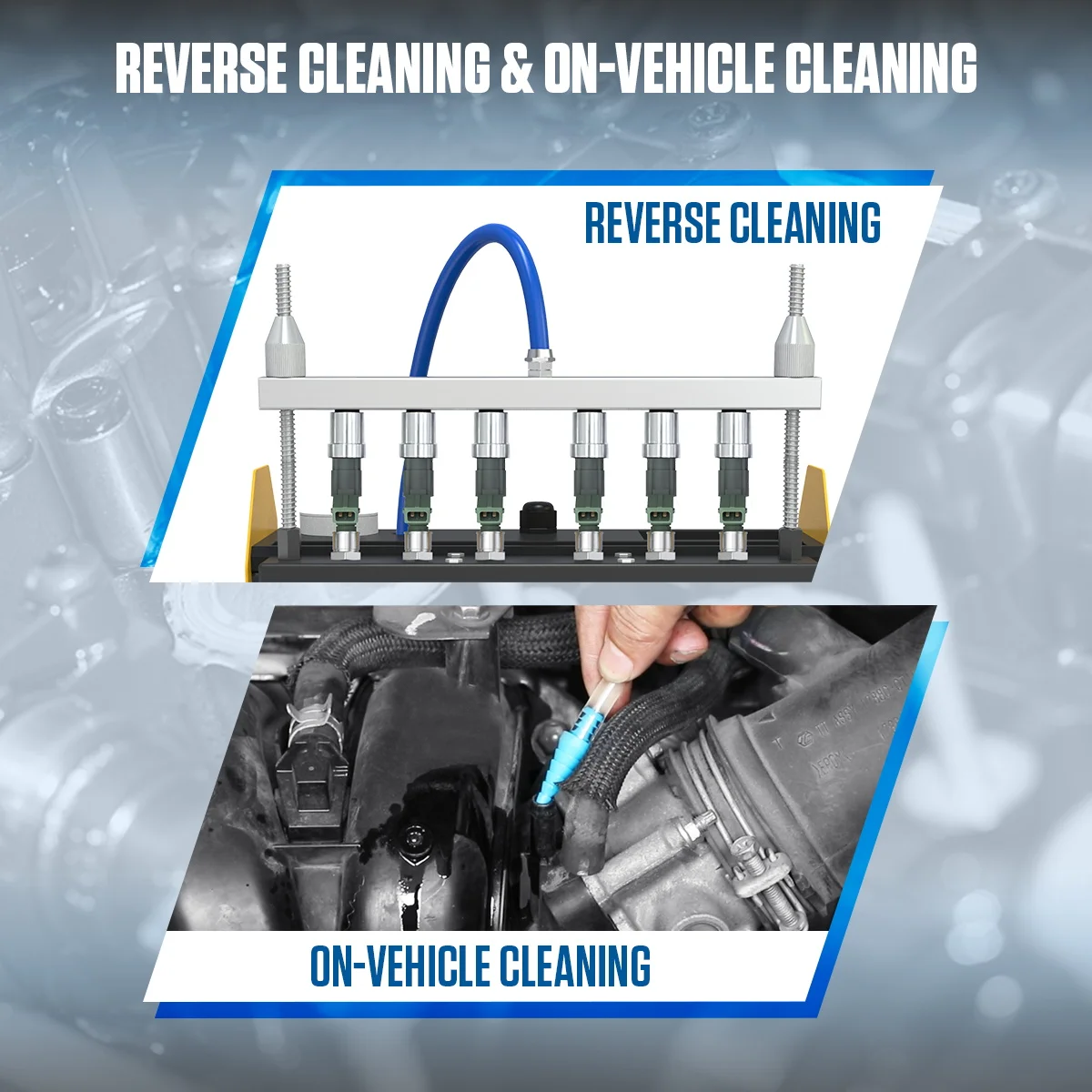

5.With reverse flush function, to clean inside out, to improve clean efficiency;
6.With a set of adaptors to clean injectors without dismantling it from the engine;
7.Support reverse injector test.
SPECIFICATIONS:
Turning speed range: | 0~7500r/min |
Timing pulse iength: | 0~9900times/step length 100 |
Pulse iength: | 0-20ms step length 0.1ms |
Timing: | 0~10min |
System pressure: | 0~0.6Mpa |
Ultrasonic cleaning power: | 70W |
Power supply: | AC220+-10% 50/60Hz |
Working temperature: | 10°C~40°C |
Stimulant signals: | 0+-5V |
Output scope of the pulsed signals: | +5V,+12V |
Important Notice:
1. Because liquid can not ship by airmail, our CT200 do not contain Injector test liquid and Injector detergent.You can purchase it from your local market. Please kindly forgive.Liquid picture is for display.
2. If you feel the shipping cost is too high, pls contact us. I will check again and give you shipping discount.CT200 has same functions as Launch CNC602A, but the weight is only 21Kg (CNC602A weight is 28KG), it cansave much freight for you!

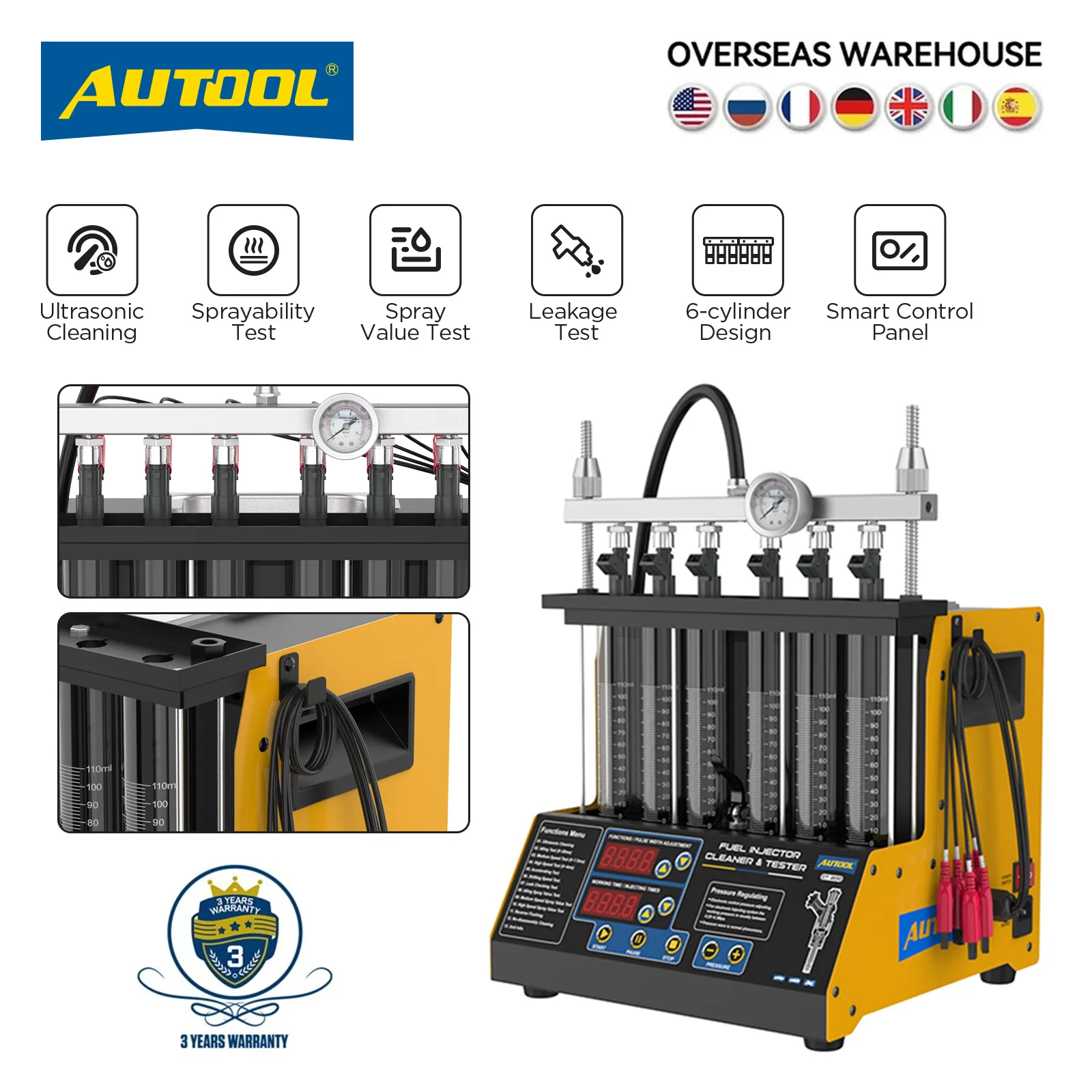

Glass Tubes & Pressure Meter
This fuel injector cleaner was for 6 cylinder car (It will fit for 4 cylinder after blocking two test tube ), and a pressure meter, their combination can make the test more precise and easy.

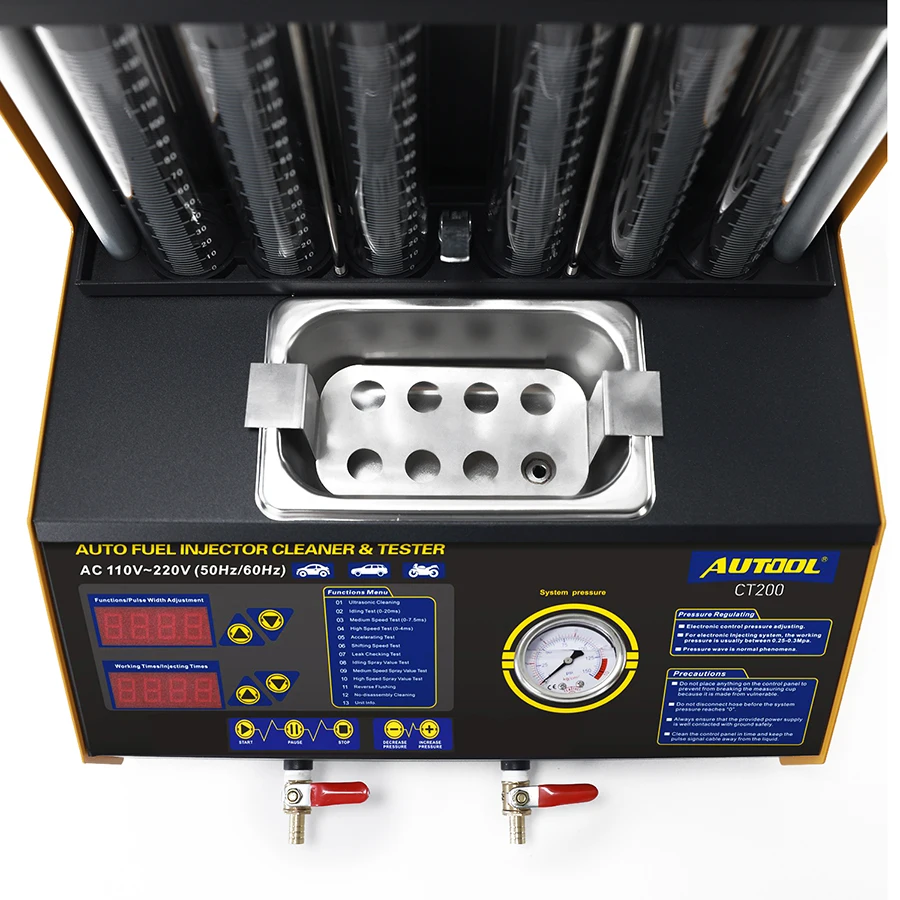

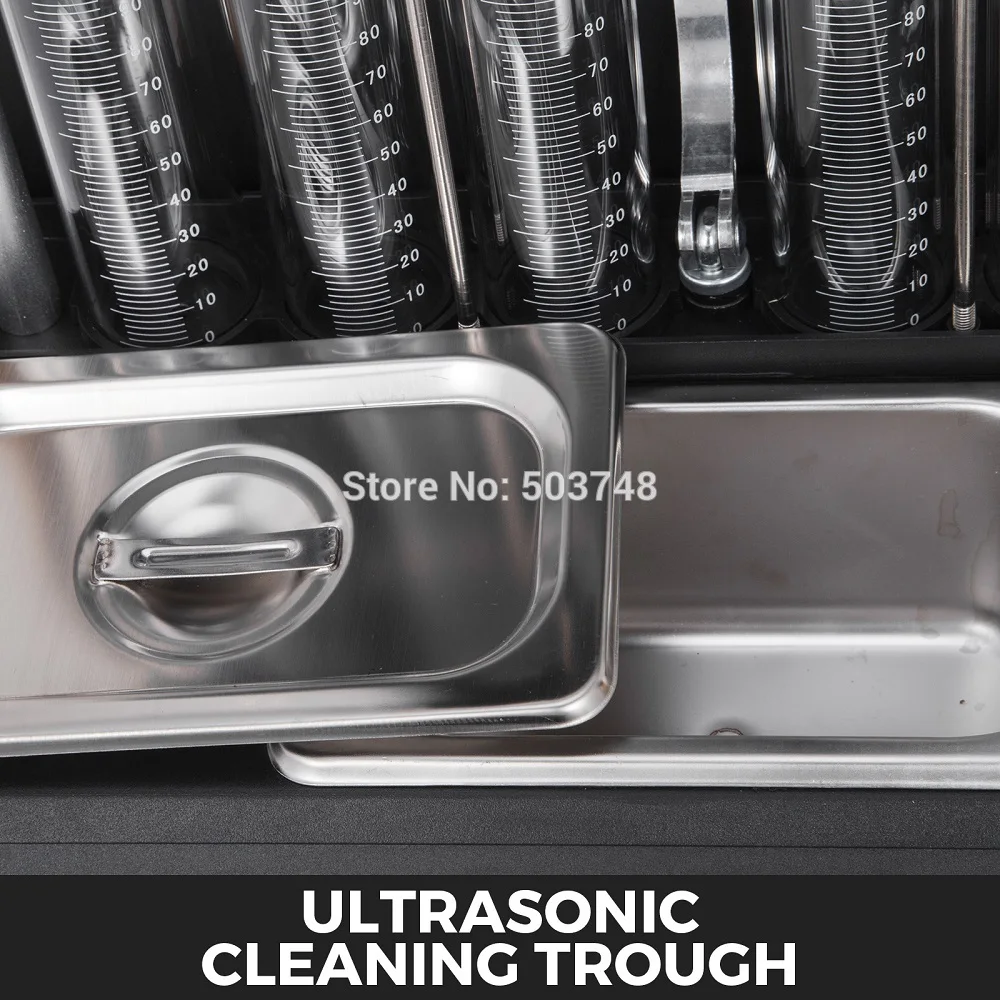

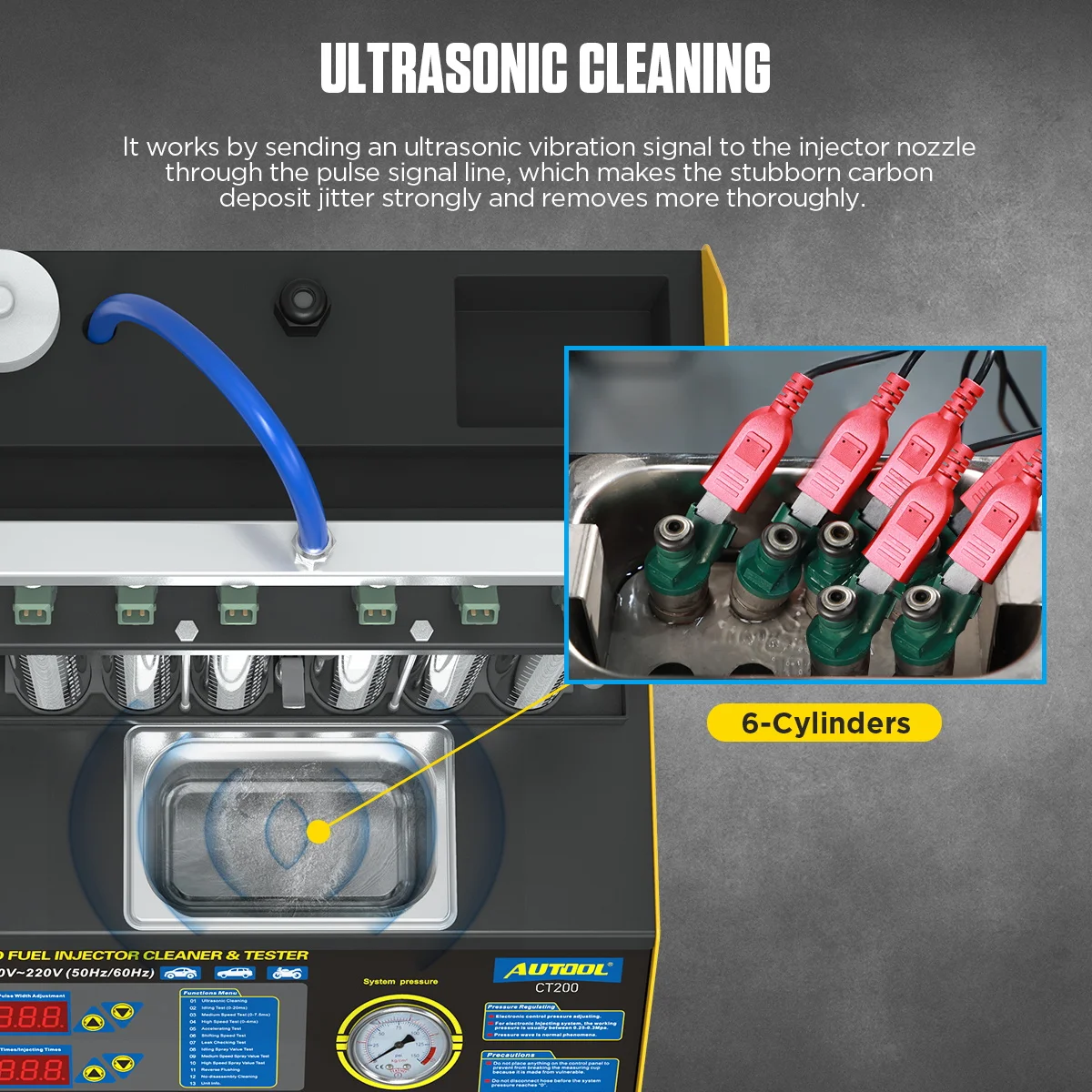

Ultrasonic Cleaning Trough
This machine has a built-in ultrasonic cleaning trough which will perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely.

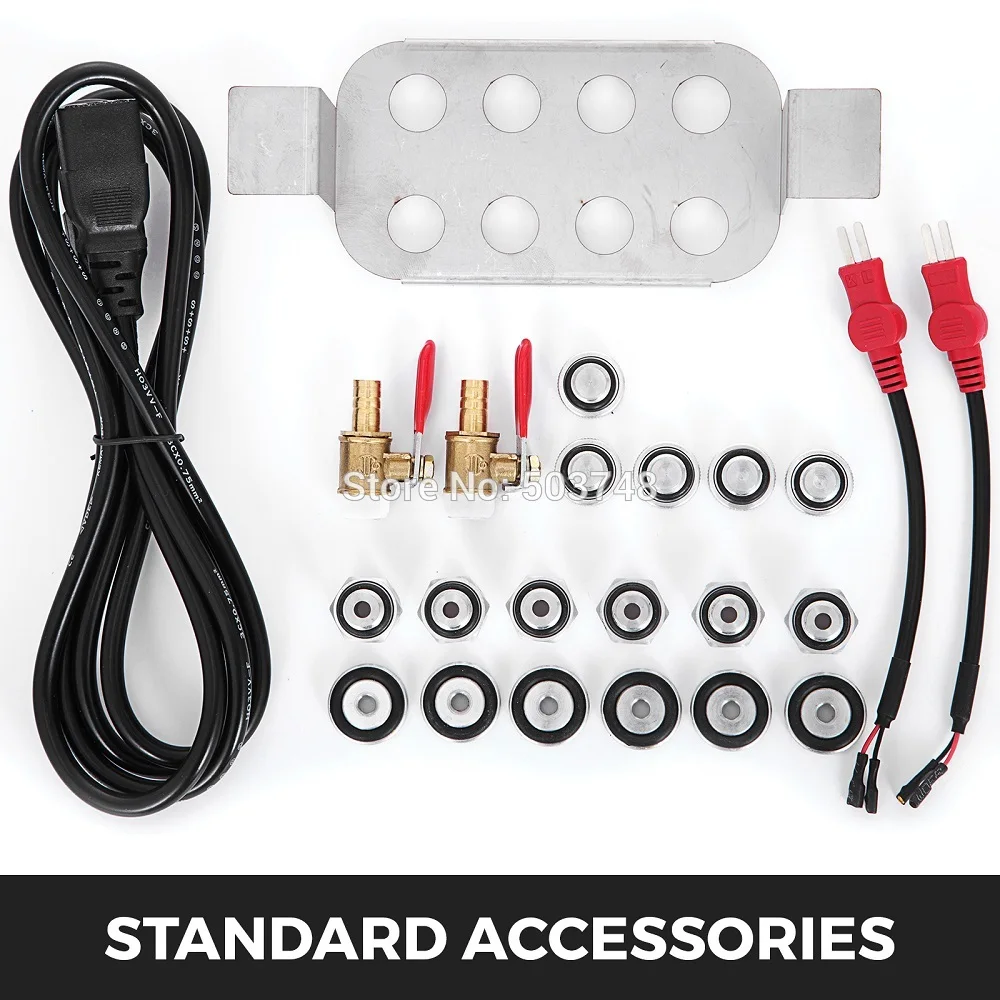

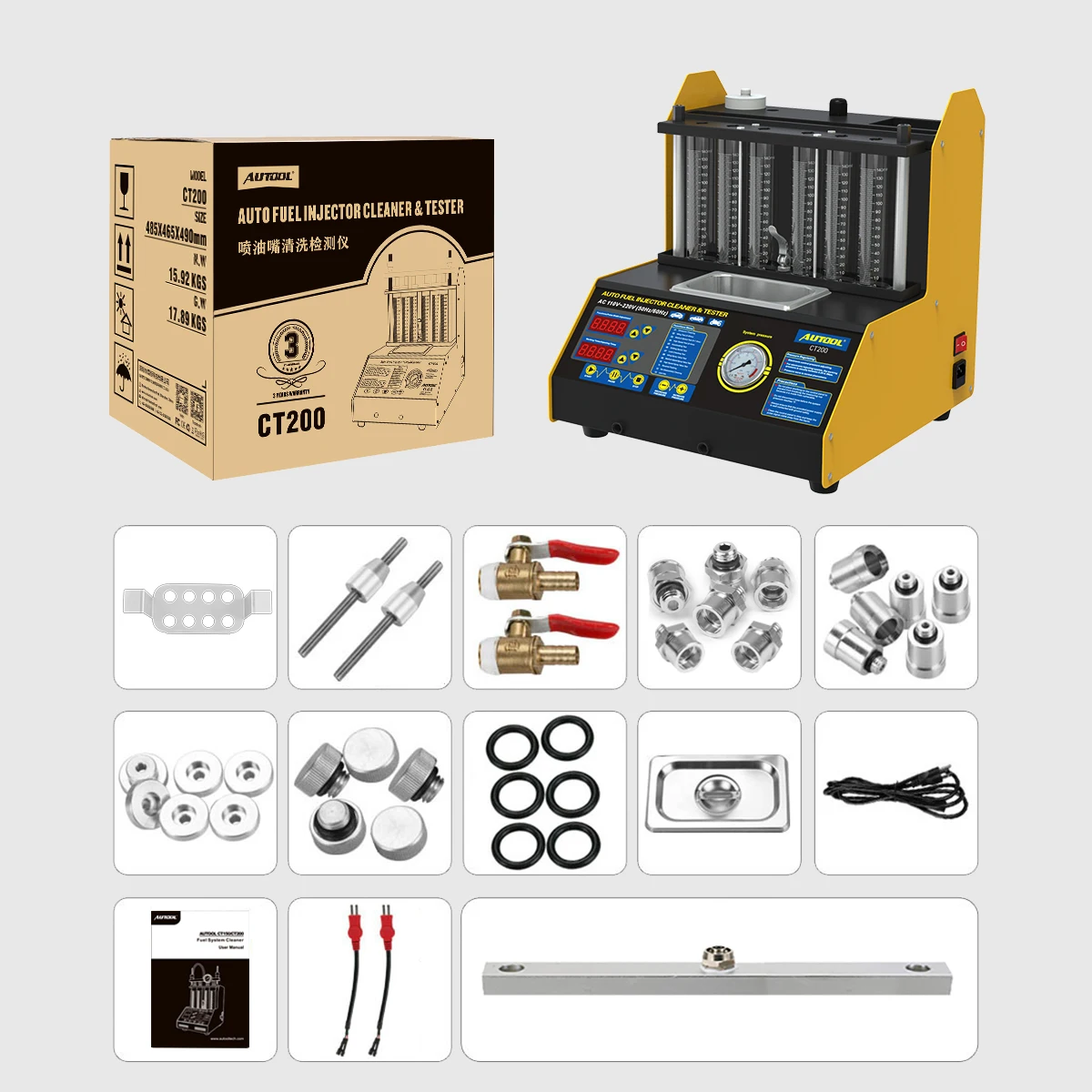

Standard Accessories
Equipped with standard accessories which provides on-vehicle cleaning. Those various adaptors and couplers can facilitate cleaning on the injectors on vehicle.

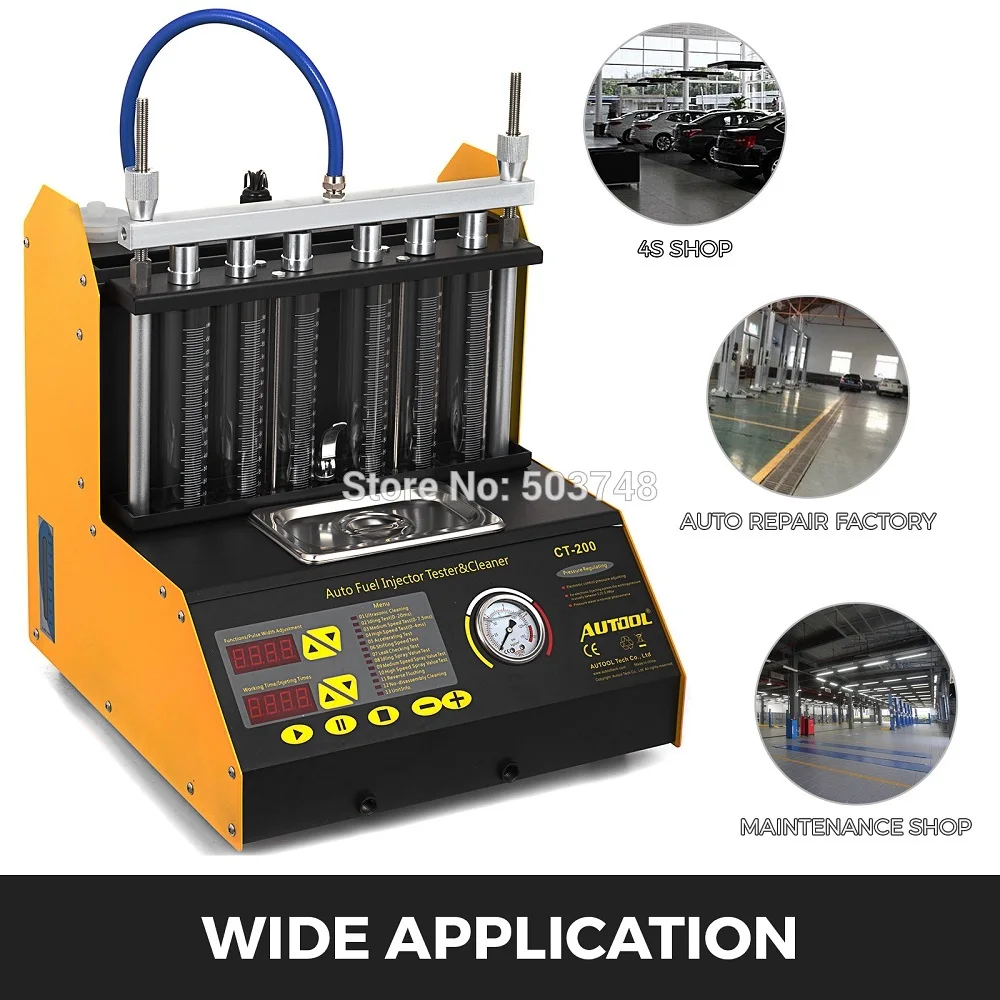

Wide Application
This machine can be used in Auto repair shop, repair shop, car beauty shop, 4S shop and it is not only universal for most cars which has petrol injector but also fits for motorcycles for HONDA YAMAHA SUZUKI SANYANG(need extra accessories).
