Power Supply:

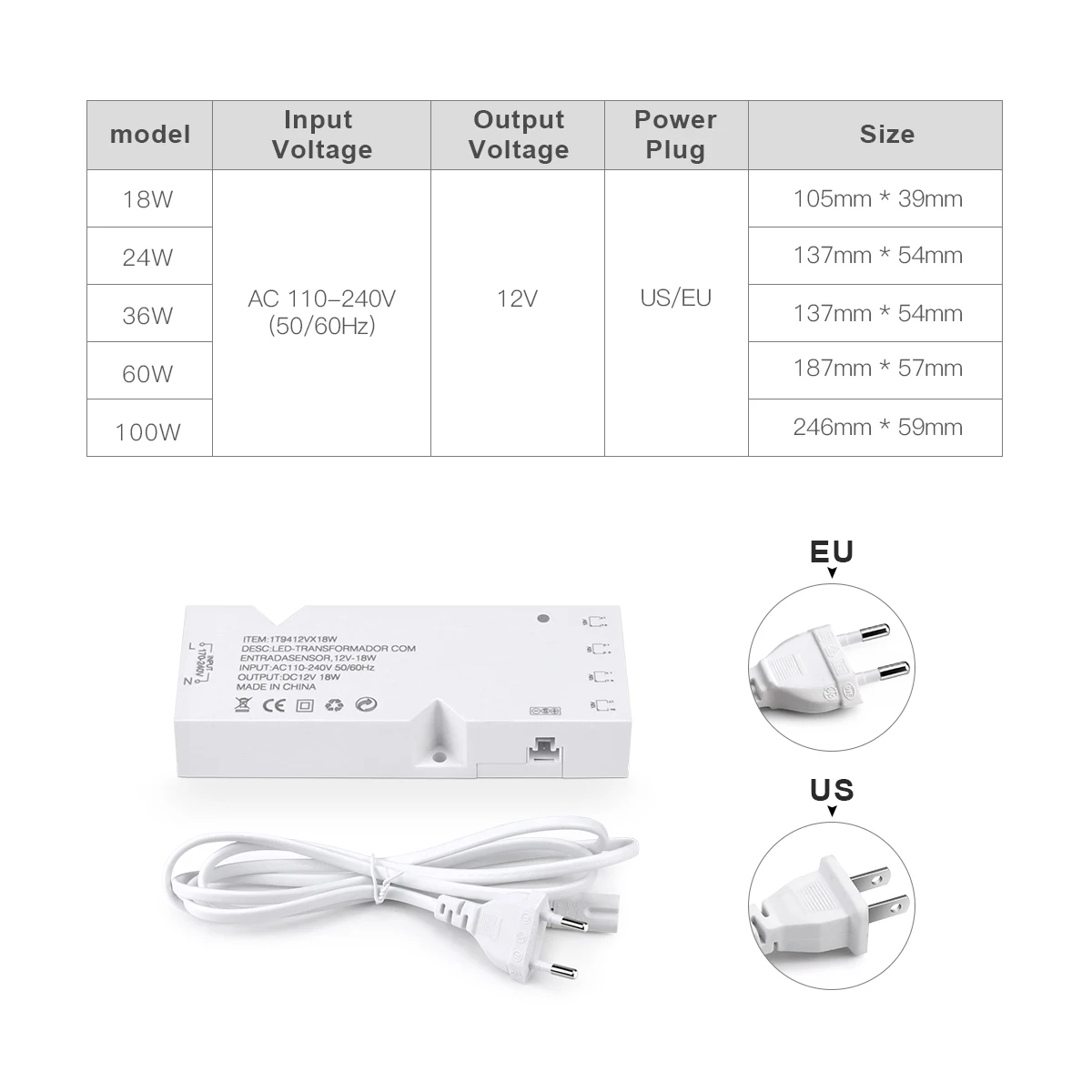

Specification:

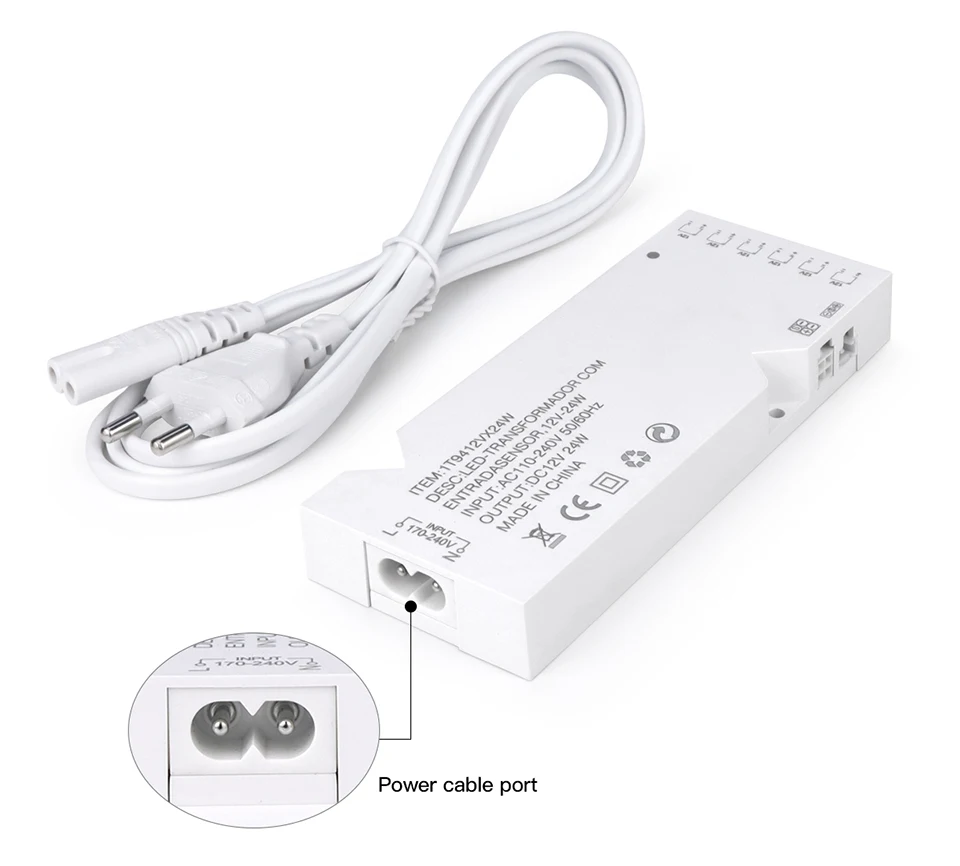

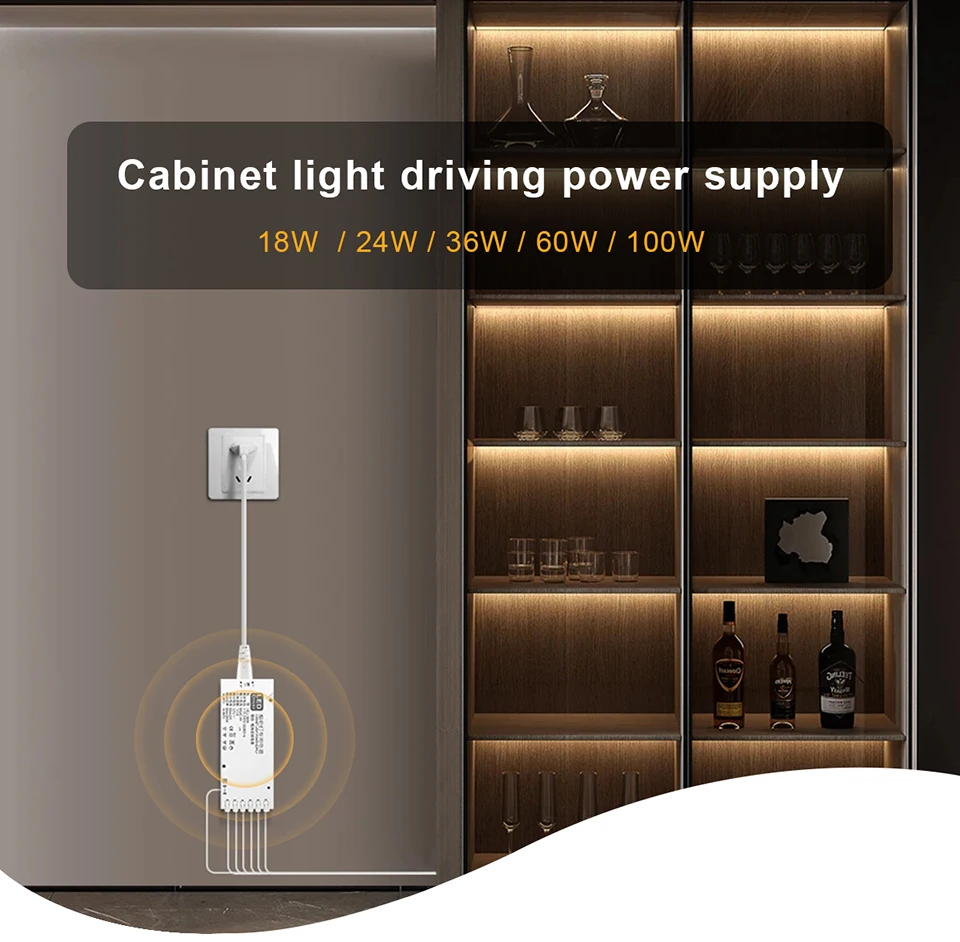

LED Cabinet Light Driver
Work efficiency: ≥83%
Isolation&withstand voltage: AC 50 Hz 2000V
Protection mode: open circuit protection, short circuit protection, overload protection, over-current protection, high temperature protection
Waterproof grade: IP20

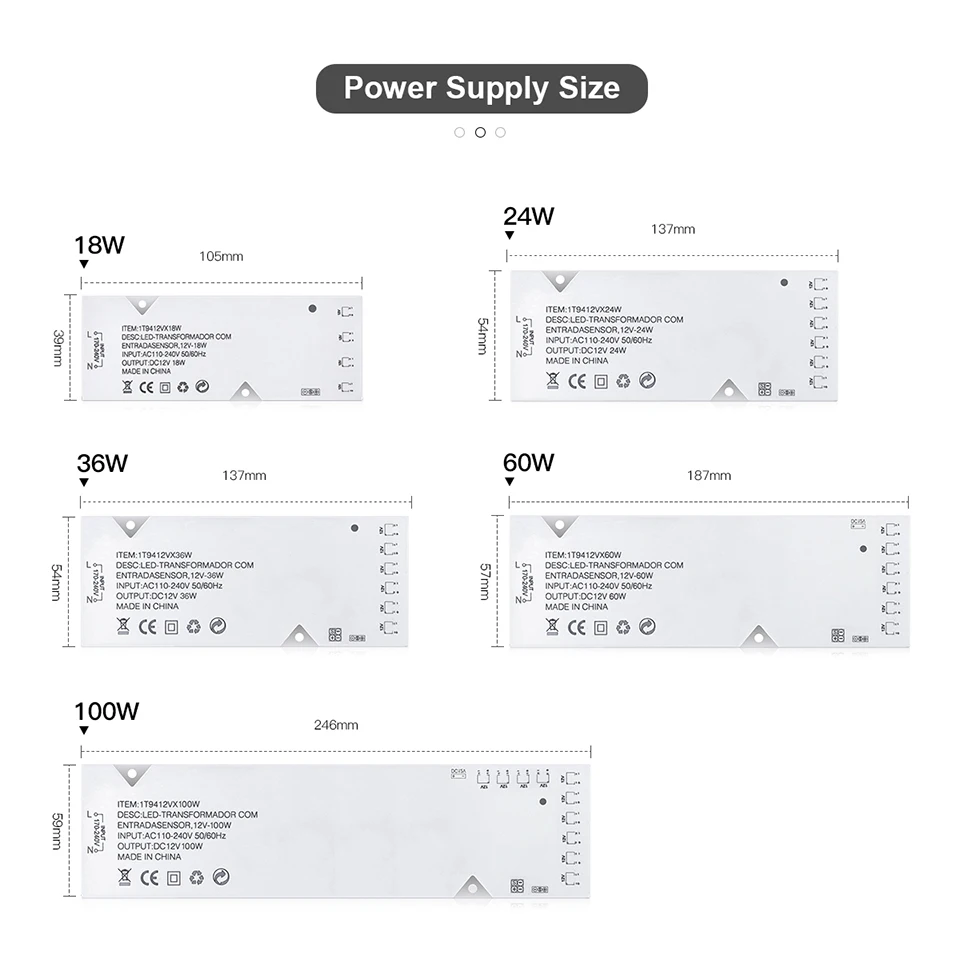

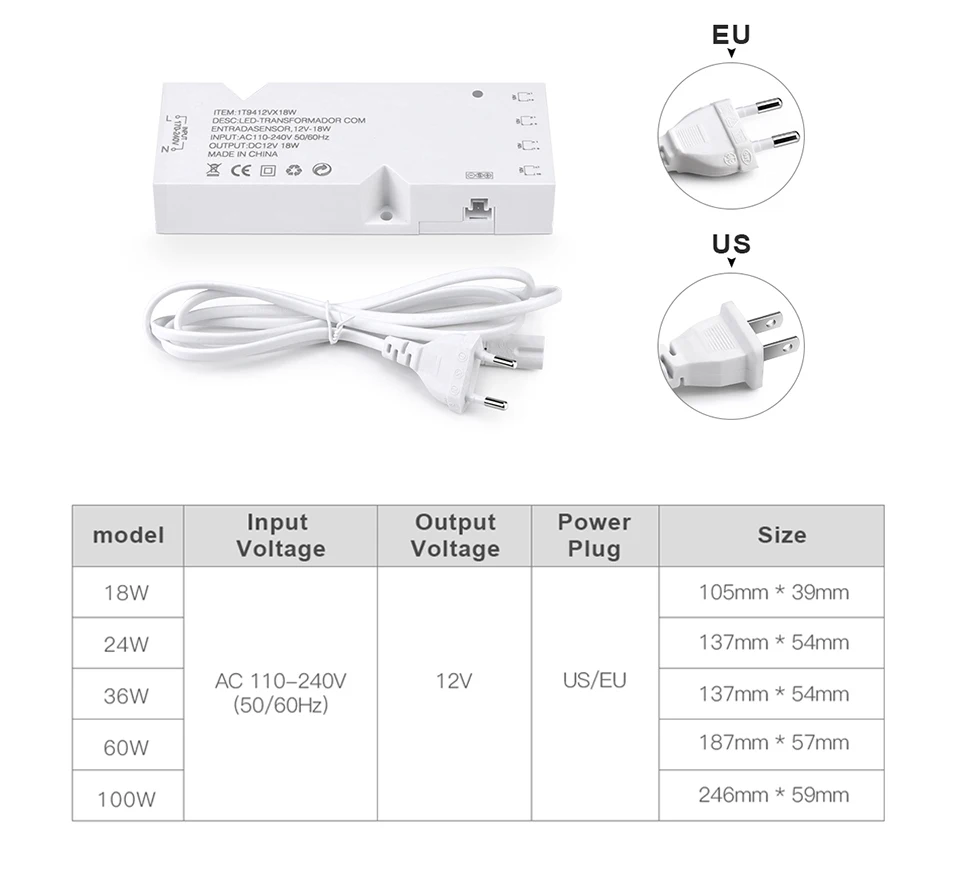

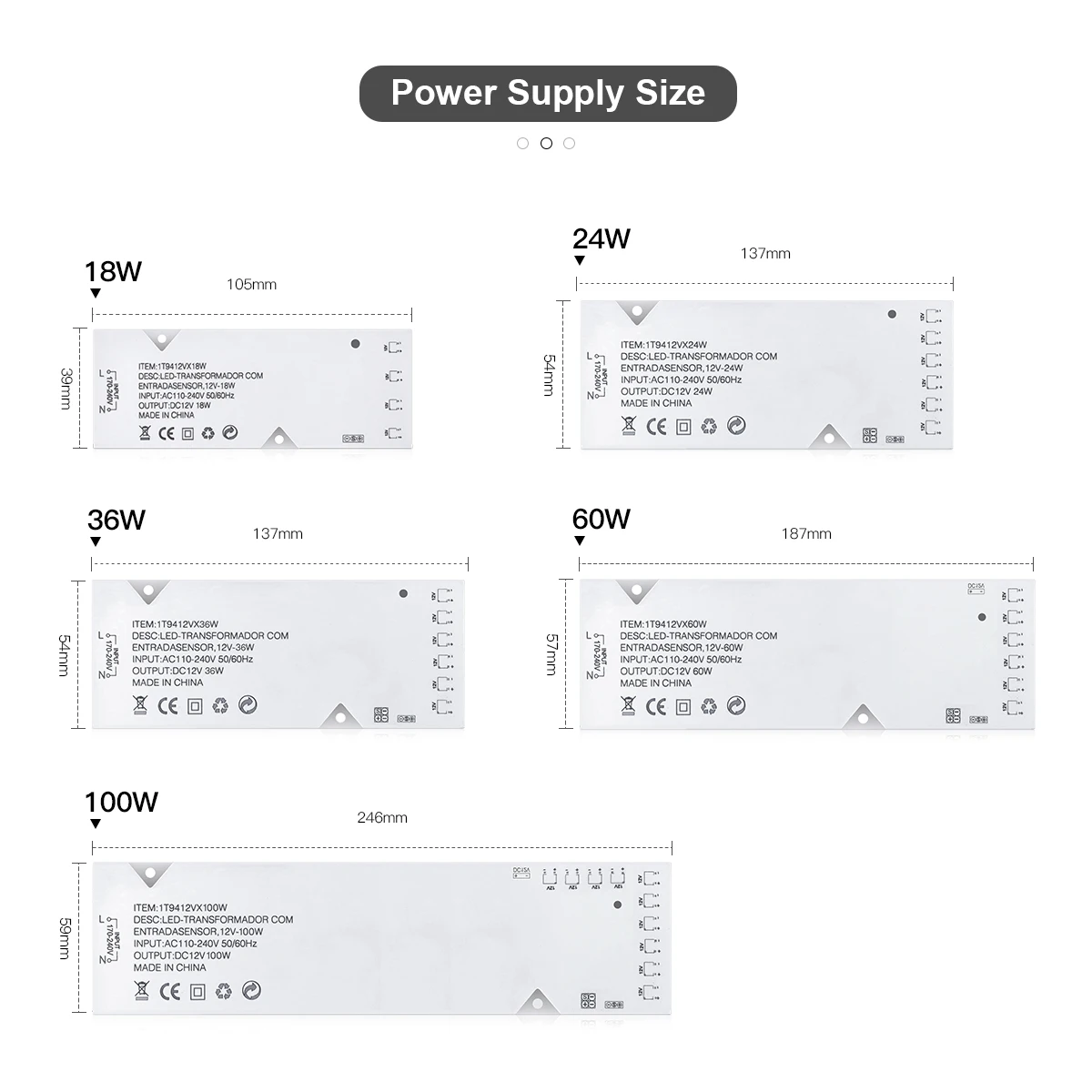

Power:18W
Input voltage: AC110V-250V
Output voltage: DC12V
Output current: 1.5A

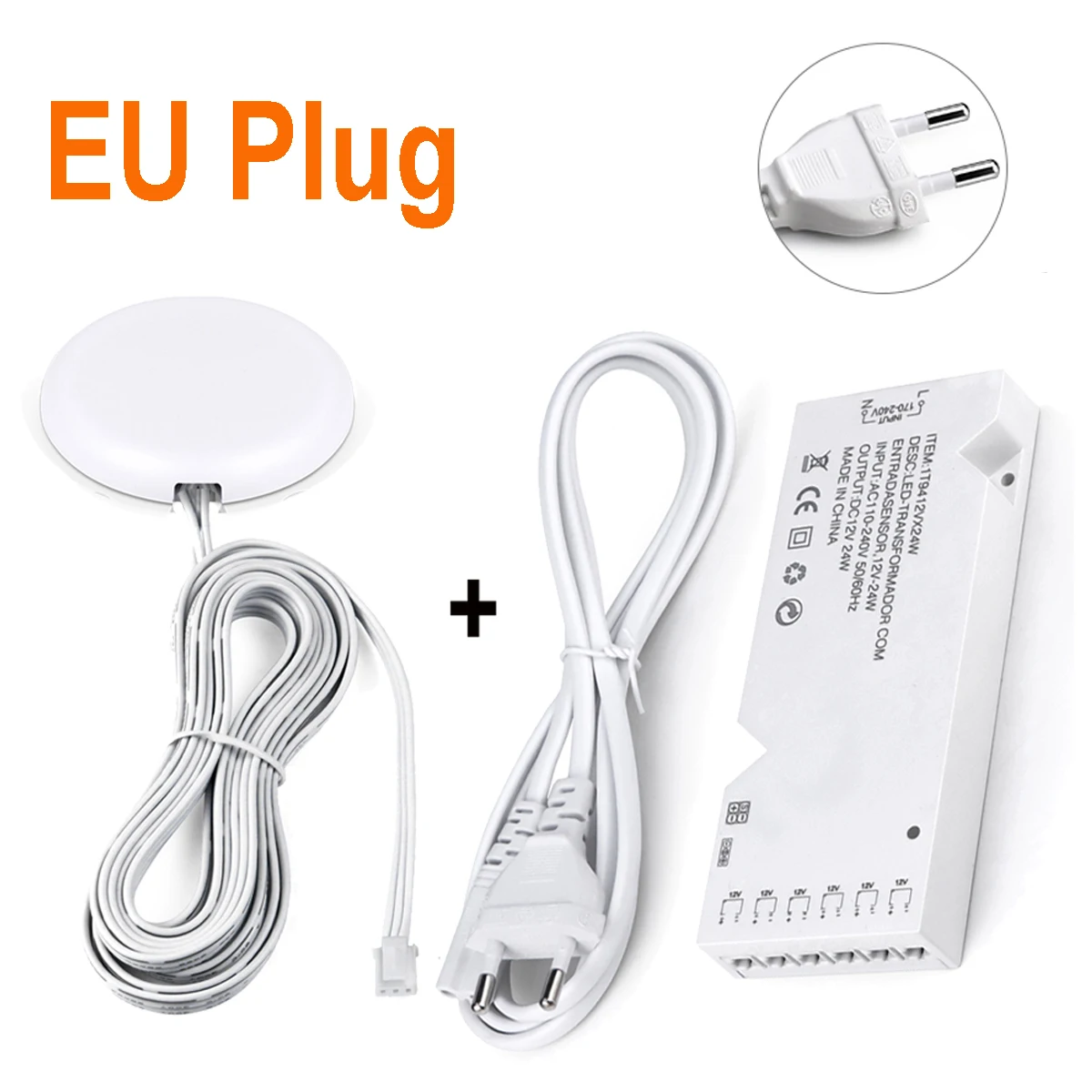

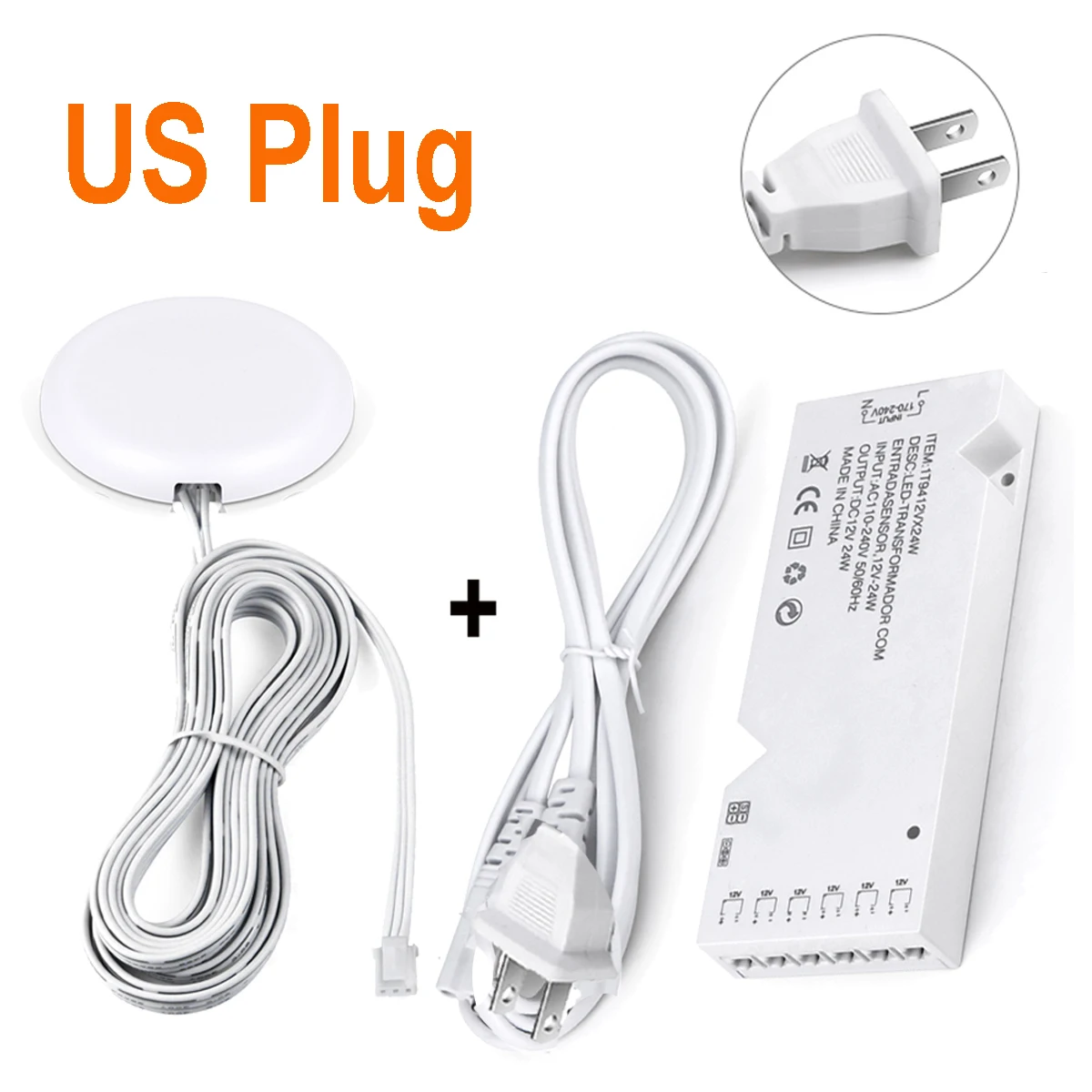

Plug Type: EU/US

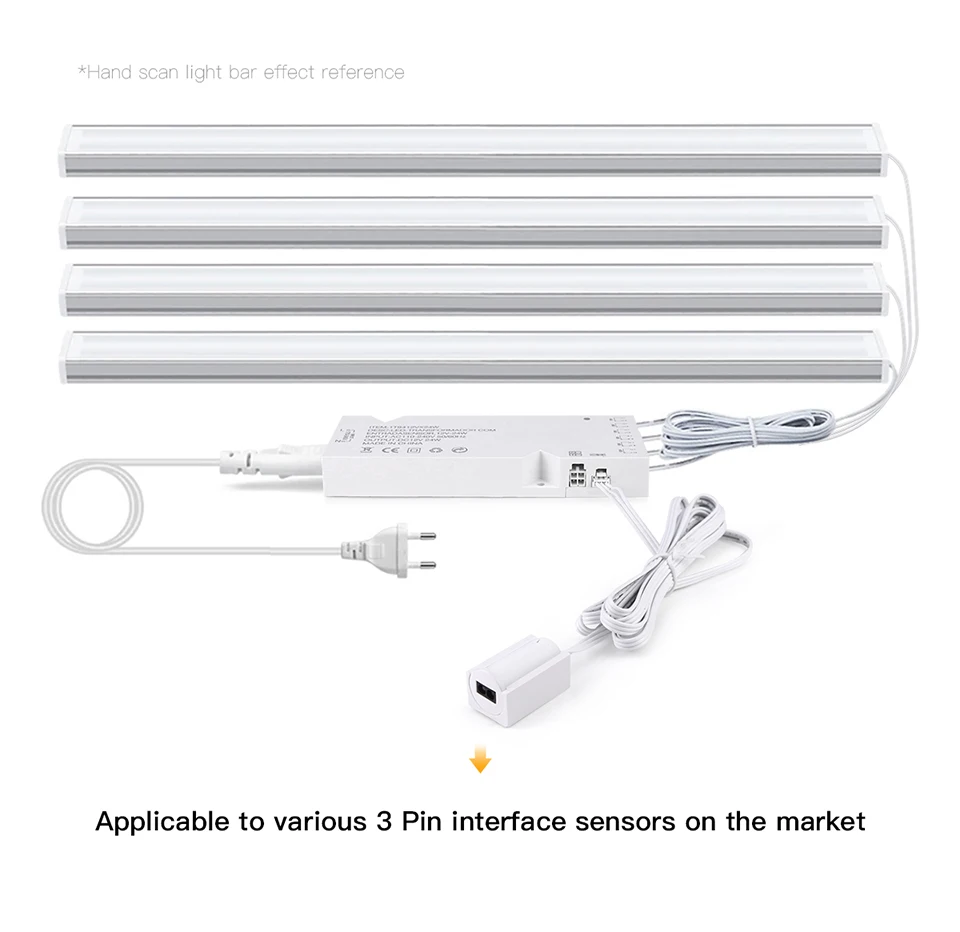

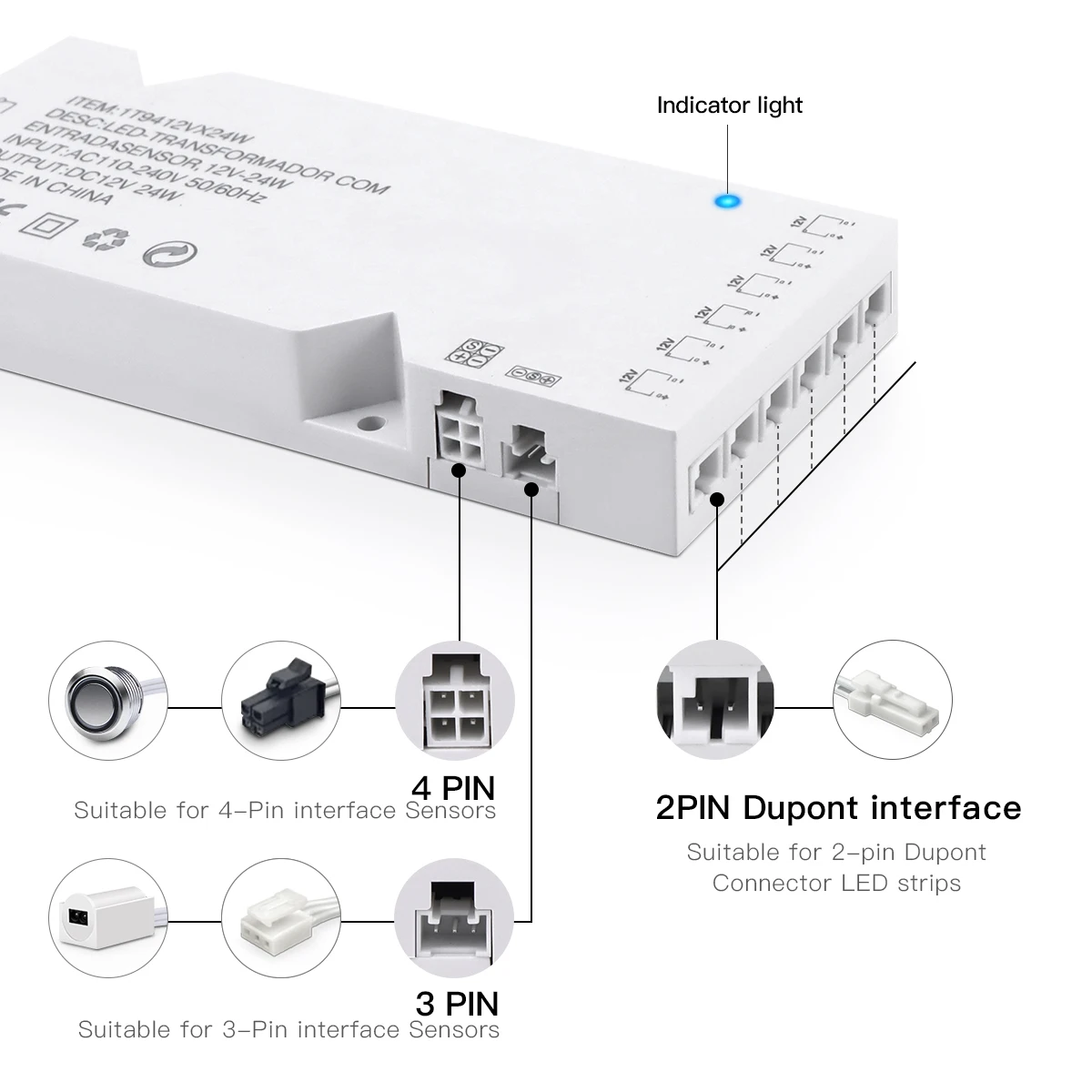

4 Dupont interfaces
Power:24W
Input voltage: AC110V-250V
Output voltage: DC12V
Output current: 2A
Plug Type: EU/US
6 Dupont interfaces
Power:36W
Input voltage: AC110V-250V
Output voltage: DC12V
Output current: 3A
Plug Type: EU/US
6 Dupont interfaces
Power:60W
Input voltage: AC110V-250V
Output voltage: DC12V
Output current: 5A
Plug Type: EU/US
6 Dupont interfaces
Power:100W
Input voltage: AC110V-250V
Output voltage: DC12V
Output current: 8.3A
Plug Type: EU/US
10 Dupont interfaces

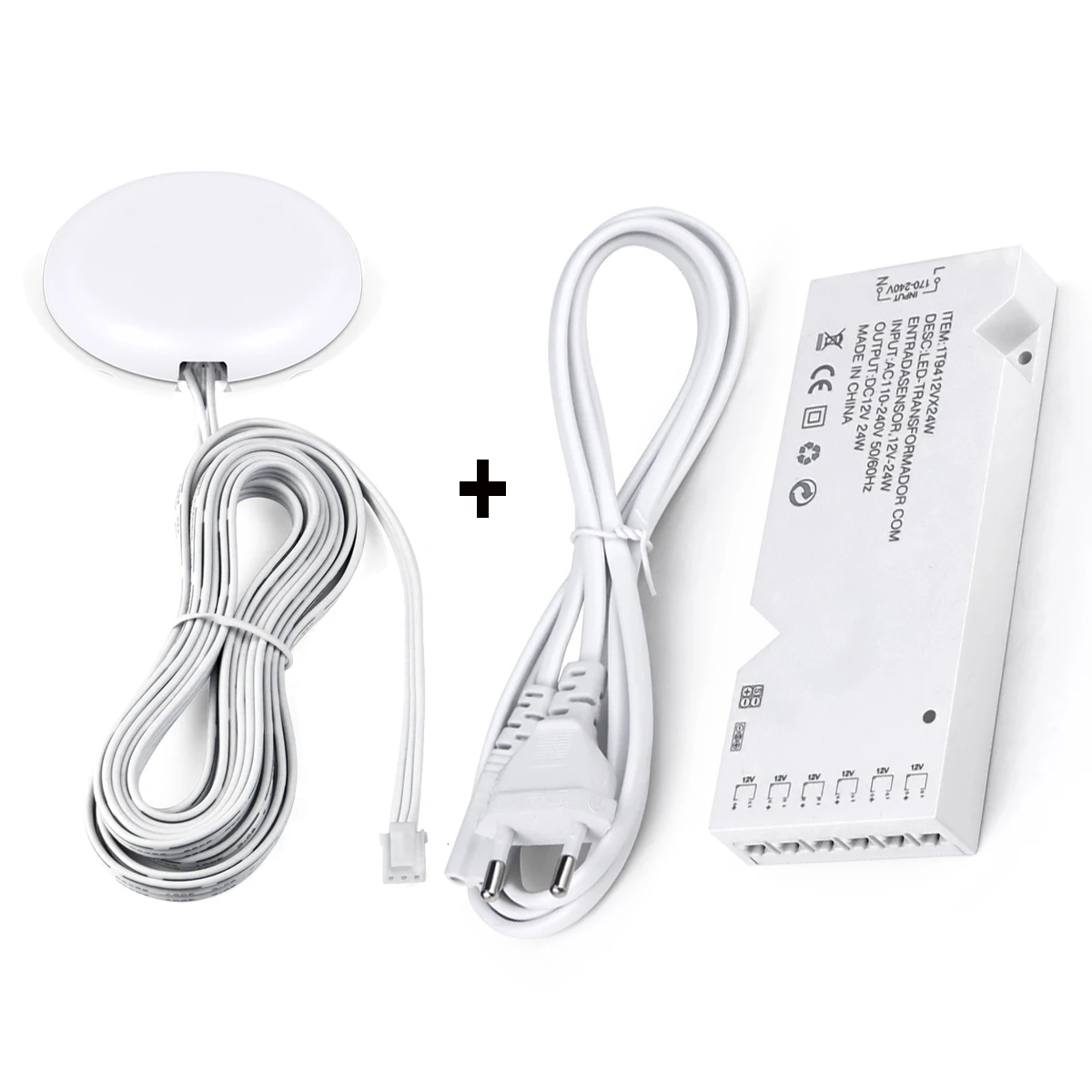

Penetrate Touch Switch
Specification:
Type: Hand Sweep and Stepless Touch Dimmer Switch
Voltage: 12V -24V
MAX Load: 5A 12V / 3A 24V

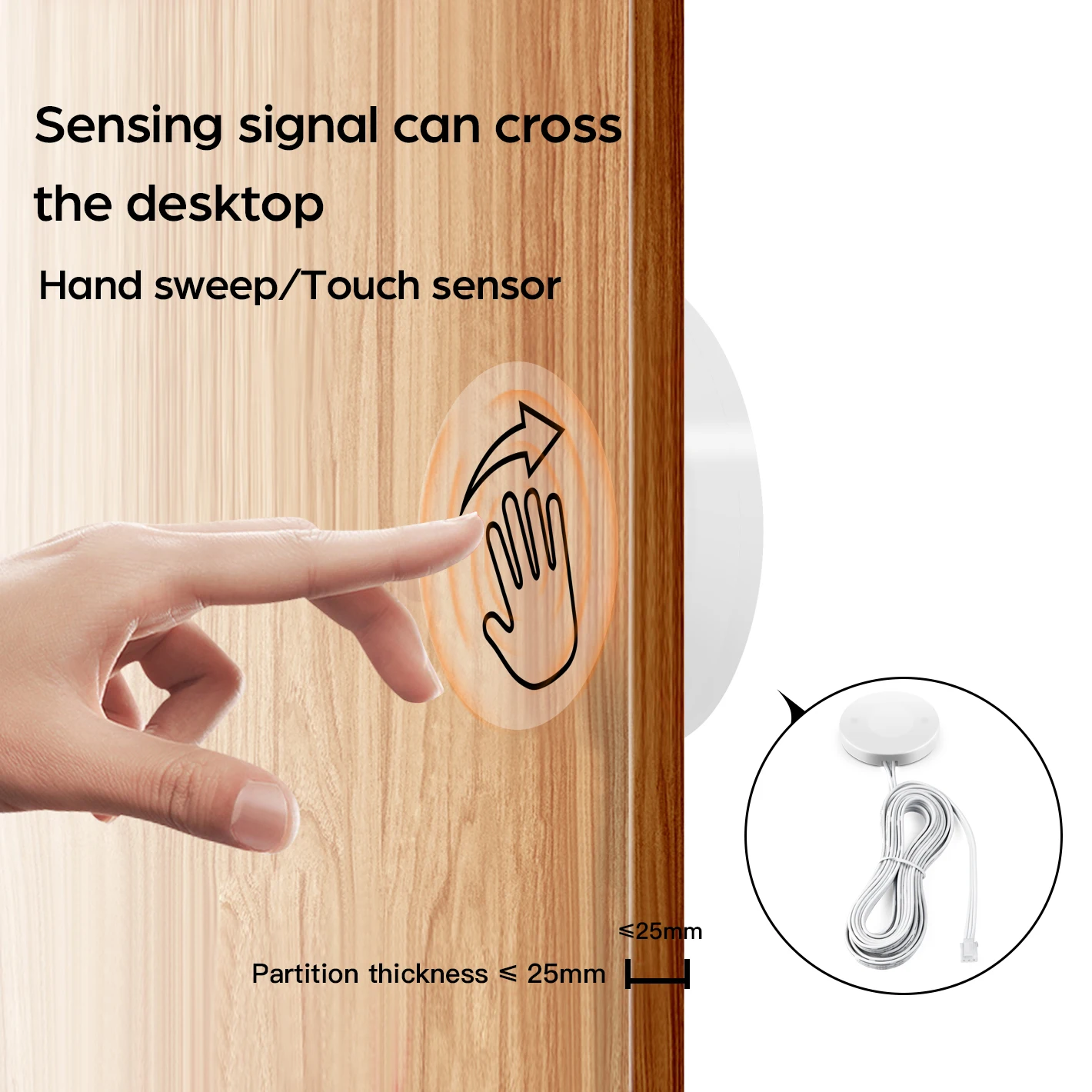

Penetrating Wood Detection Range:<=25MM
Features:
1.The Smart touch dimmer control sensor switch is used behind wood board (like kitchen cabinet ,wardrobe, closet..) or glass mirror. It can work on dc 12V led light, And it more flexible to stick anywhere you like,simple and easy to instation. DON'T NEED OPEN HOLE!!!
2.The touch sensor can sense the medium materials: wood plate, rock plate, stone, paper, acrylic, plastic, glass, and other non-metallic conductor materials
3.Touch distance: The different thickness sensitive is different, the thinner the better Please don't close to metal materials to avoid interference
