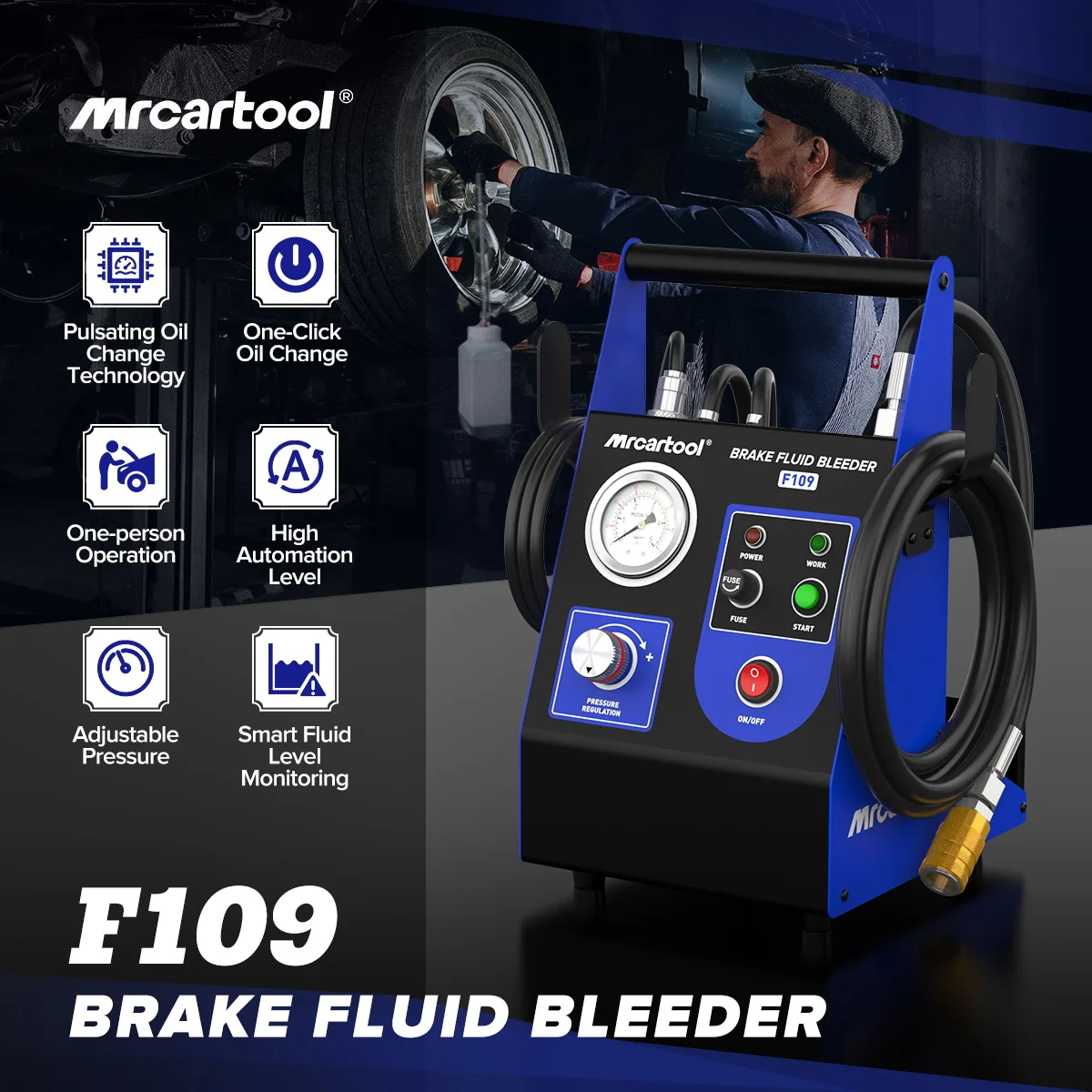

MRCARTOOL F109 Car Pulsating Brake Oil Changer Single Clutch Slave Cylinders Brake Extractor Oil Pump Machine for all Car
PK AUTOOL AST605

Applicable to European, American and Asian car models：

For one sub-pump changing oil at the same time, it is fast and labour-saving.

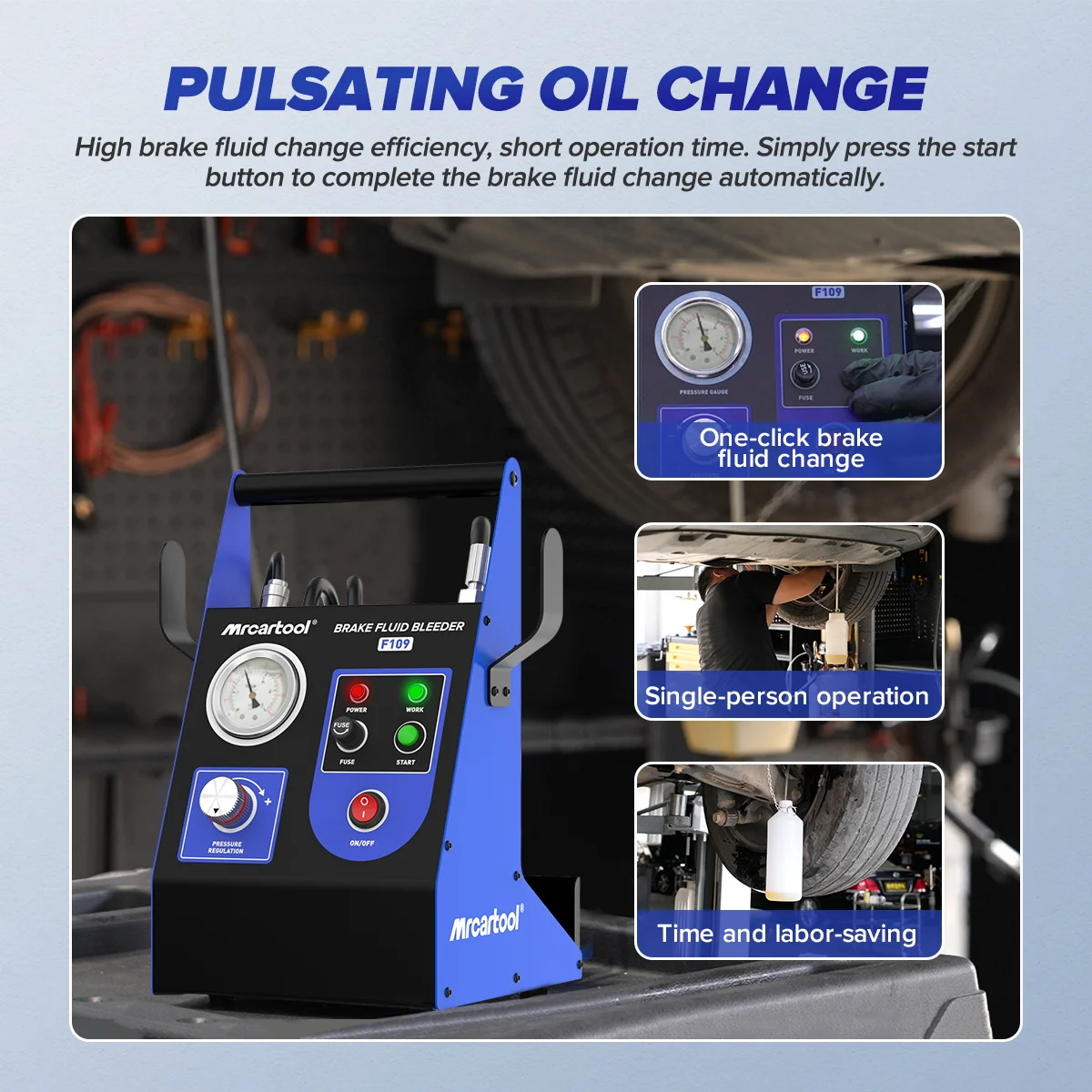

Adjustable pulse oil change, which can effectively clean the pipeline and change the oil more thoroughly.

Powerful recovery function, it can quickly recover used brake fluid at the same time.The air inlet port has a water separating and filtering device, which can separate the moisture in the air, avoid it mixing with the oil, and ensure the quality.

MRCARTOOL F109 Car Pulsating Brake Oil Changer Features :

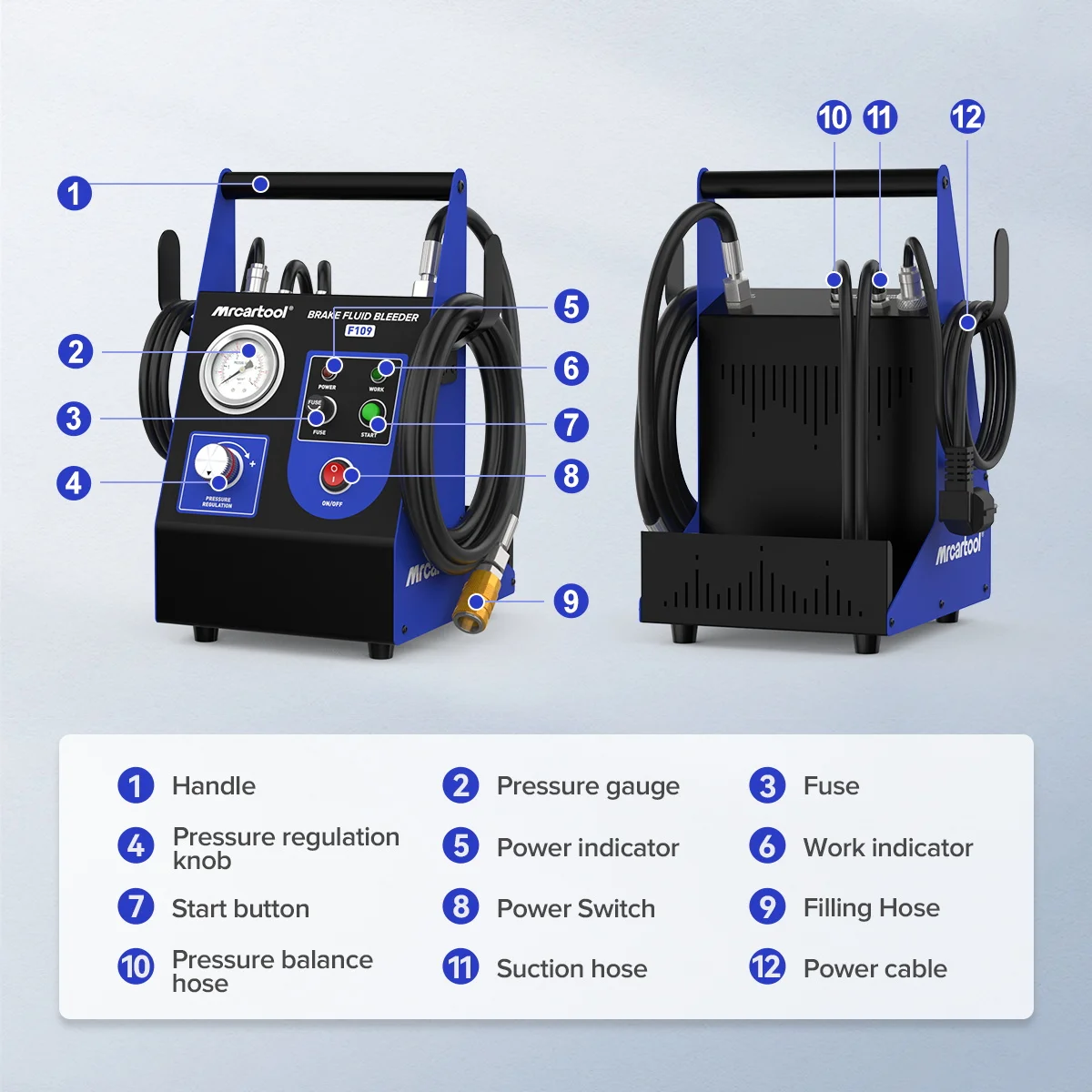

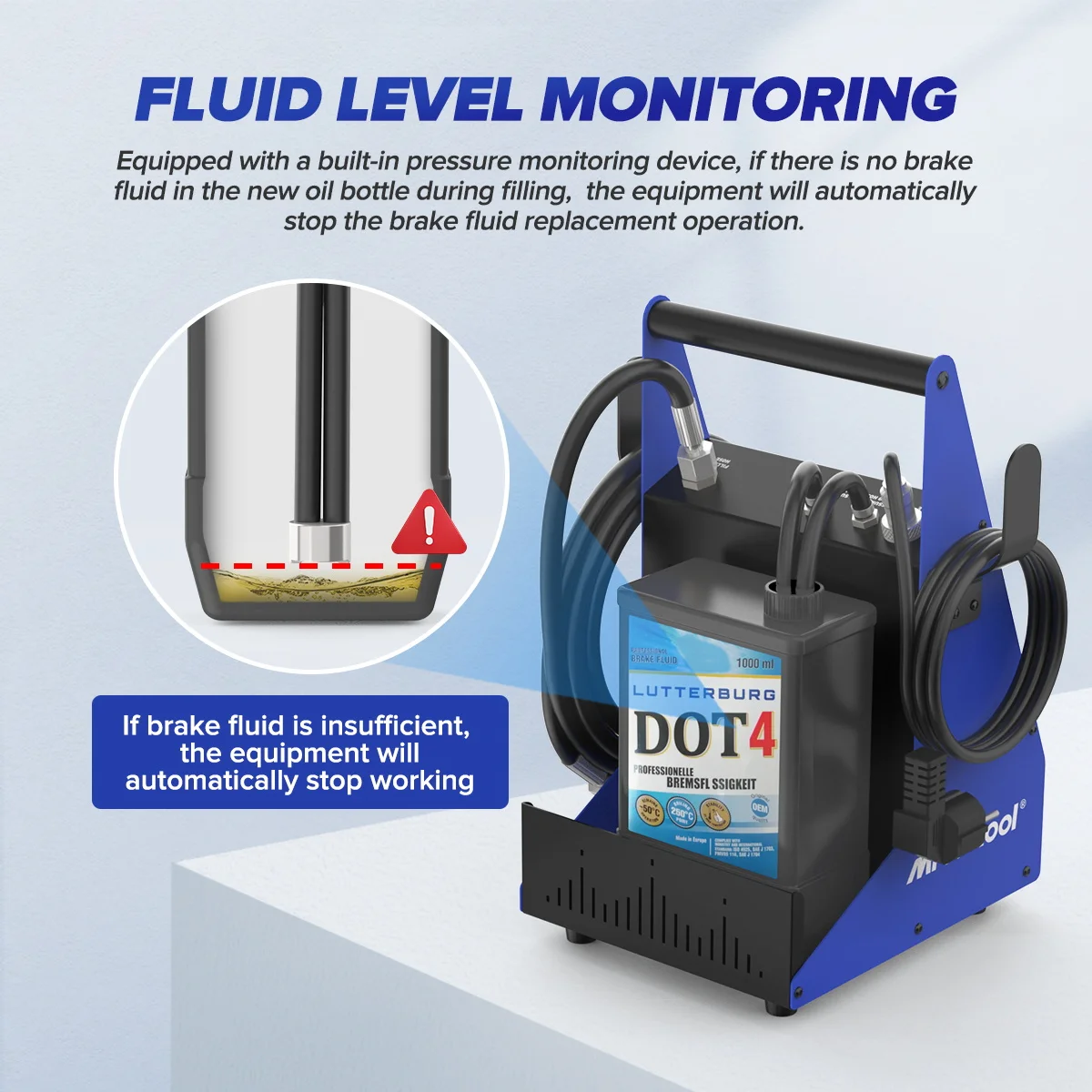

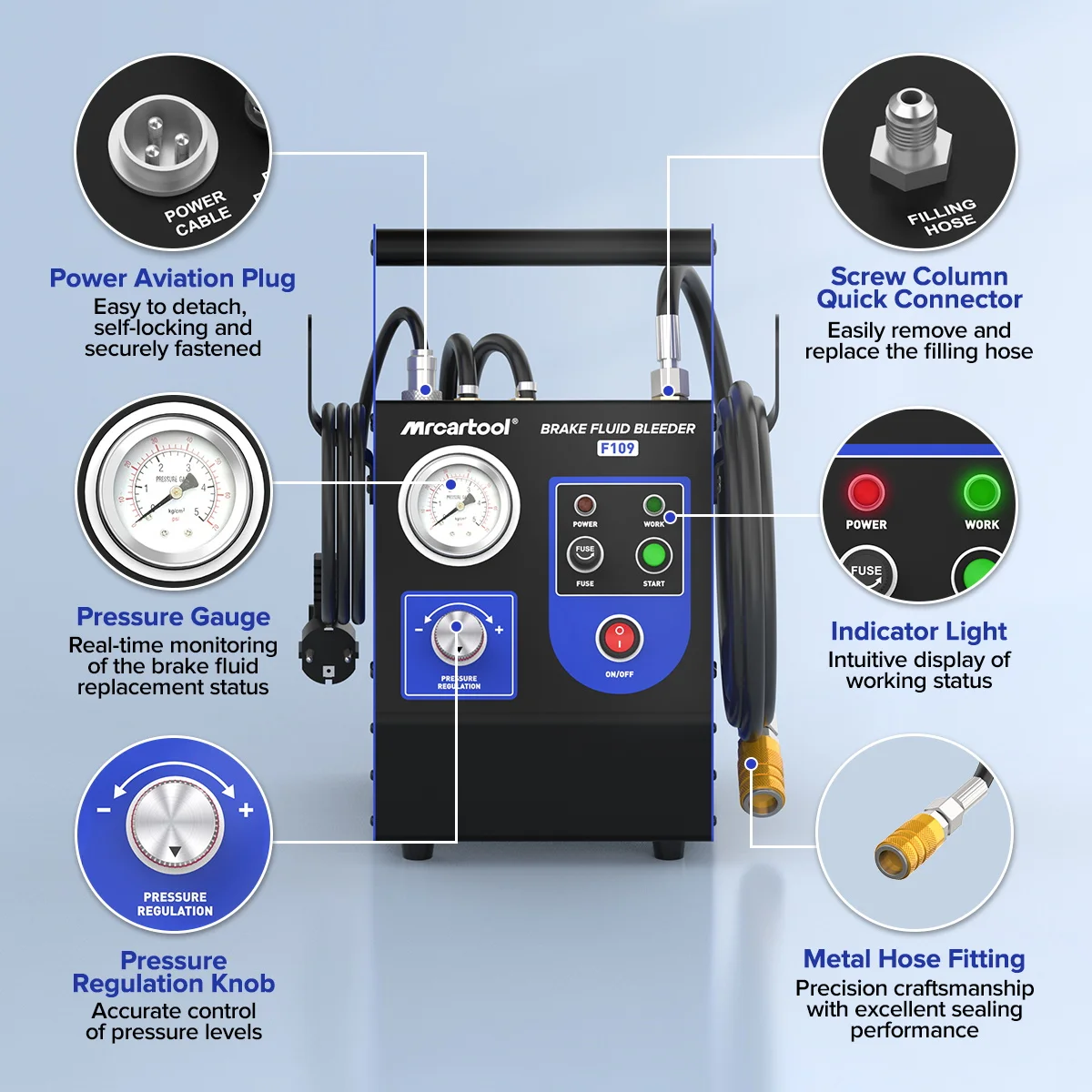

1. [ Built in Pressure Monitoring System ]: The pump for filling the brake fluid reservoir is equipped with a pressure monitoring device. You can adjust the pressure through the adjustable knob, the pressure range is 0.5-2.5Bar. If the pressure cannot be established or the pump sucks in air, the pump will shut down automatically. Besides, The recycling bottle can be placed in the machine body, which is easy to carry.

2. [ Optimize Advantages ]: Compared with the traditional compression brake fluid bleeding device, the pulsating electric brake oil exchanger can effectively avoid the formation of bubbles in the process of adding brake fluid, so as to optimize and avoid the artificial exhaust process. MRCARTOOL F109 has a powerful recovery function, which can quickly recover the used brake fluid at the same time.

3. [ Widely Applicable ]: MRCARTOOL F109 is suitable for European, American and Asian car brake fluid tanks, it almost can apply for all vehicles. This pulsating brake oil exchange device is applicable for Dot3, Dot4, Dot5.1 brake oil standard.

4. [ High Efficiency ]: Our main bleed kit requires only one person to operate and allows you to easily to use and change the brake oil. It can change four sub-pumps oil at the same time, after setting the working environment, the whole exchange process is automatic, so don't worry about being too busy.

5. [ 2 Years Warranty, Lifetime Maintenance ]: For damage caused by non-human factors, MRCARTOOL promises to resend parts for free within 2 years. For any needs, you are warmly welcomed to contact us and we will get back to you ASAP within 24 hours.

How to adjust working pressure correctly？

When the device is out of factory, the working pressure of the pressure regulator is set to 1~1.5 bar, to ensure that the liquid storage chamber does not deform while changing liquid, thereby ensuring the tightness of the secondary sealing ring.

In addition, it is also feasible to exhaust or change the liquid at a lower working pressure by adjusting the pressure and the size switch.

In special circumstances, while operating under a higher working pressure, be aware of the excessive pressure adjustment, which may damage the brake master cylinder of the brake system.

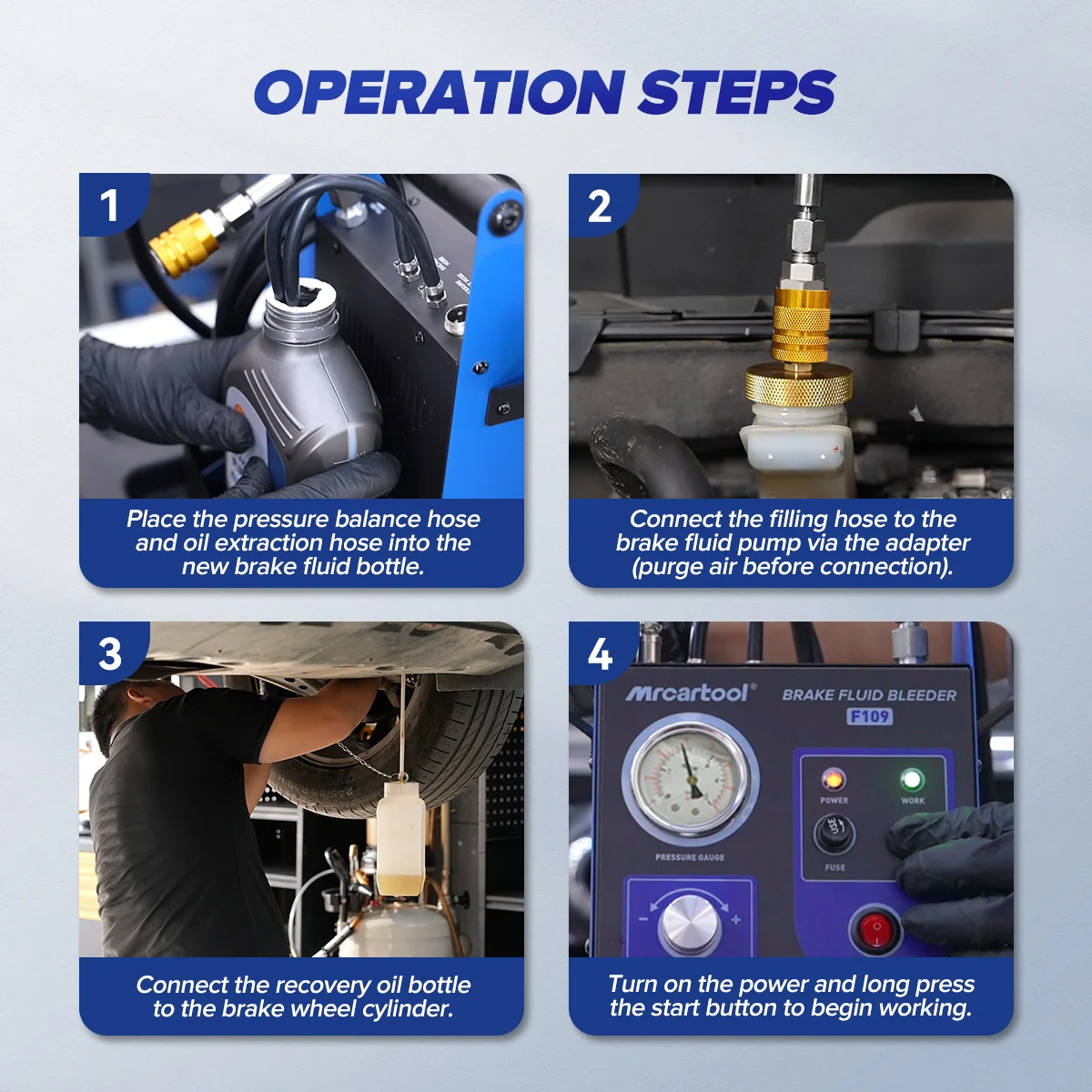

MRCARTOOL F109 Car Pulsating Brake Oil Changer Operation steps：

Note: no need to start the vehicle for the operation.

1. Place the pressure balance hose and oil extraction hose into the new brake fluid bottle.

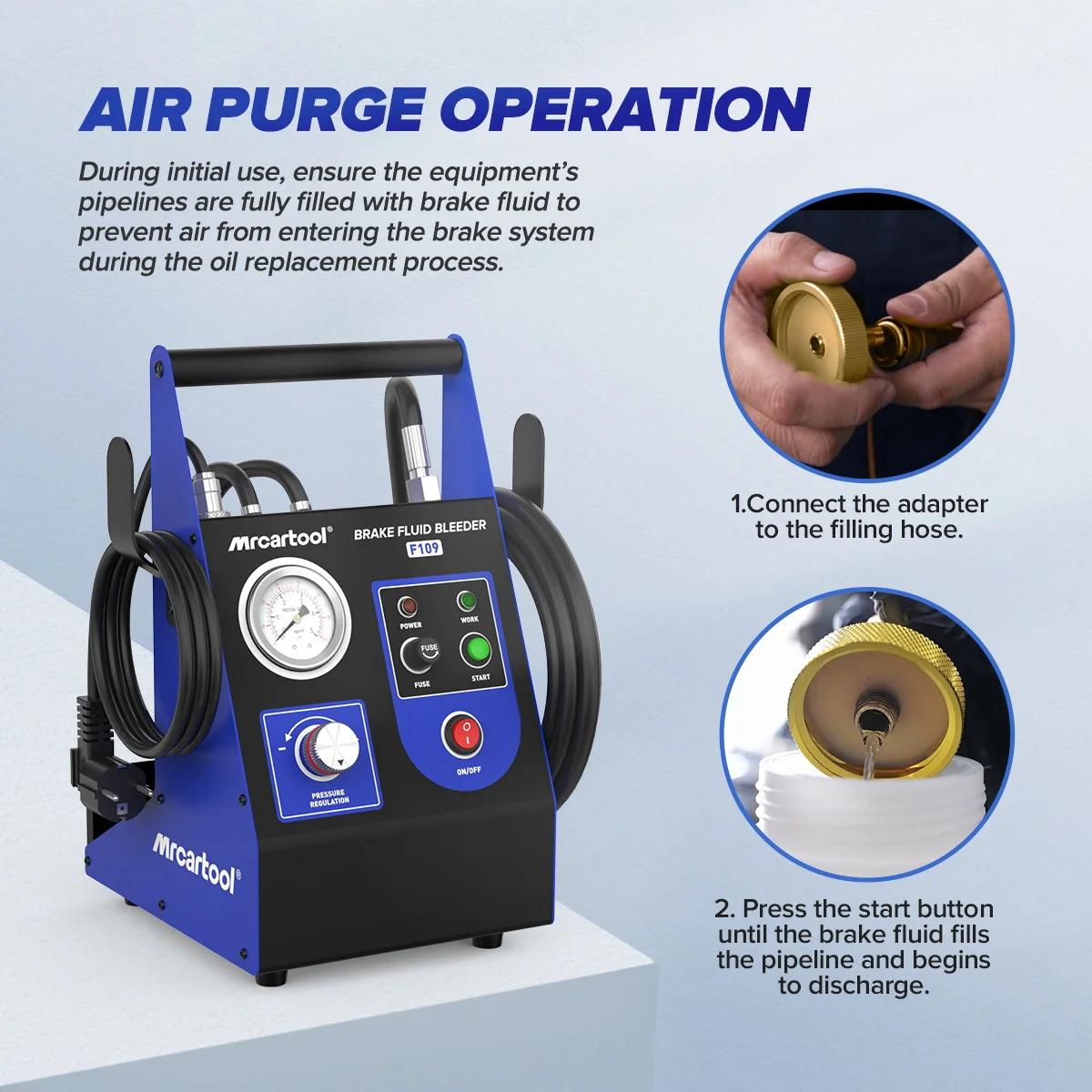

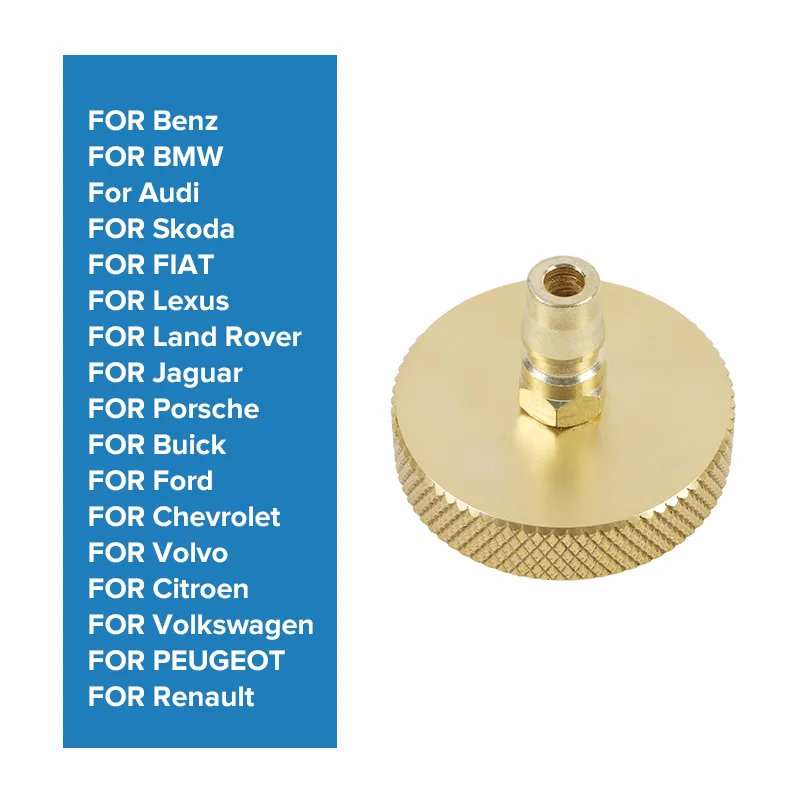

2. Connect the filling hose to the brake fluid pump via the adapter (purge air before connection).

3. Connect the recovery oil bottle to the brake wheel cylinder.

4. Turn on the power and long press the start button to begin working.

Notice：

Please check each connection if there is any leak, when changing oil, and whether the connecting hose is damaged, to keep the new oil filler port clean.

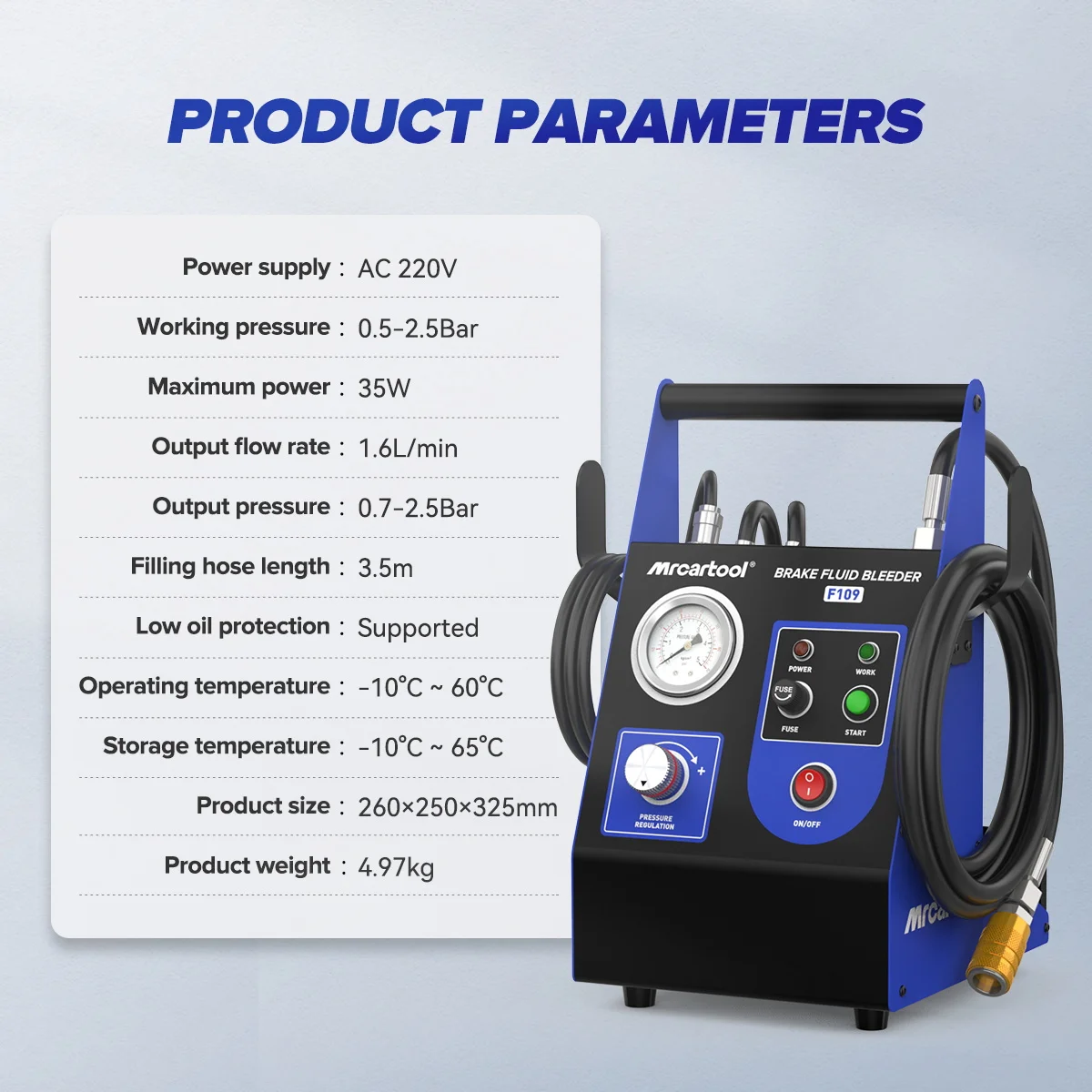

Paraments：

Power supply :AC 220V

Working pressure :0.5-2.5Bar

Maximum power:35W

Output flow rate:1.6L/min

Output pressure :0.7-2.5Bar

Filling hose length :3.5m

Low oil protection :Supported

Operating temperature:-10℃~60℃

Storage temperature:-10℃~65C

Product size :260x250x325mm

Product weight:4.97kg
