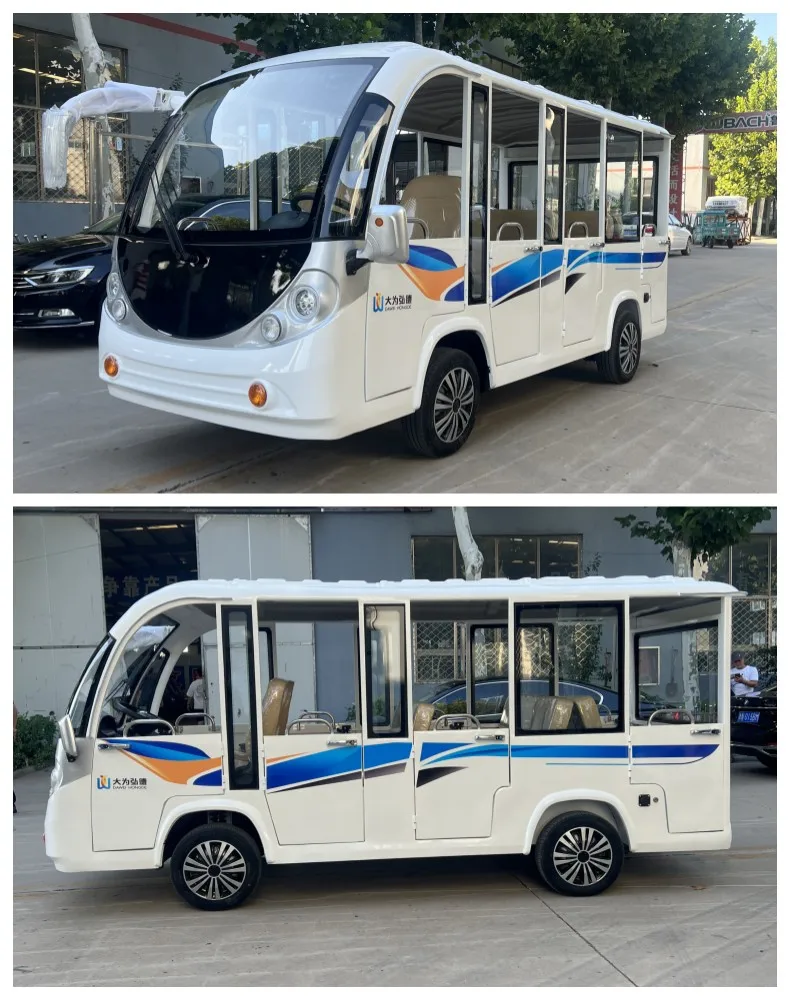

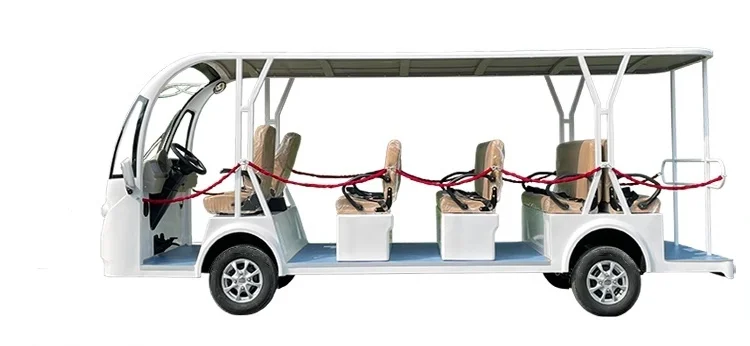

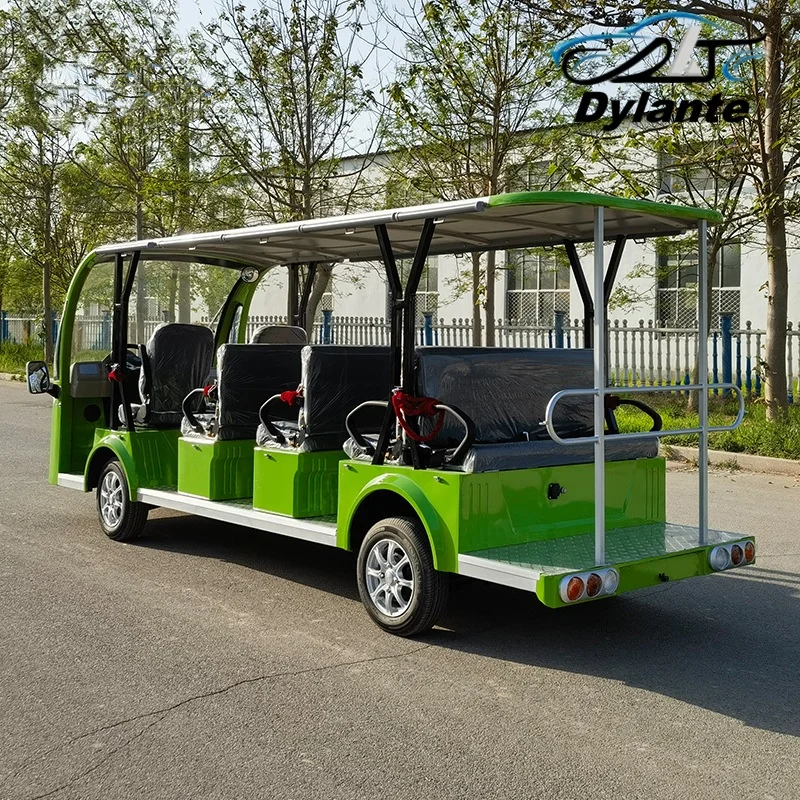

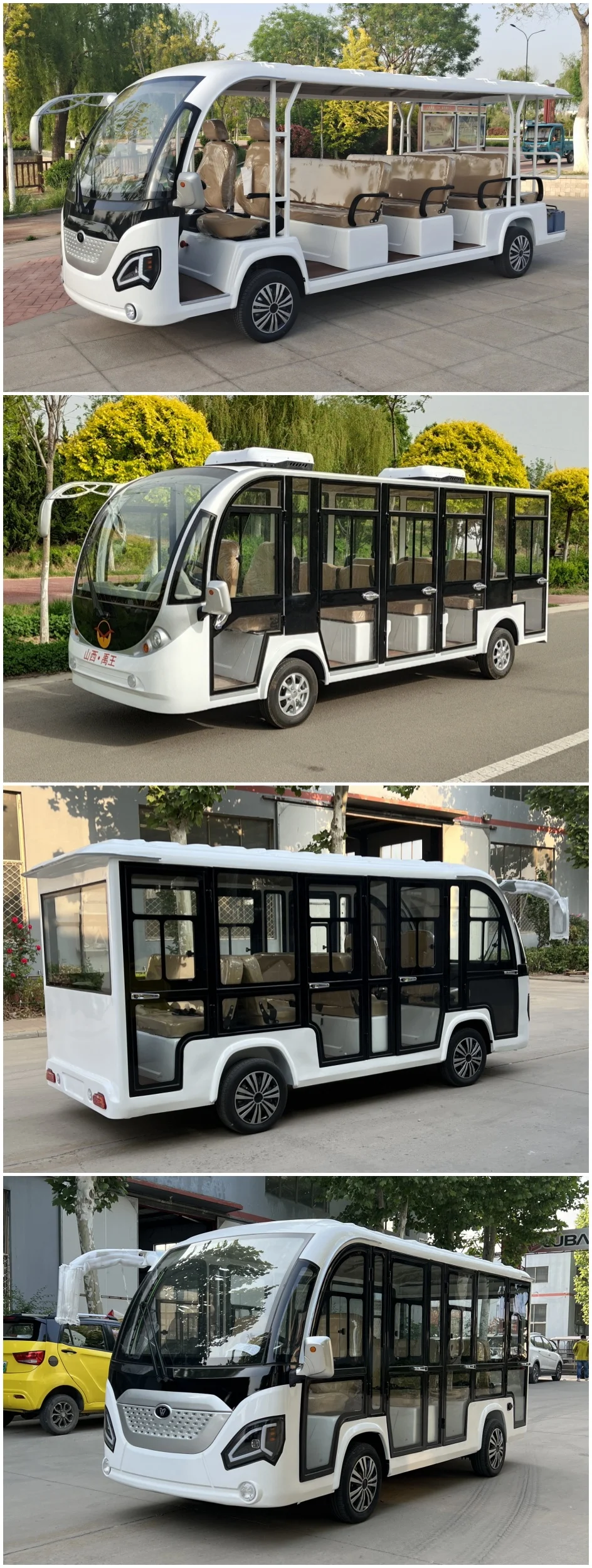

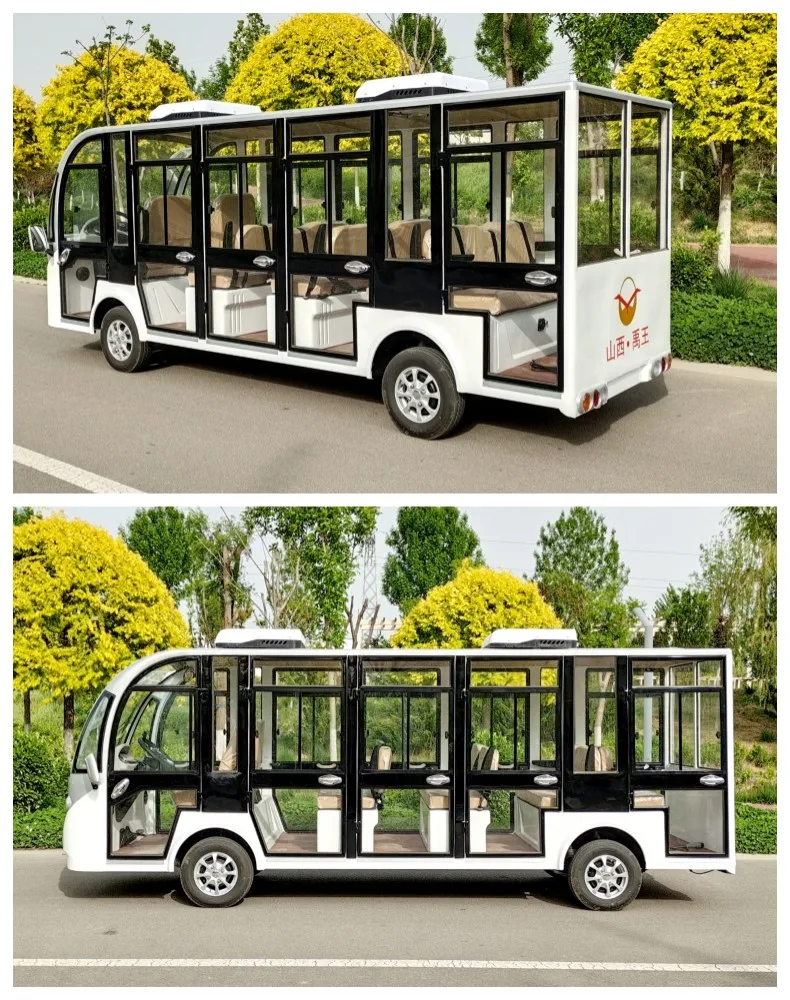

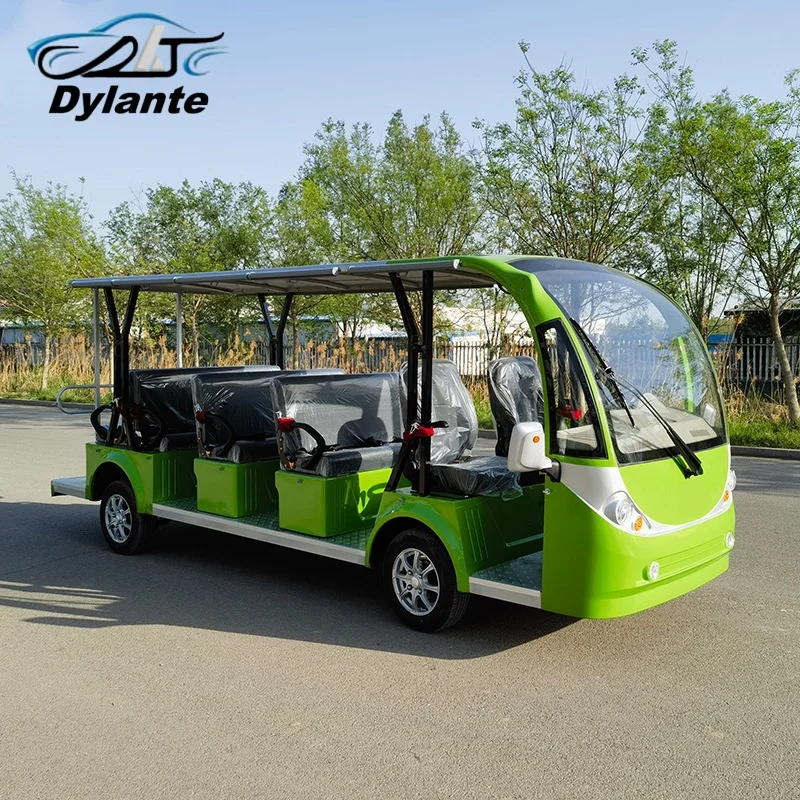

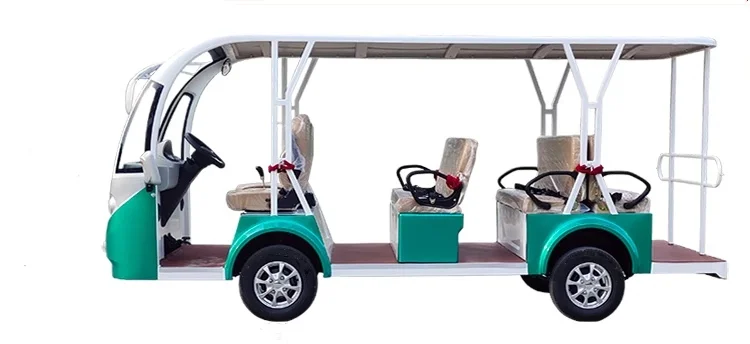

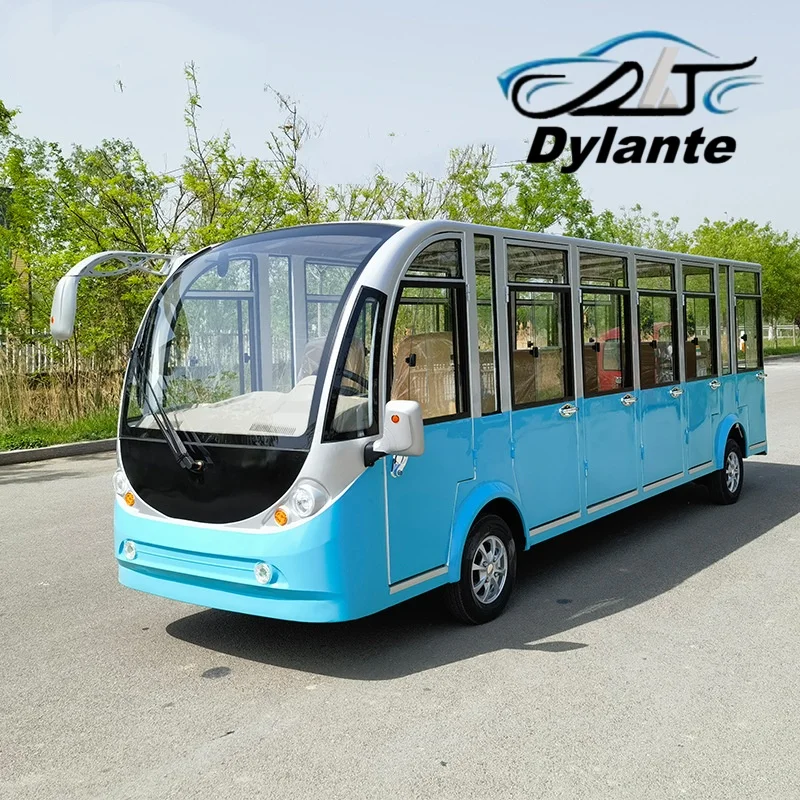

For Sale 17 Seater Chinese City Vehicle Electric Bus With 5000W/7000W Powerful Motor High Strength Steel Scenic Sightseeing Car
Dear buyer:
First of all, thank you for your interest in our products.
Please contact customer service before placing an order to confirm the model, color, configuration, etc.
Sales Name: Mike Xie Email: [email protected]
W App/WeChat: +86 13853401150
Technical parameters |
Model | Three rows of 8 seats | Four rows of 11 seats | Five rows of 14 seats |
Curb weight (KG) | 740 | 980 | 1060 |
Dimensions (mm) | 4200*1510*1920 | 5100*1510*1920 | 5750*1510*1920 |
wheelbase(mm) | 2670 | 3450 | 4230 |
Front wheelbase(mm) | 1290 | 1290 | 1290 |
Rear whee1base (mm) | 1280 | 1280 | 1280 |
Minimum ground clearance (mm) | 290 | 290 | 290 |
Turning radius (m) | ≤5.9 | ≤5.9 | ≤5.9 |
Maximum speed (km/h) | 27 | 27 | 27 |
Gradeability | 30% | 30% | 30% |
Cruising range (km) | 80-100 | 80-100 | 80-100 |
Braking distance (m) | ≤3.5 | ≤3.5 | ≤3.5 |
Electrical System |
Electronic control | Inbor | Charger | Vehicle-mounted intelligent charger |
Battery | 72v (6 Chaowei batteries) | charging time | 8-10 hours |
motor | 4KW /5KW/7.5KW | Charging input voltage | 220V/110V |
Systems |
seat | Seat (leather fabric + high resilience PU) |
car body | Steel frame + metal shell/ABS molding |
meter | LCD instrument display (including voltage, current, speed, mileage, lighting, front and rear commutation and other signals) |
rearview mirror | Manual exterior mirrors |
Lights and Signals | Headlights, turn signals, combined rear tail lights, brake lights, electric horns |
sound | Car MP3 player, professional speakers. Reversing image |
switches | Start switch, light and wiper combination switch, forward and backward gear switch |
car frame | steel structure frame |
steering wheel | Polyurethane foam steering wheel |
undercarriage |
Power Transmission System | Infinitely variable speed system |
Steering System Front Axle | Rack and pinion steering gear |
Front axle and suspension | MacPherson independent suspension |
Rear axle and suspension | Integral full-body rear axle + high-strength leaf spring + cylinder hydraulic shock absorber |
Braking System | Brake assist. Front disc brake, rear drum hydraulic brake, parking brake |
Packing & Delivery
Our Company
DEZHOU DYLANTE VEHICLE CO.,LTD.

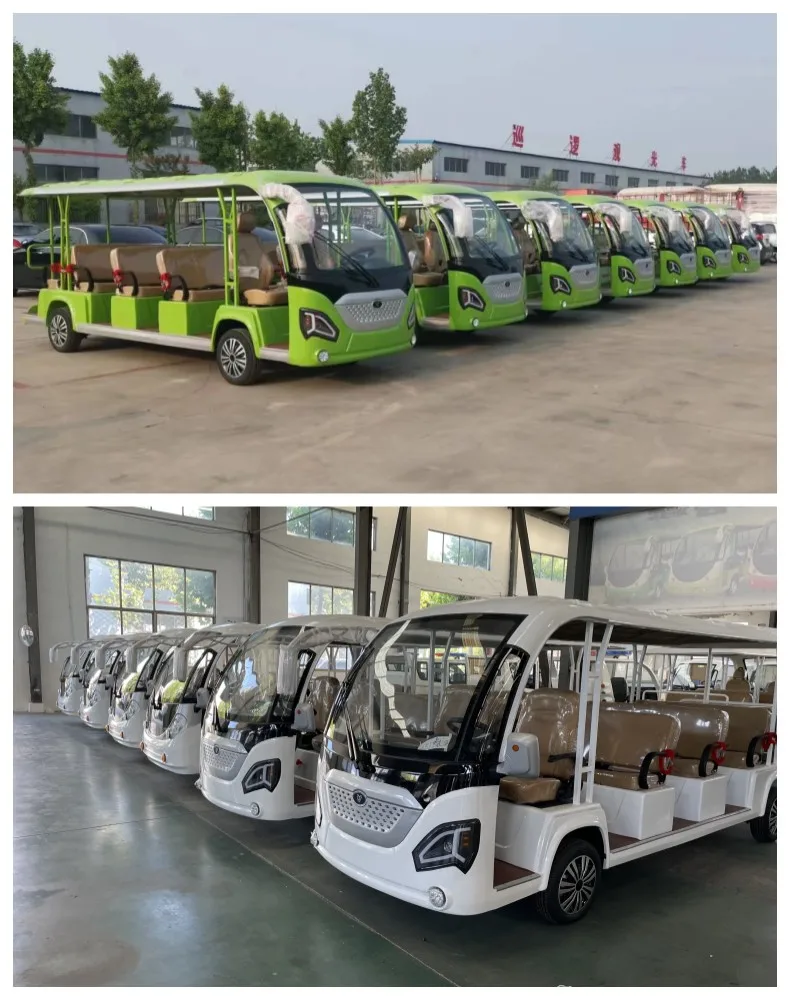

DEZHOU DYLANTE VEHICLE CO.,LTD. is located in the production base of new energy vehicles in Wucheng County Industrial Park, Dezhou.
it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, including: electric golf cart, electric sightseeing car，electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, electric trucks, rubbish trucks, fire trucks,various customized electric vehicles based on standard ones, etc.. It has a workshop area of 3,000 square meters with 4 assembly lines inside. Its daily production capacity is 100 units per day; this can be adjusted with the order volume increasing. In addition, we customise your exclusive electric vehicle with short delivery times and high quality.
We can be your reliable partner for electric golf carts in China.
FAQ
Q1. Do you accept to customize the vehicles as per our special request?
Answer: Yes, we customize vehicles as per customer's speical request with reasonable cost and lead time, as long as the customization is not related to the chassis modification.
Q2. What is your warranty term?
Answer: We provide 1 year warranty. And for any failed part under warranty, if it can be repaired at your side and the repair cost is lower than the valve of the part, we will cover the repair cost; otherwise, we will send replacements and cover the freight cost if any.
Q3. Do you provide after service spare parts?
Answer: Yes, we provide all the spare parts to our vehicles, even 5 years after we stop the production of the vehicle. For your easier working to select the spare parts, we also supply parts manual.
Q4. Do you provide technical support?
Answer: Yes, we provide technical support by email and phone. If necessary, we can also send our engineer to your place.
Q5. Do you provide vehicle assembly service if we buy the vehicles in SKD or CKD way?
Answer: When the vehicle is in SKD way, the reassembly is just bolt and nut work, it is not difficult at all. Unless you have the assembly capability, we do not sell the vehicles in CKD way. If you do have bigger volume, we can send our people to give instructions.
Q6. Do you accept OEM order?
Answer: Yes, as long as the order quantity is reasonable , we will accept.
Q7. What are your terms to be your agent/dealer in my country?
Answer: We have several basic requirements, firstly you shall be in electric vehicle business for some time; secondly, you shall have the capability to provide after service to your customers; thirdly, you shall have the capability to order and sell reasonable volume of electric vehicles.
Q8: What is your payment term?
Answer: For new customers, our typical payment term is ‘T/T 30% deposit against order confirmation, T/T 70% before container loading’. Irrecoverable L/C at sight is also acceptable. For old customers, our payment term can be more flexiable. Please contact us for more information.
