1.professionally integrated circut with high precision and high speed.In time regulation on speed and force,setup the origin point at discretion.

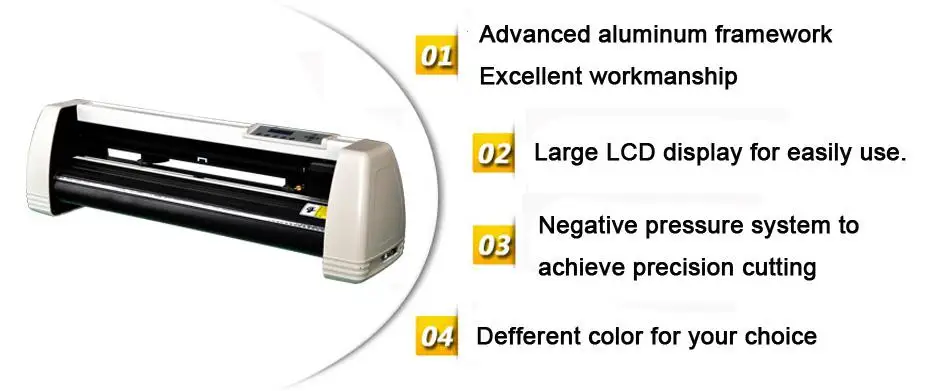

2.advanced aluminum alloying structure excellent workmanship,long used life and durability.

3.origin imported high speed stepping motor,low noise,cutting more precisely.

4serial and USB port,large memory.quick off-line.

5.domestic popular plotting language,supporting many popular kinds of software on the market.

6.unique double cutter positon,double pressing strips for processing different kinds of materials.

7.unique blade soft landing function,easy for cutting.

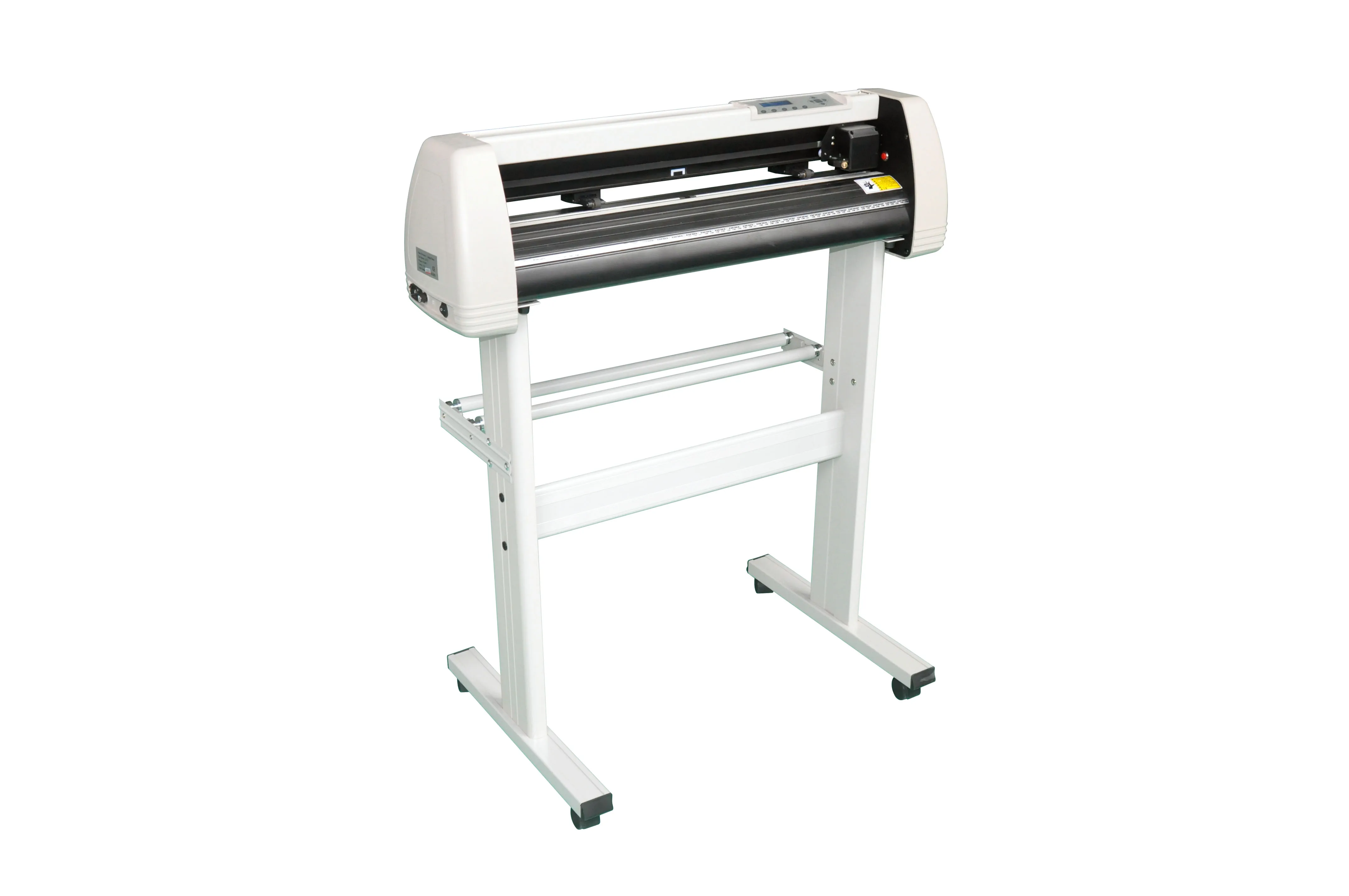

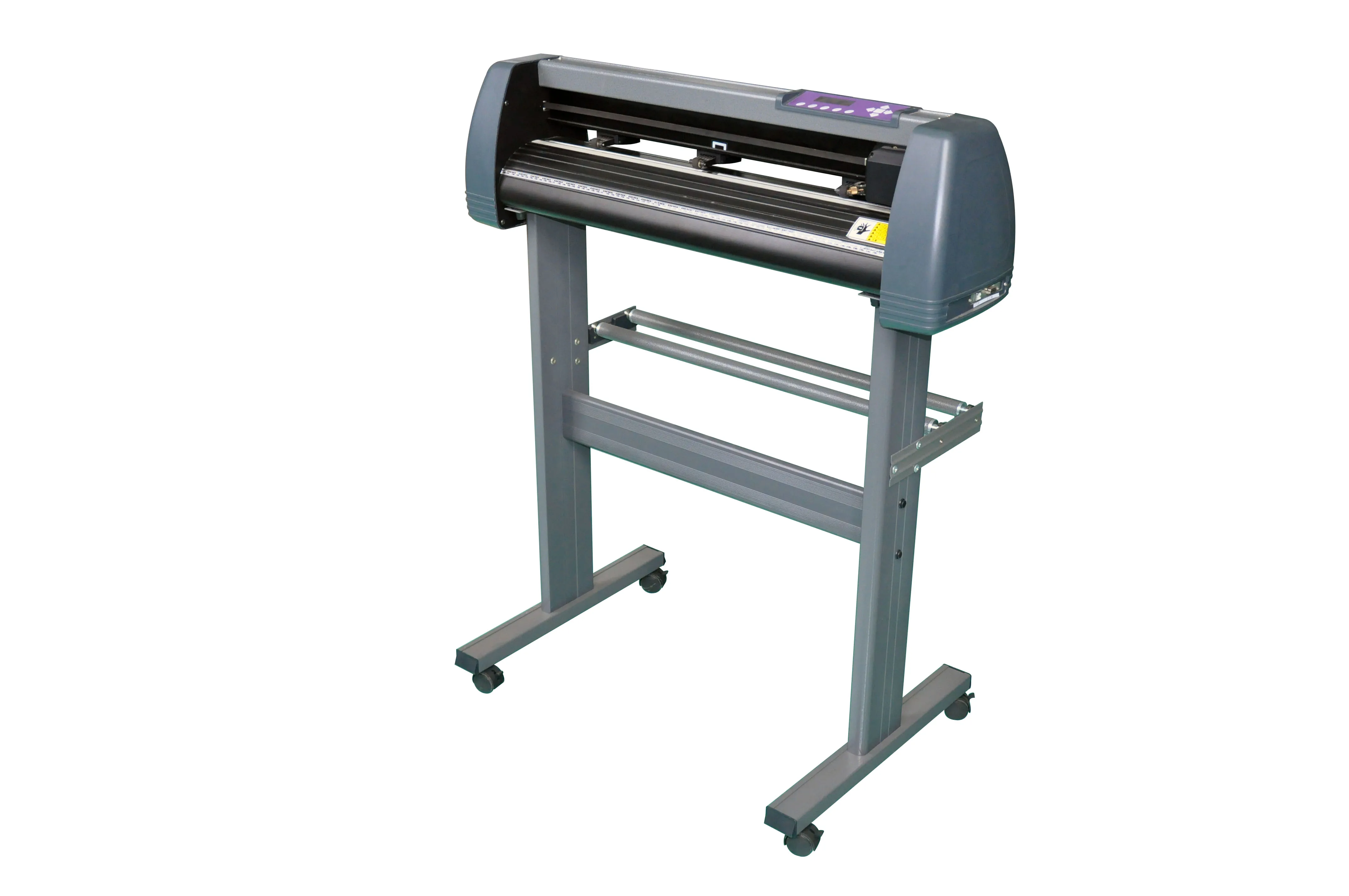

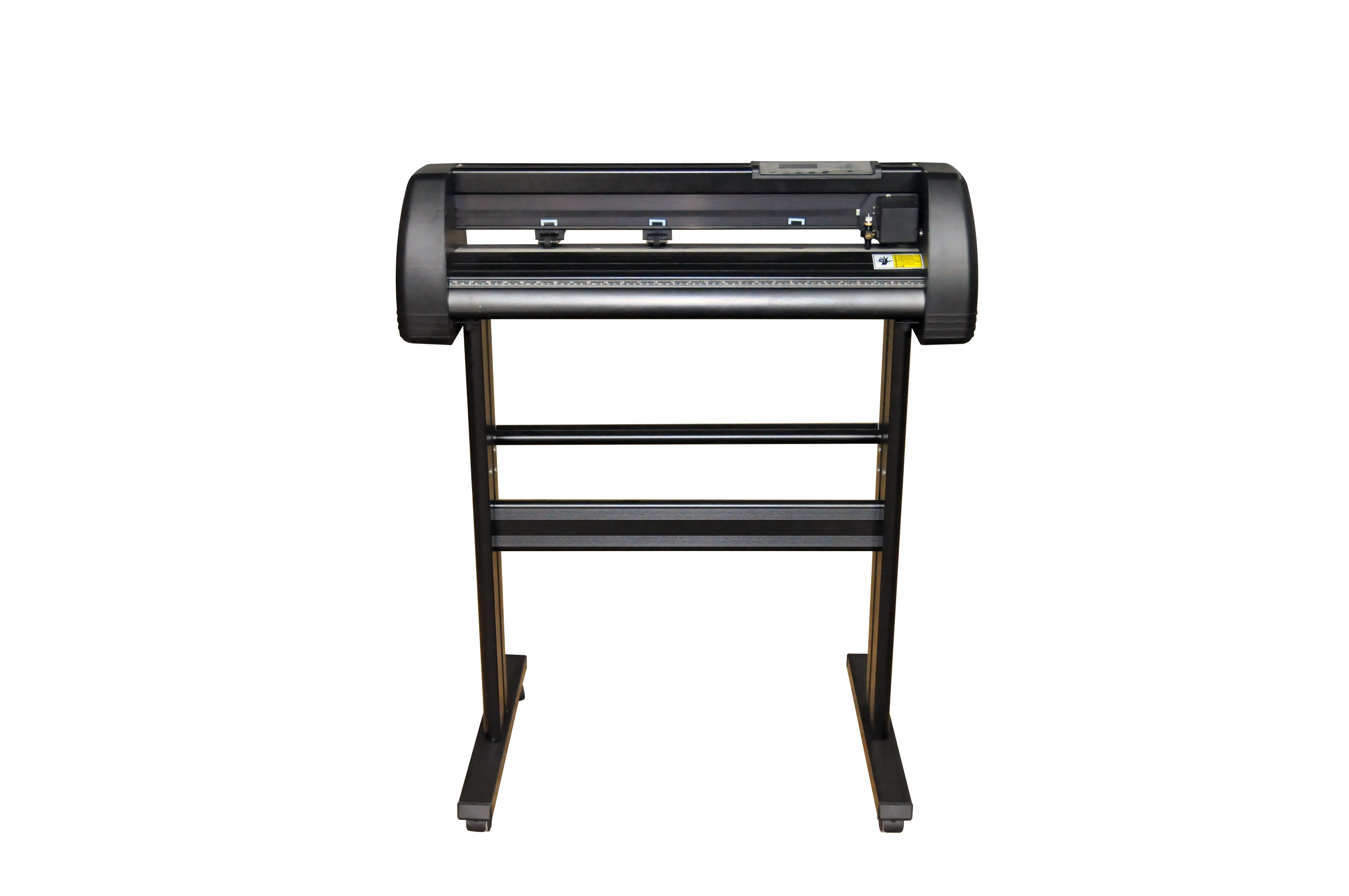

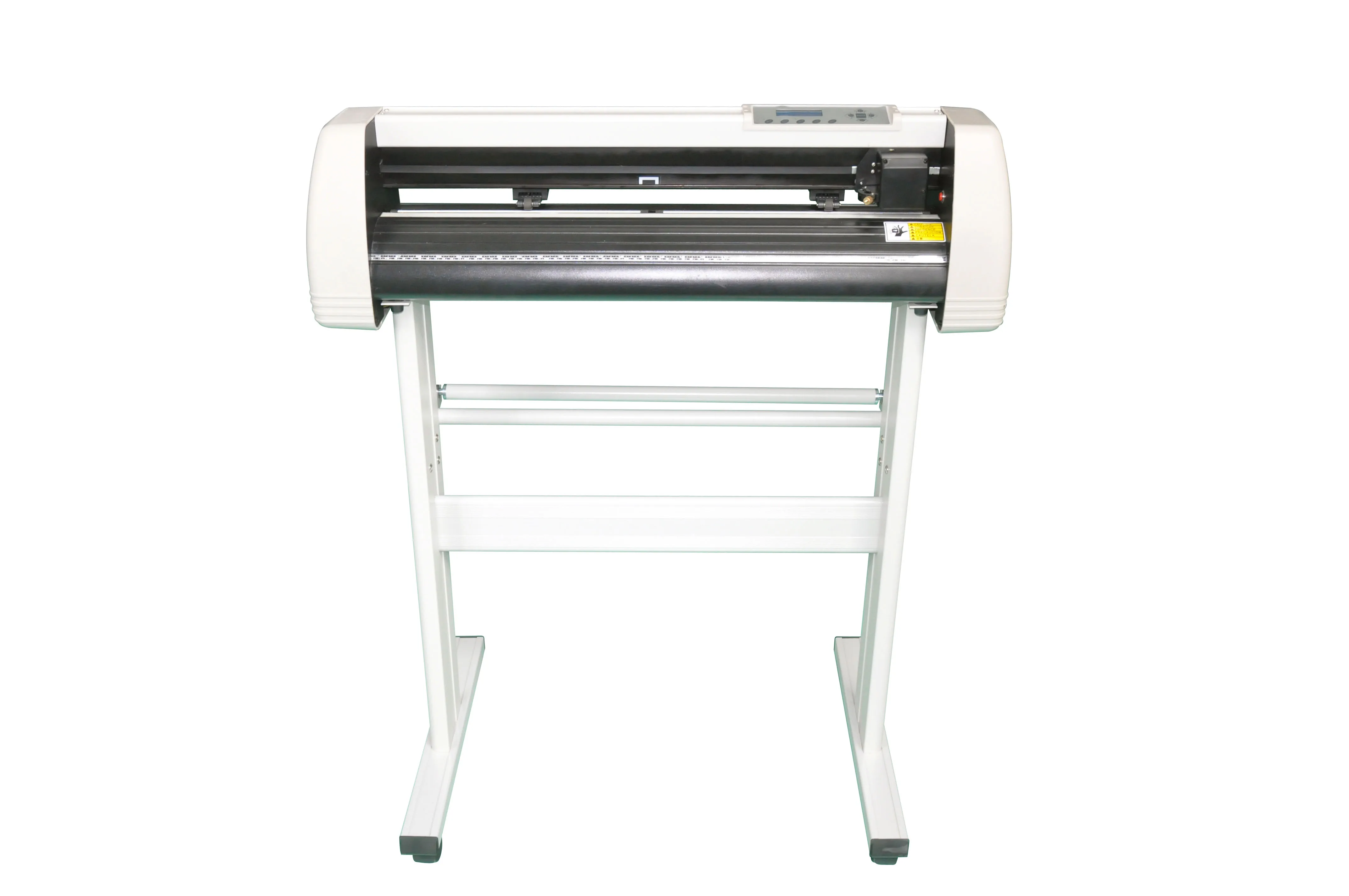

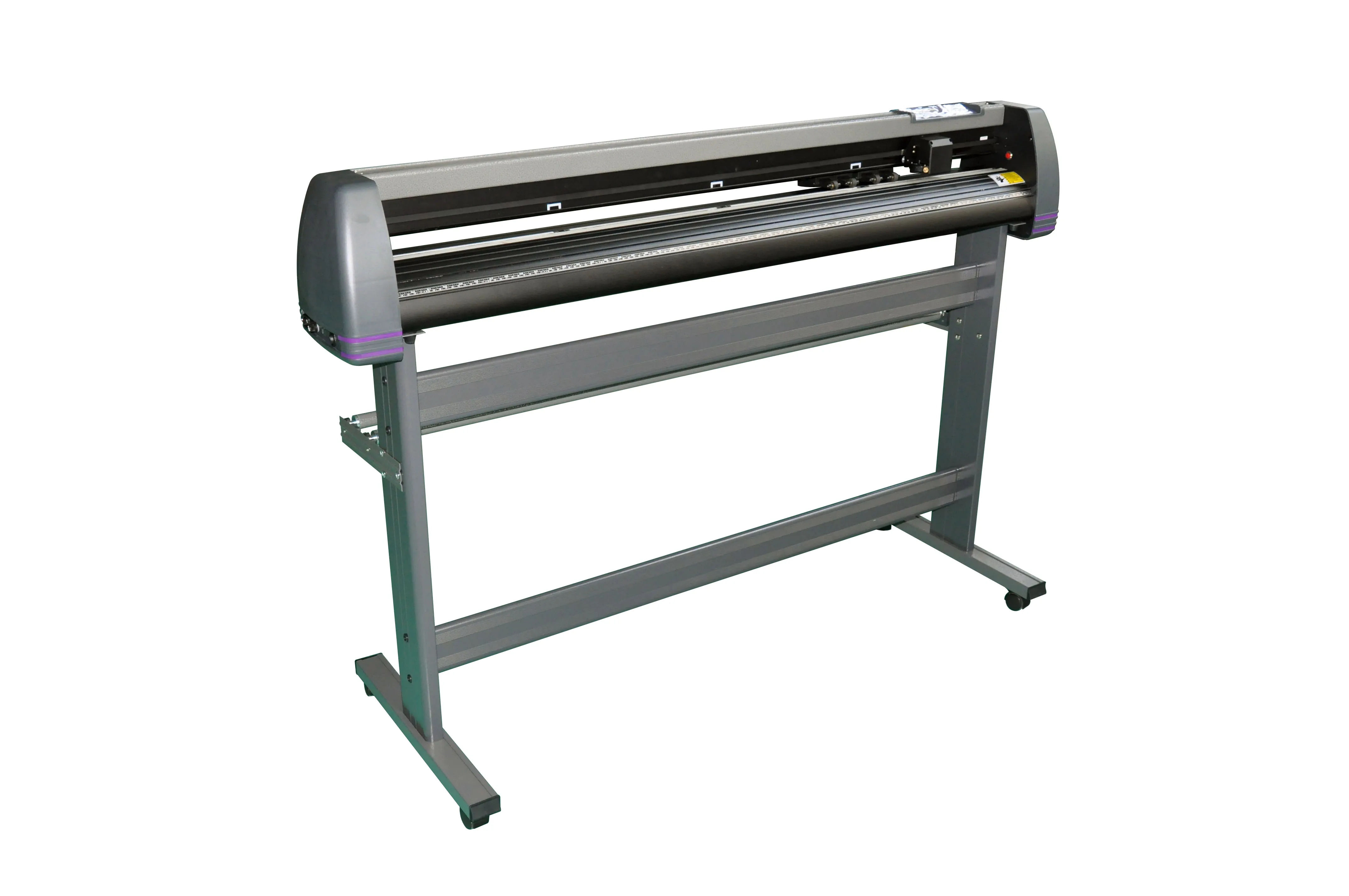

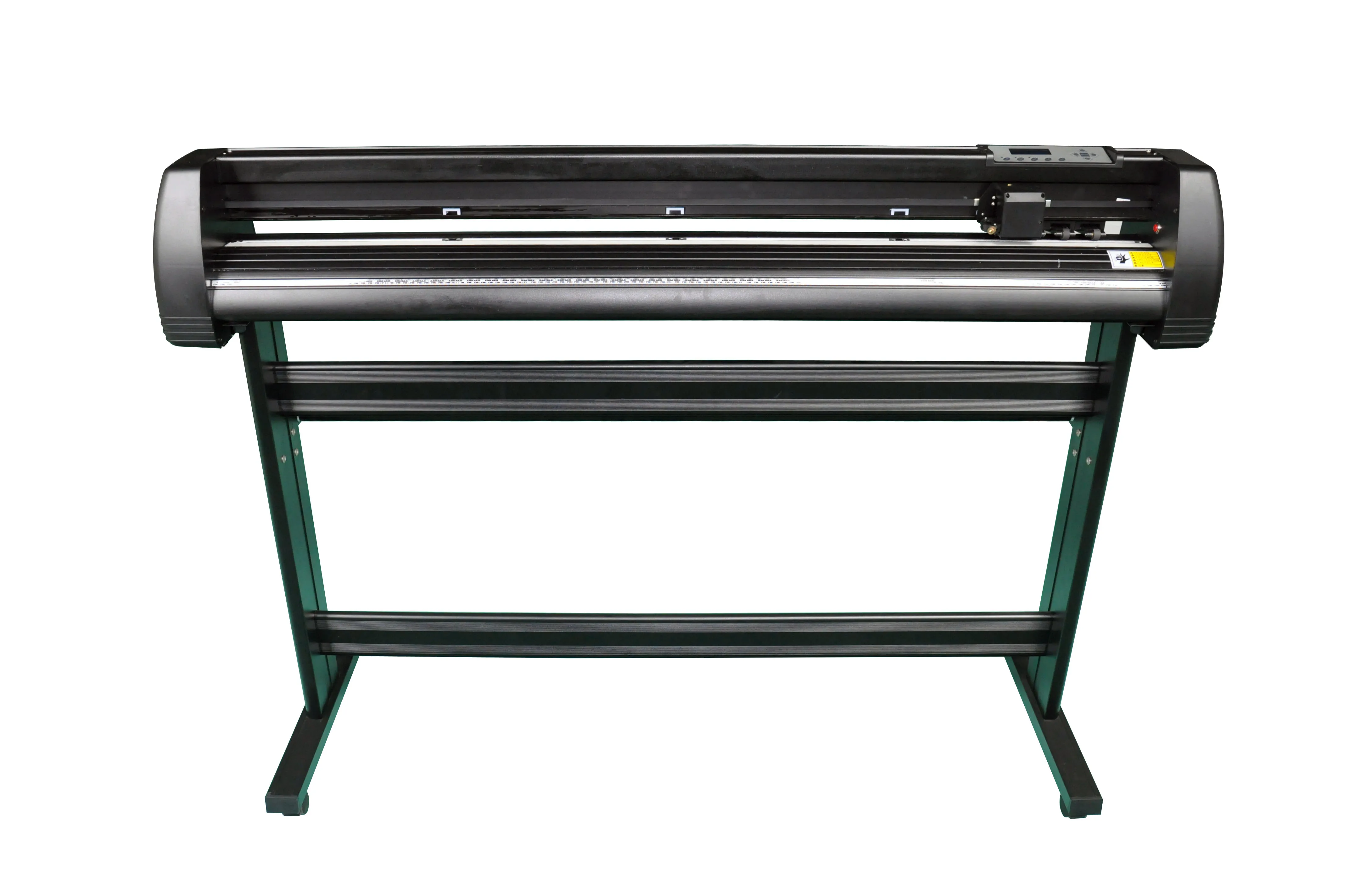

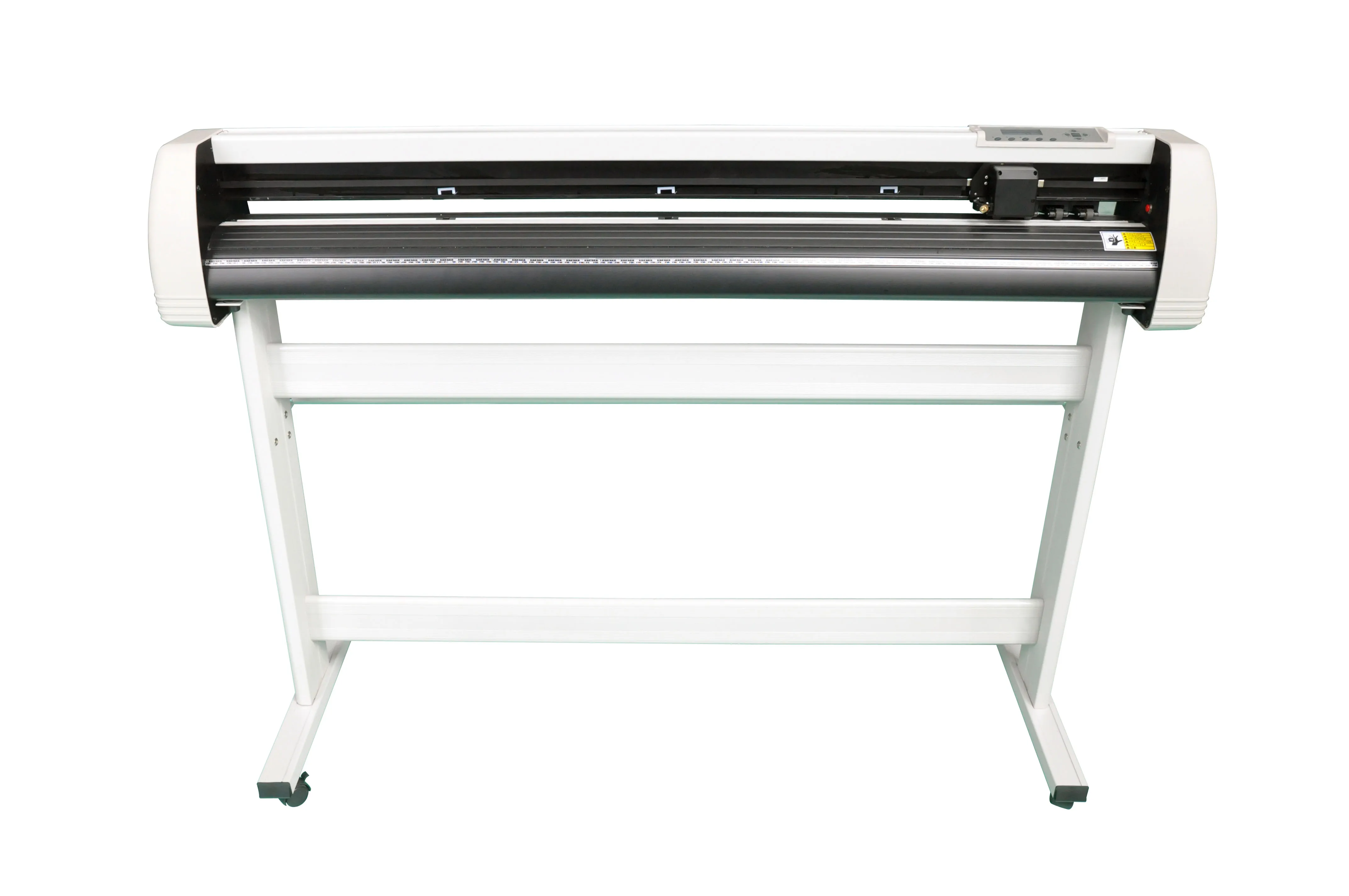

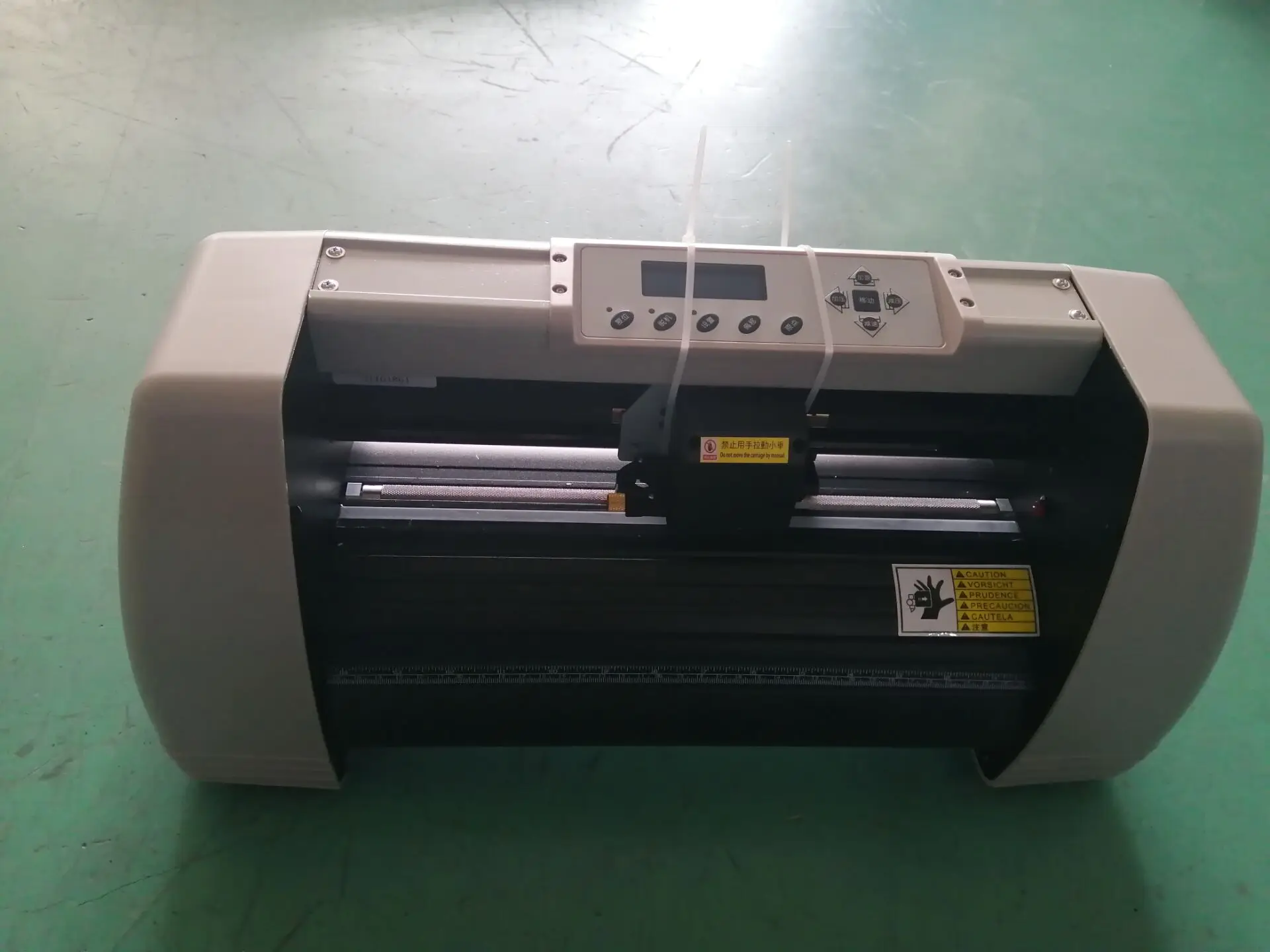

Practical type with screen display

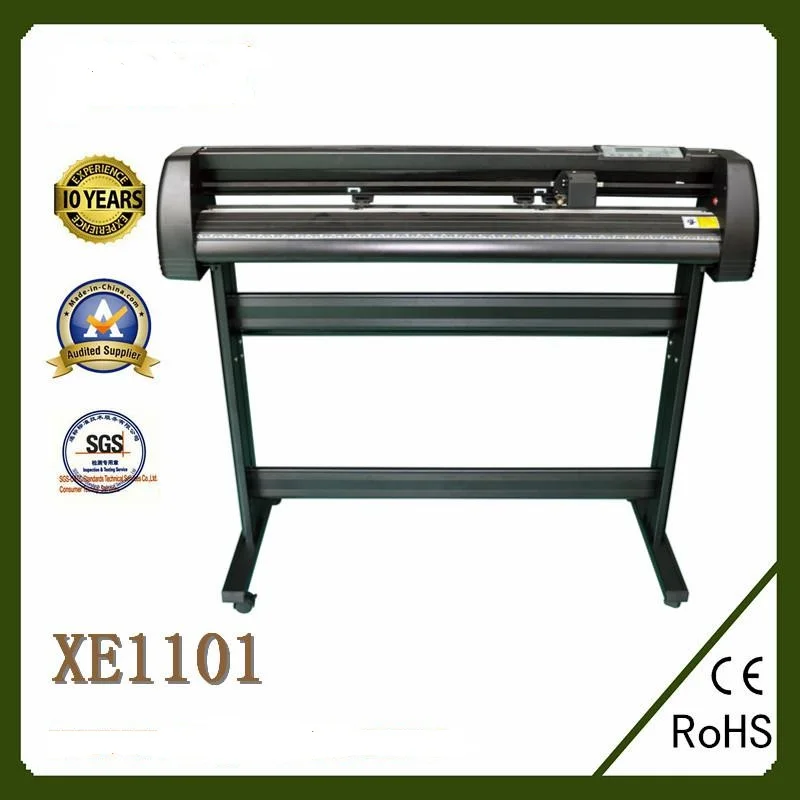

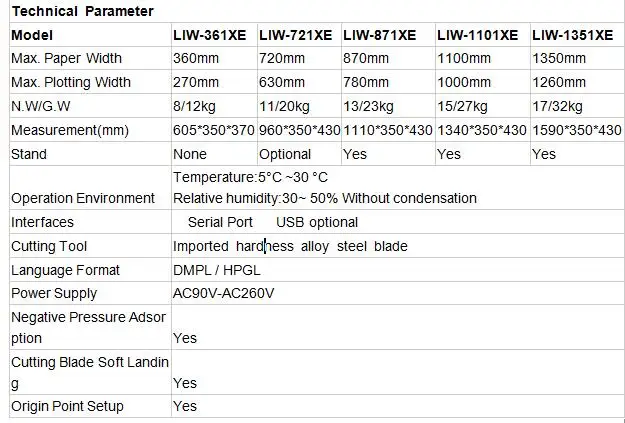

	Practical 361	Practical 721	Practical 871	Practical 1101	Practical 1351
max paper width	360mm	720mm	870mm	1100mm	1350mm
max plotter width	270mm	630mm	780mm	1010mm	1260mm

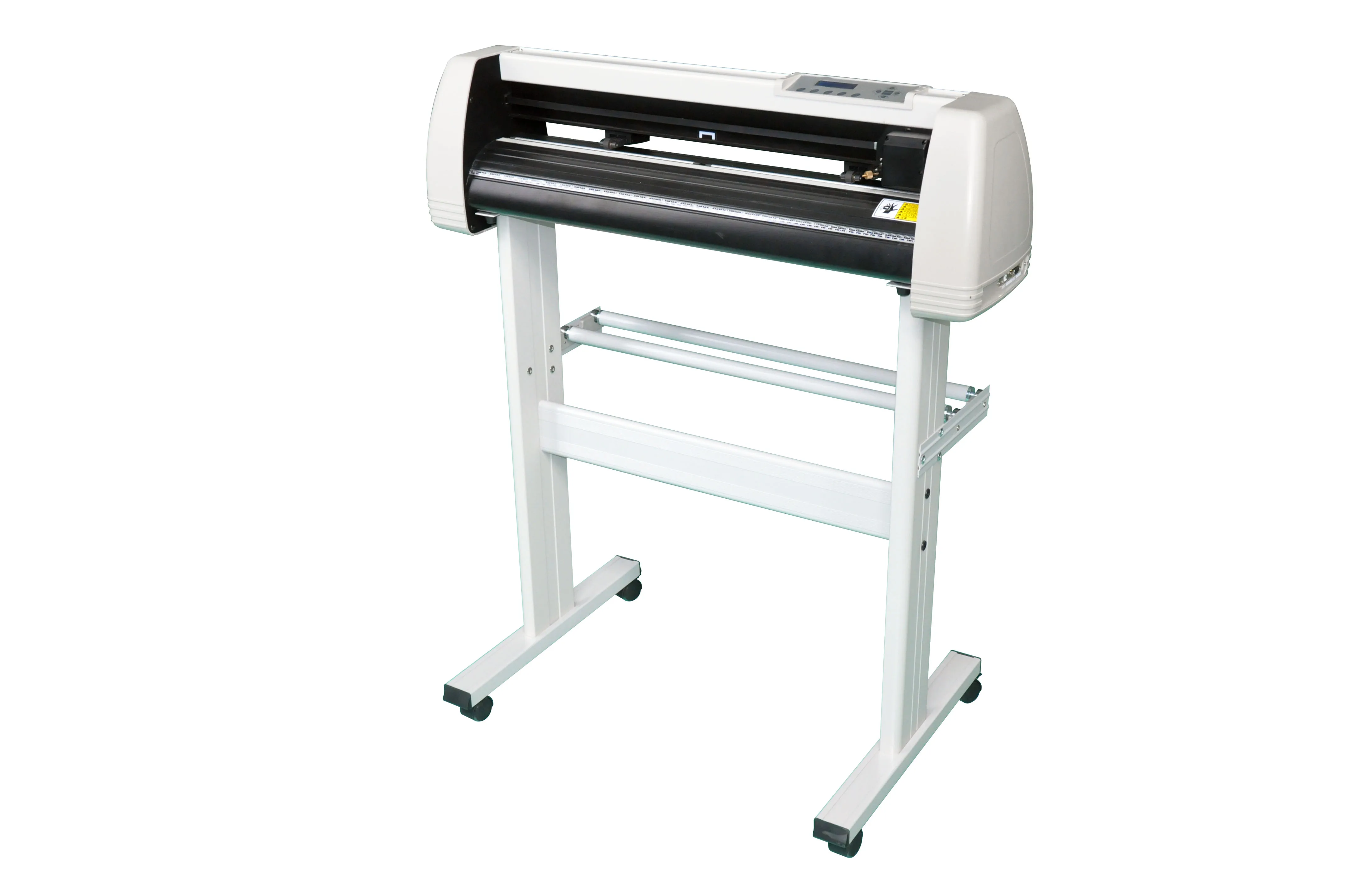

stand	simple iron stand	alloy stand
mainborad	double layer mainboard/JK-6 mainboard	square mainboard/doulbe layer mainboard/JK-6 mainboard
carriage	normal single/double position carriage/optical eye carriage/liner carraige
speed	square mainboard/double layer mainboard:10~800mm/s(decimal) / JK-6main board:10~1000mm/s(decimal)
pressure	square/double layer main board:10~500g(decimal) / JK-6mainboard:0~600g(decimal)
Buffer	square/double layer mainboard:1M/4M ; JK-6main board:1/4M
Screen display	display speed,pressure,(square/double layer mainboard,GH with memory/EH without memory/INCH calc with INCH) (JK-6 mainboard:Jinka/USCutter/Refine/Cutting plotter-JK)
connection port	square/double mainboard:Serial+USB/Parallel/JK-6 mainboard:Serial+USB
adjustment	support adjust speed or pressure while running
software	ARTCUT/Master/CorelDRAW/FlexiSTARTER Jinka Edition 10.5(contour cut need optical eye carriage)
media	thickness less than 1mm with cussion media like stiky note,self-adhesive paper..etc
redraw	yes
repeat accuracy	0.127mm
resolution	0.0245mm/step
power supply	square/double mainboard:quad(-8V,5V,16V,36V)power supply 70W / JK-6mainboard:threeway(5V,15V,30V)power supply 65W
language format	DMPL/HPGL
voltage	85~264V

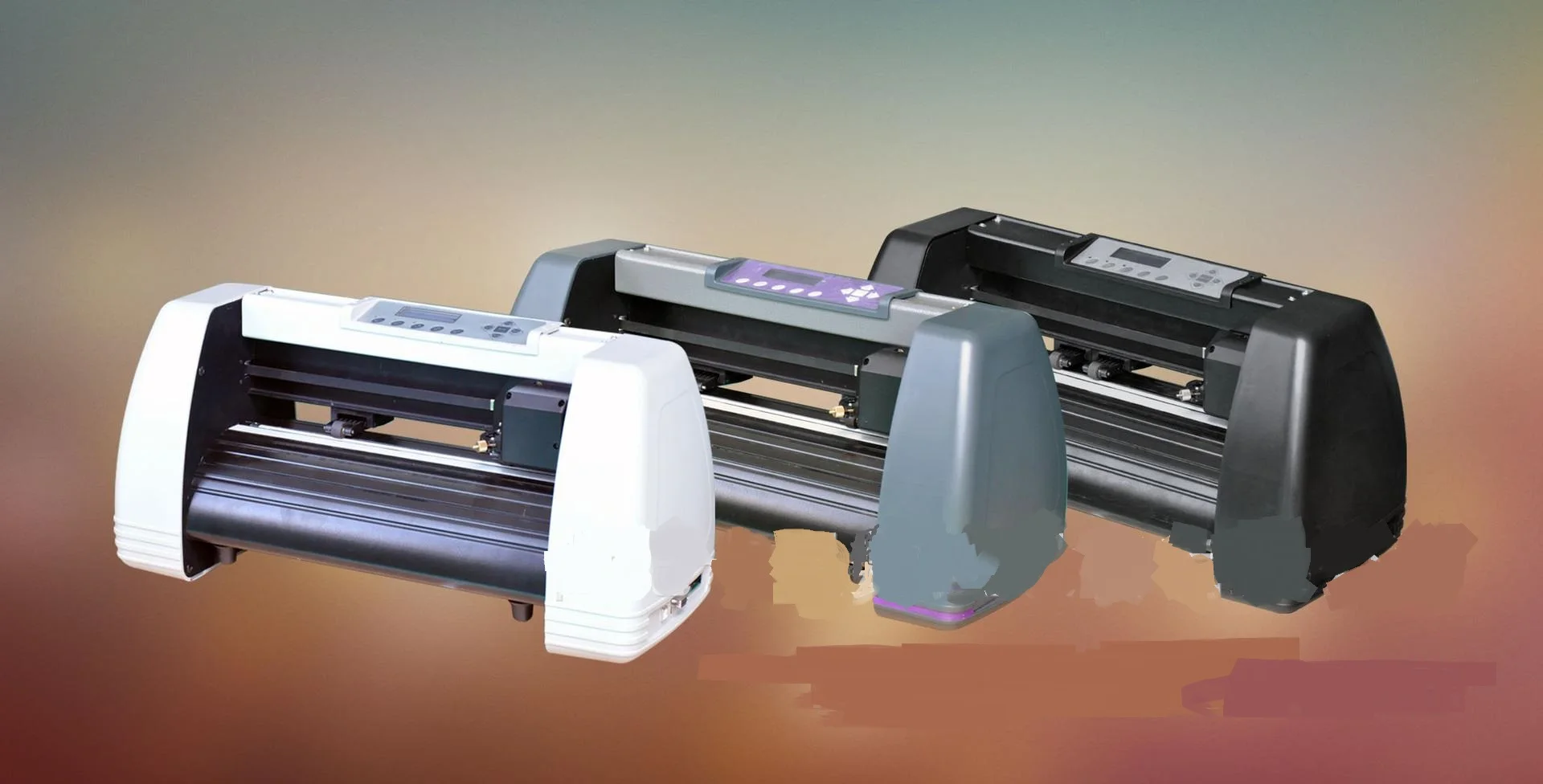

color	light gray,dark gray,black
computer	WindowsXP/WindowsVista/Windows7/Windows8(32bit&64bit)
environment	temperature:+5°C±35°C,related humidity:30%~50%(without condensation water)
remark:“()”included instruction info,“/” say optional.

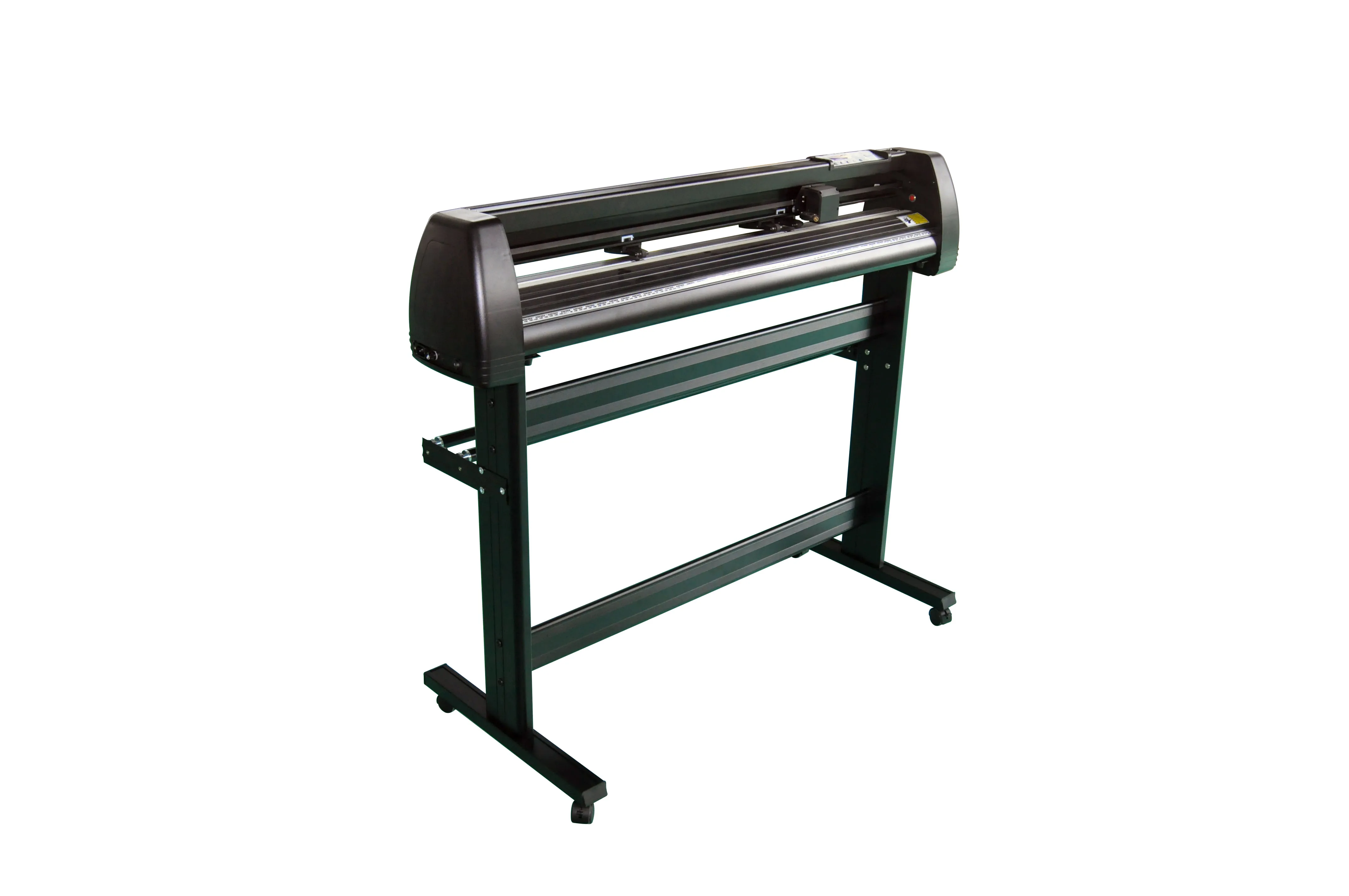

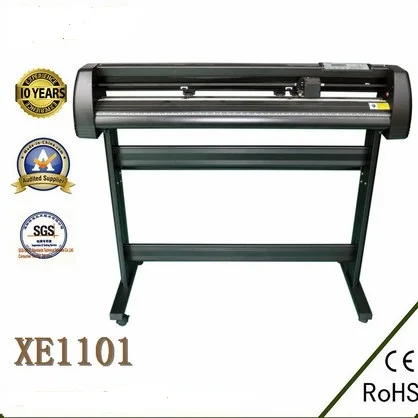

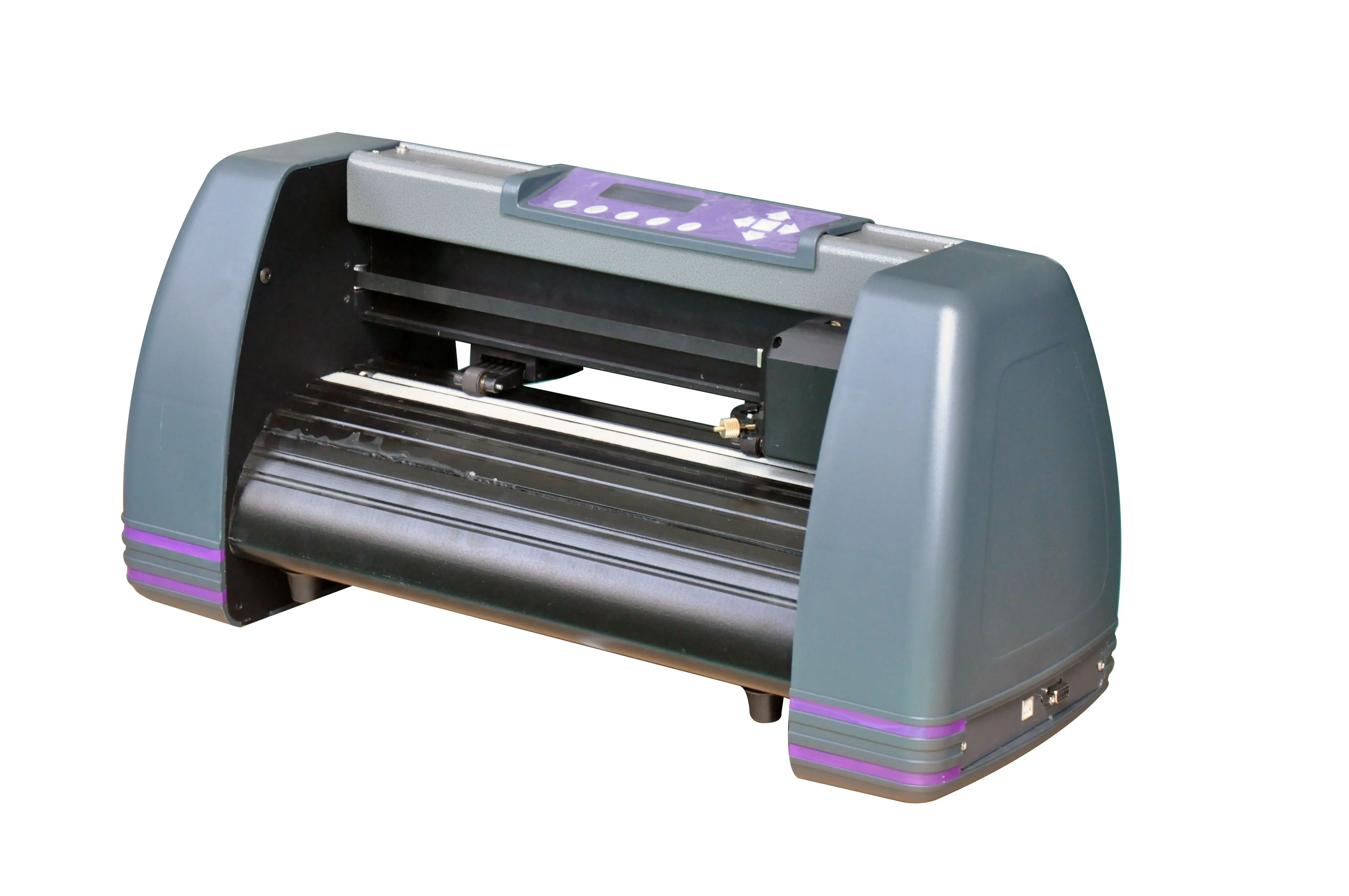

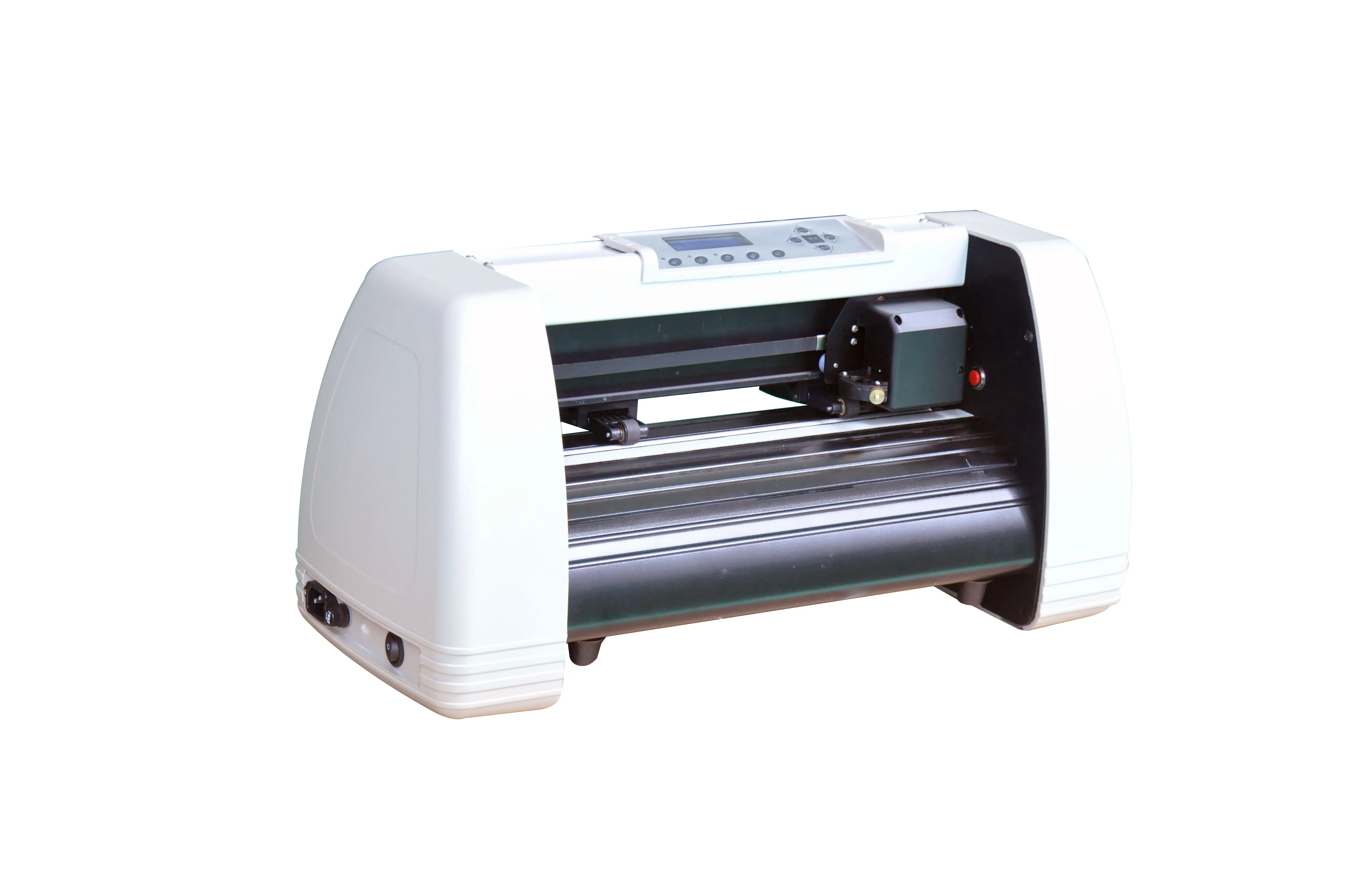

The XE series cutting plotter brings to the customer high cutting quality and cost-effectiveness machines. The business owner can start their business at a small cost.
