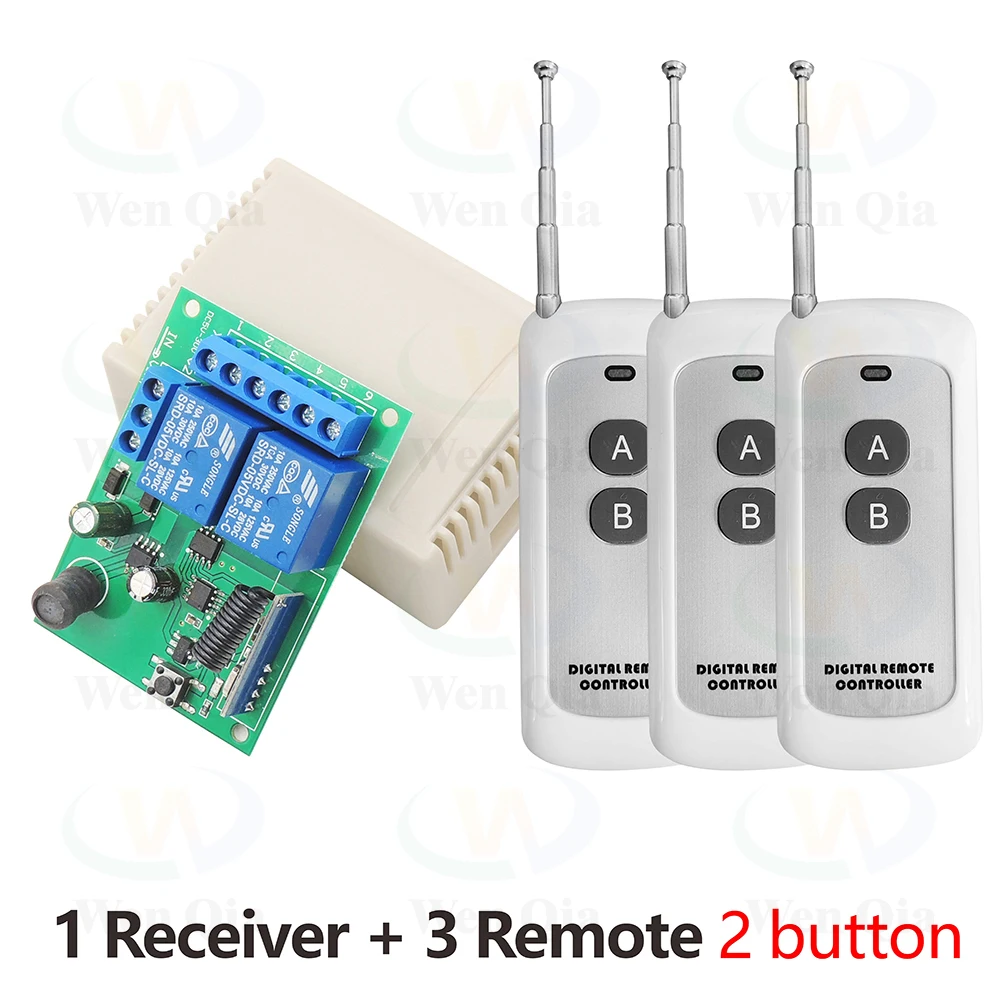

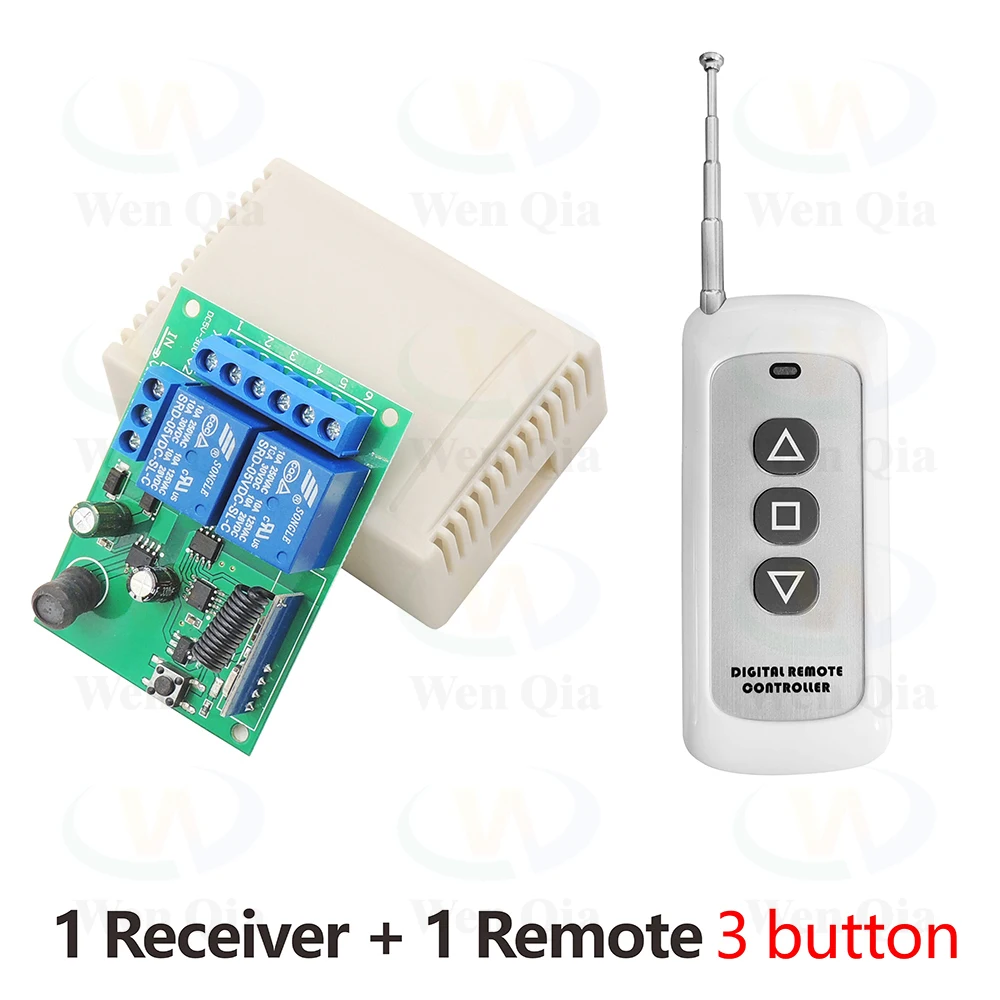

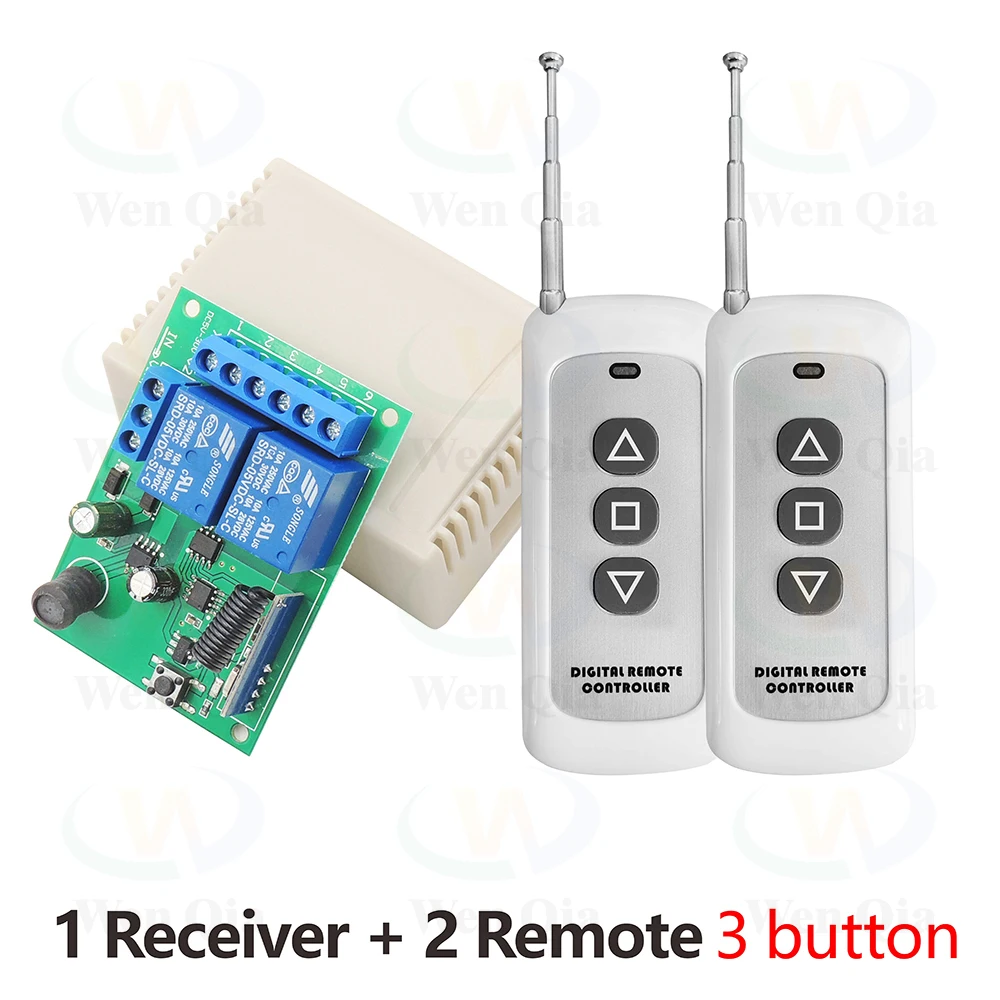

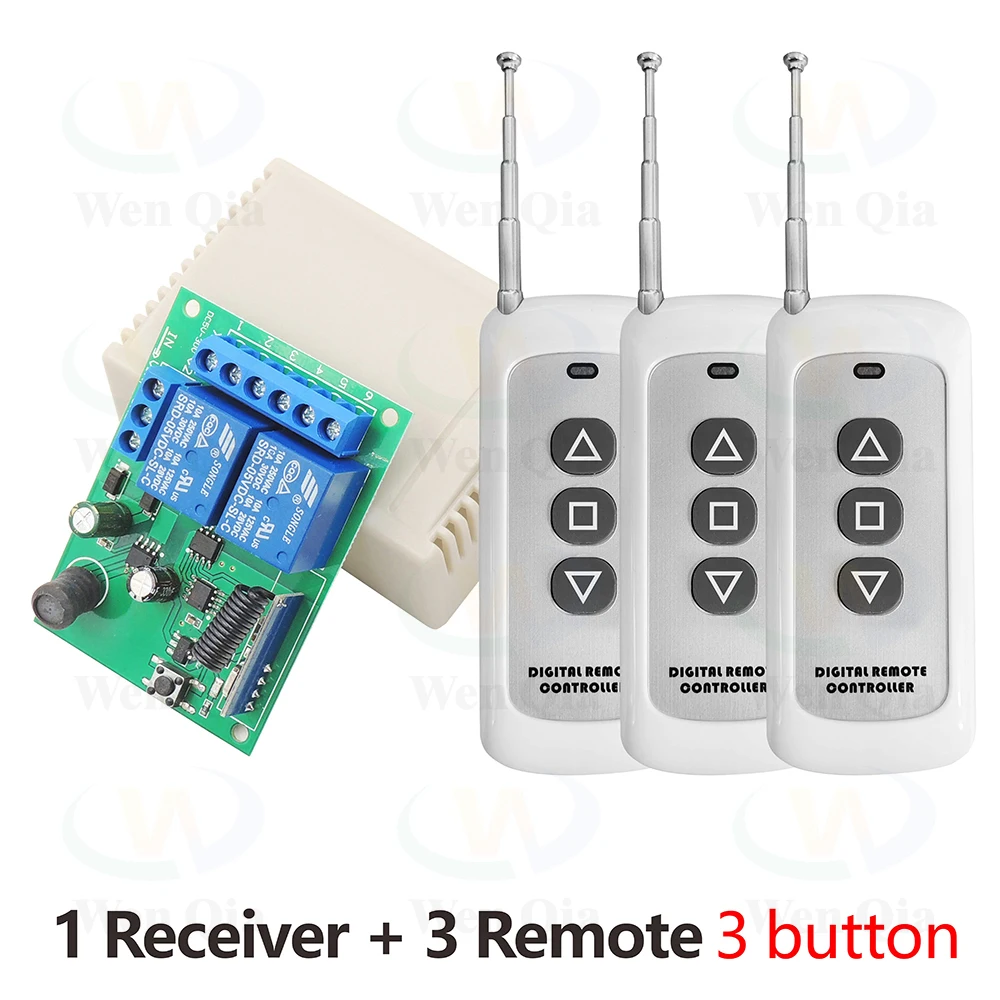

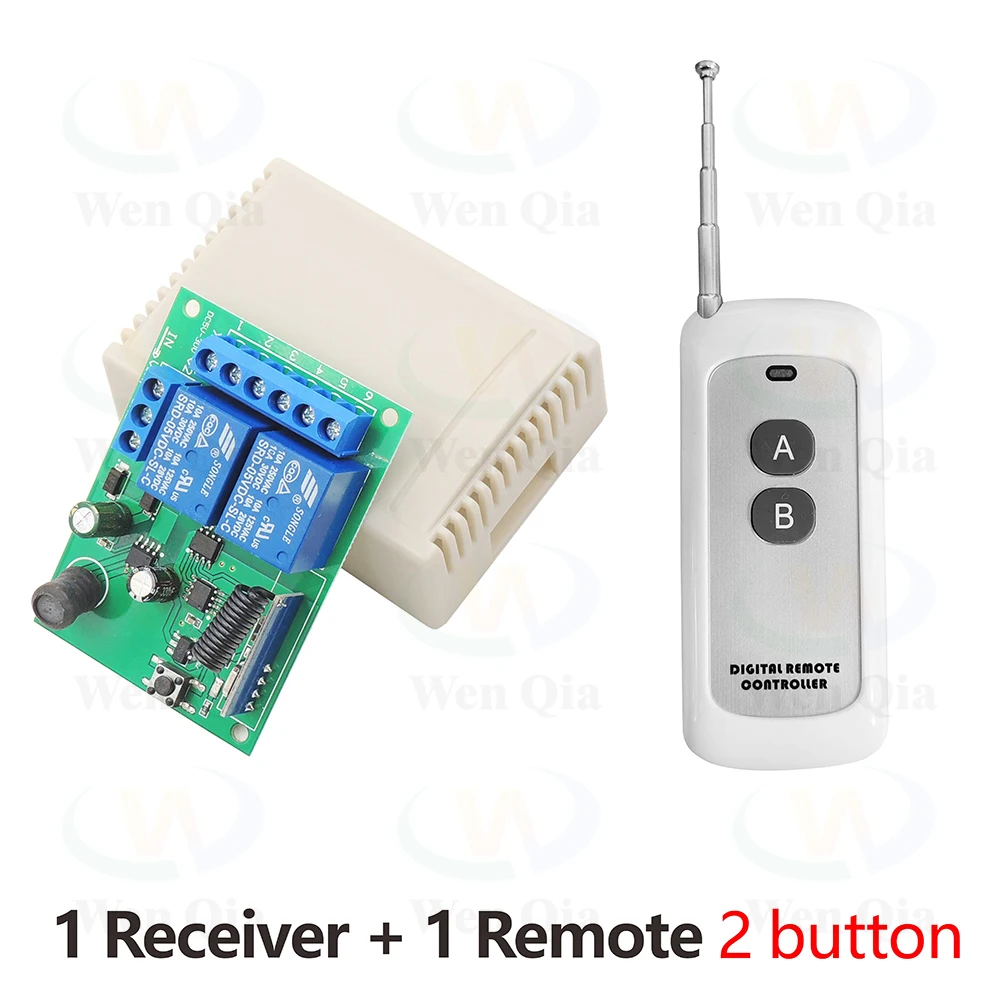

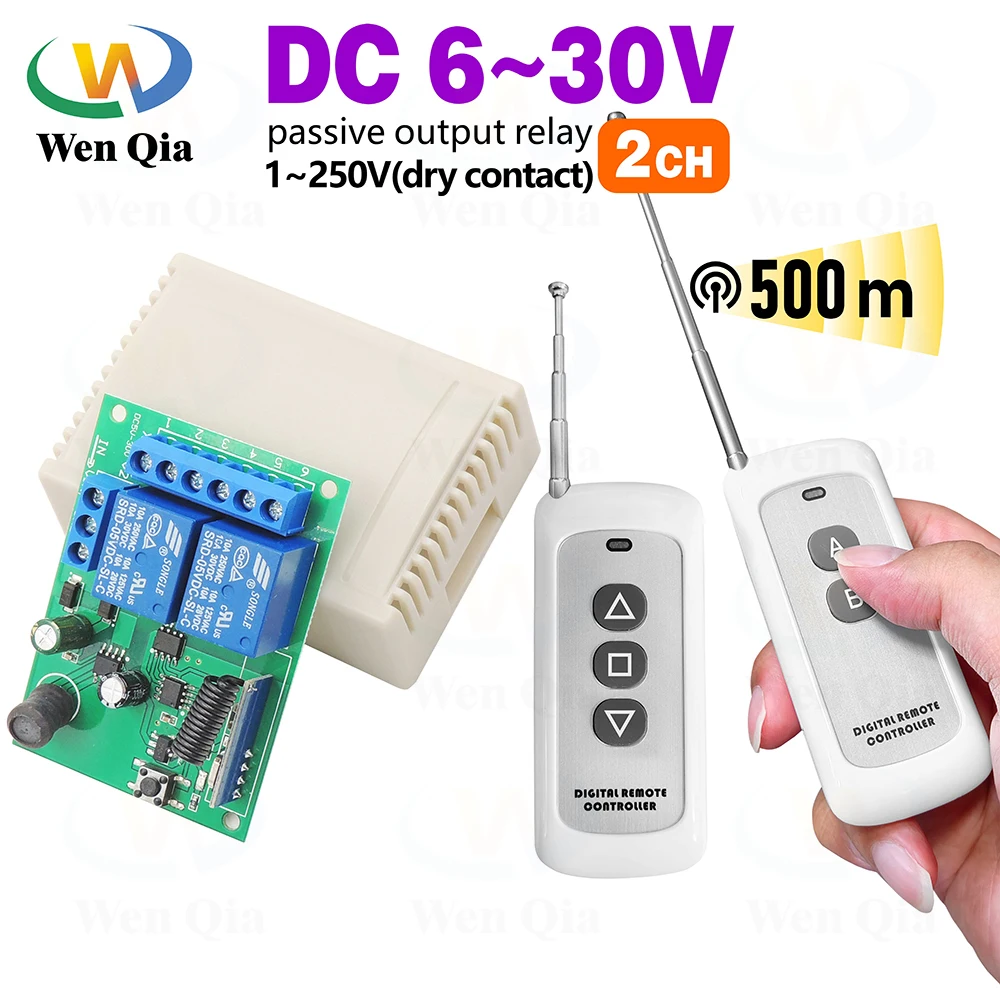

433MHz DC 6V 12V 24V 2CH Universal Wireless Remote Control Switch,500 Metres Range Transmitter, RF Receiver,for Lamp/Motor/DIY

Product advantages:
▶ The working voltage is DC 6V~30V, which means that any voltage within this range can be used, such as DC 6V 12V 24V 30V.
▶ This receiver is a dry contact receiver, which has a wider range of applications and is easier to DIY.
▶ 2 channels, can connect multiple devices, such as multiple lights, your garage system, motors (truck tailgate, lift table, curtains, garage door), DIY
▶ Equipped with 10A relay, suitable for most equipment
▶ The receiver can store 20+ remote controls, which means you can use 20+ remote controls to control the receiver

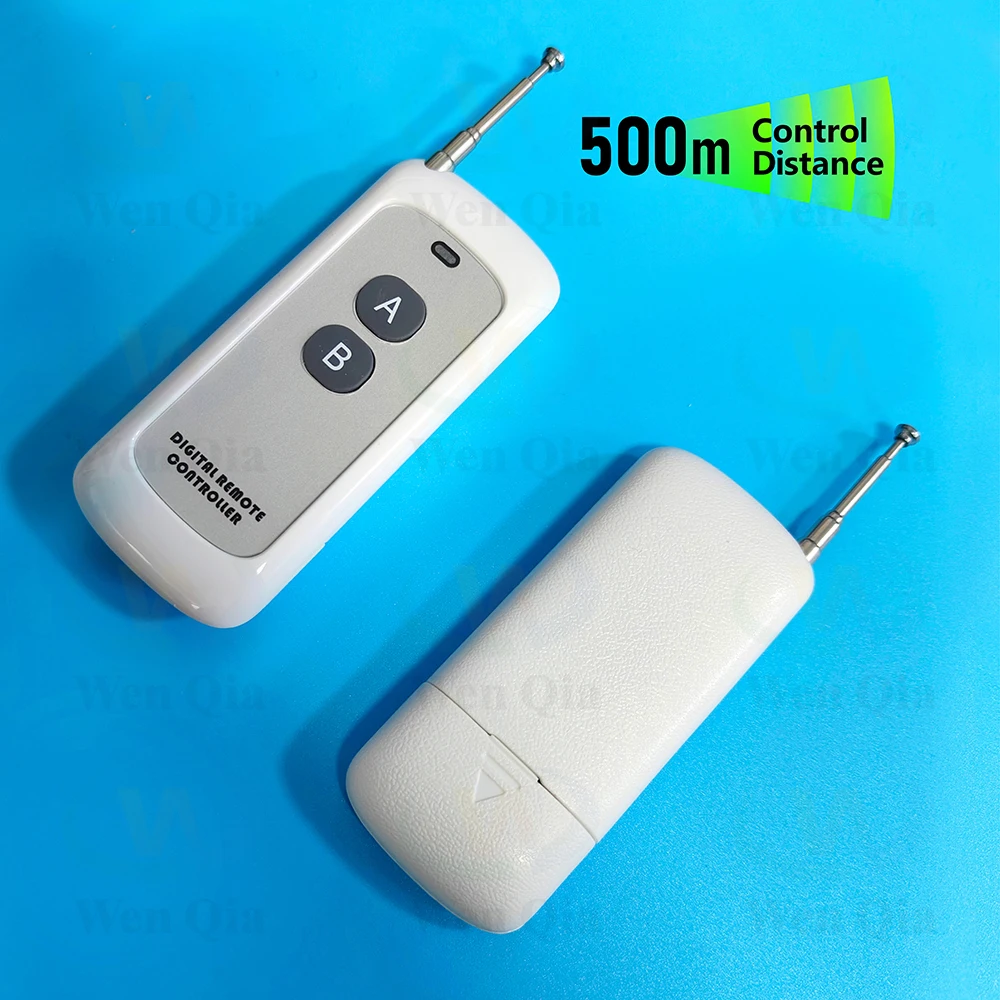

▶ The remote control distance can reach 500m (open space)

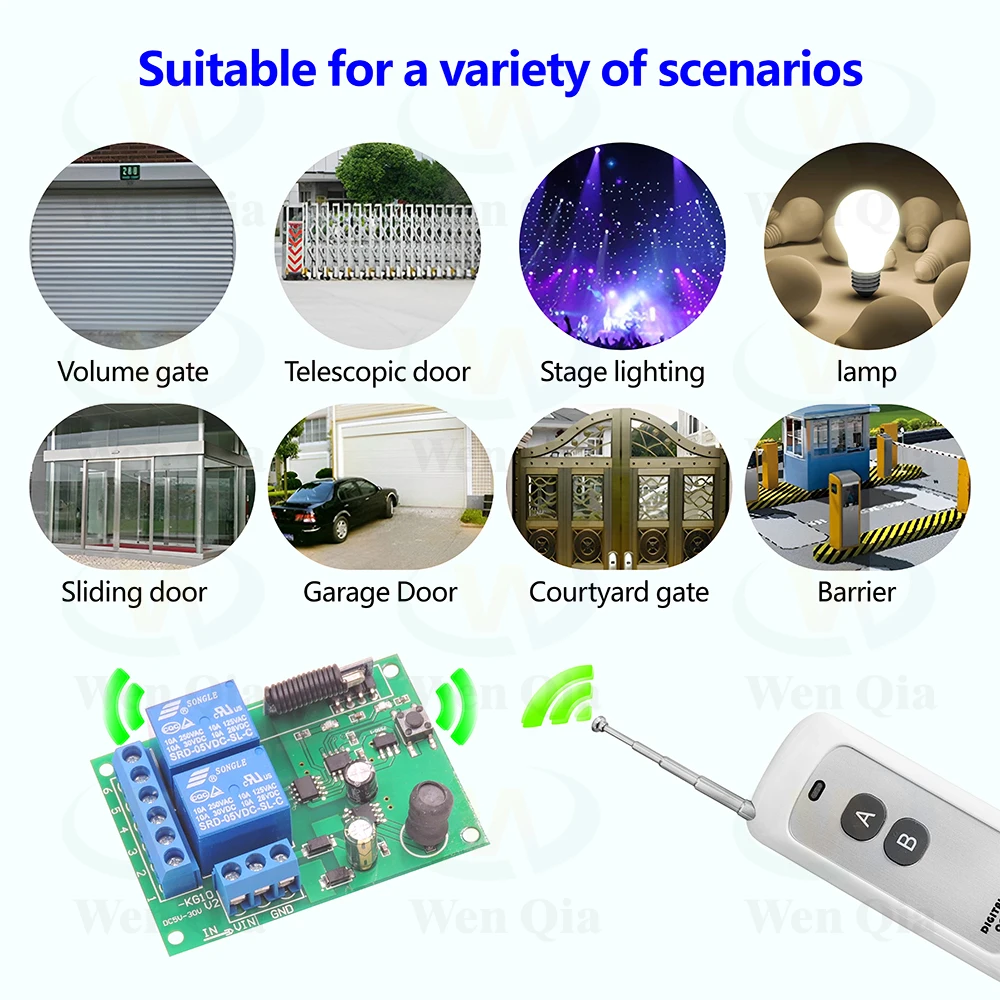

Product application areas
●Products can be used in homes, farms, factories, offices, laboratories, supermarkets, etc.
●Remote control garage door\electric door\house door\rolling door\telescopic door\gate\barrier gate
●Remote control electric curtains\water pumps\fans\desk lamps\LED lights\bulbs\ventilation devices\signal transmission
●Remote control motor forward and reverse\motor switch\DIY

Examples of application scenarios:

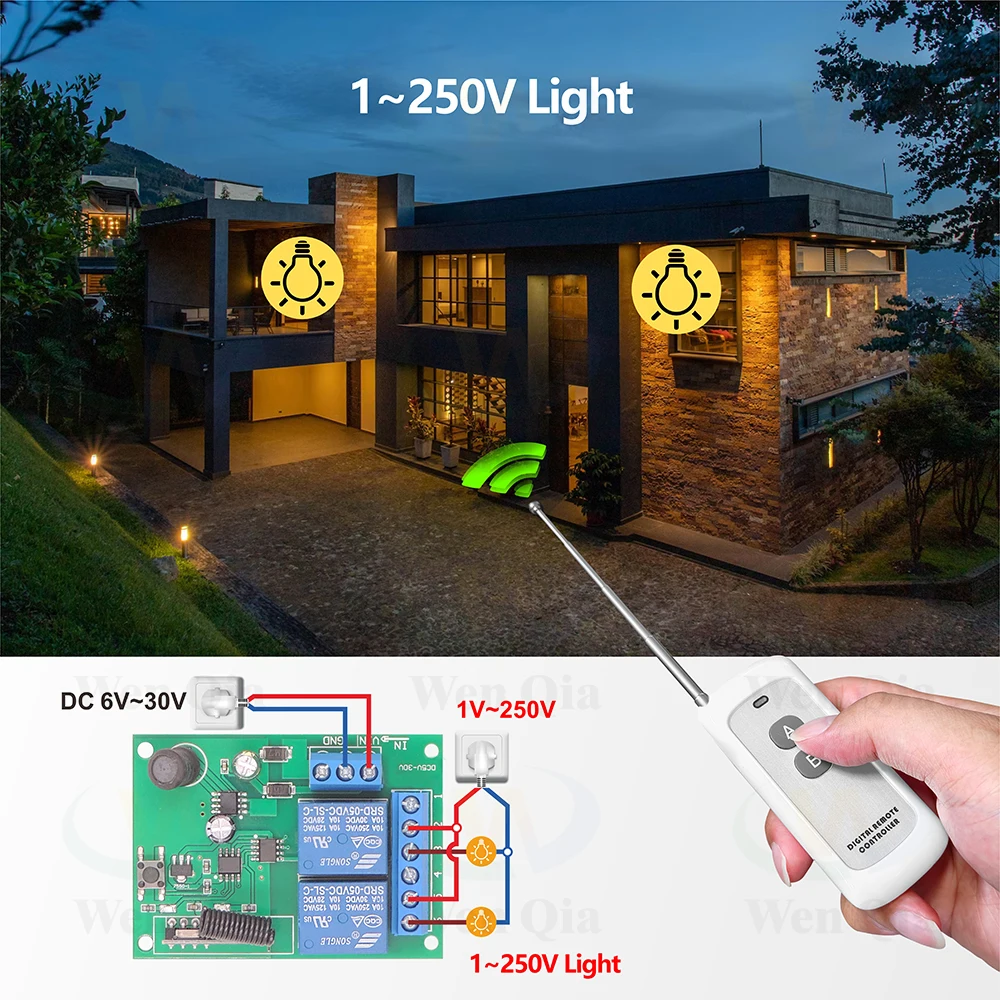

for remote control AC/DC lights

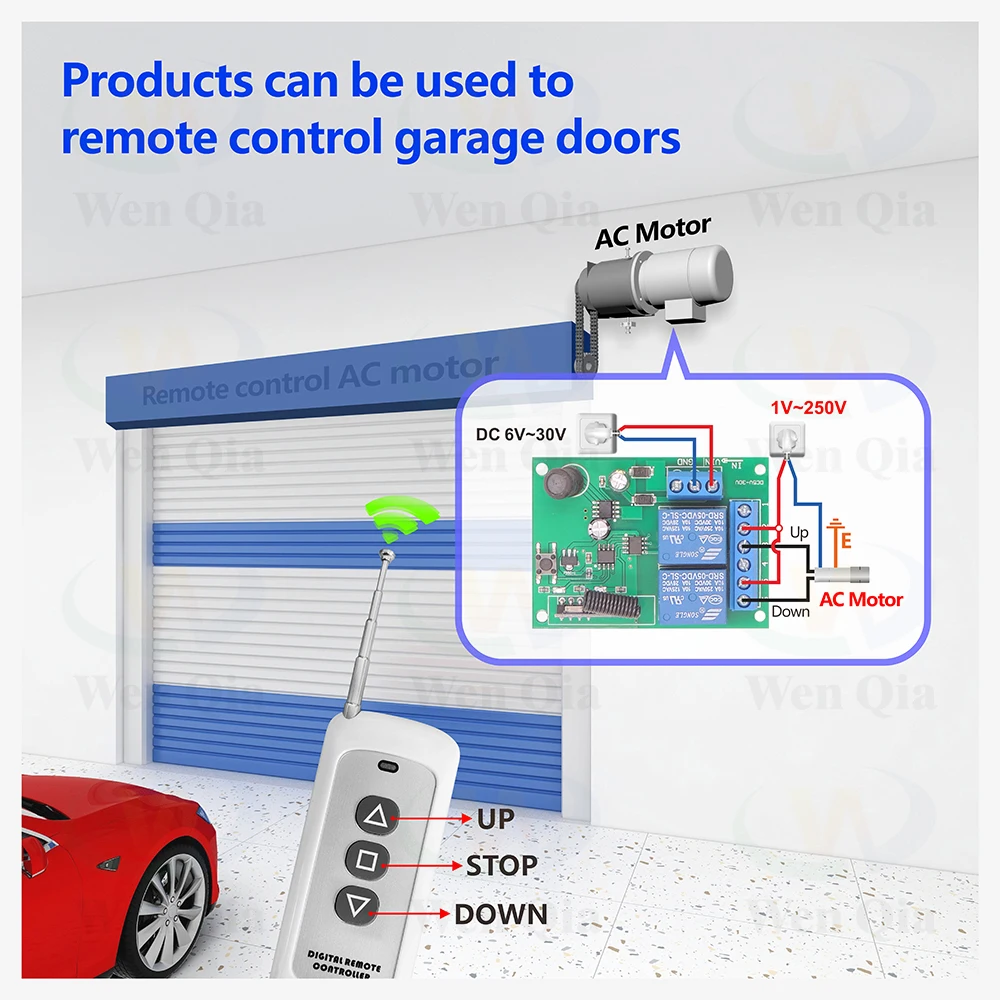

for remote controlled garage doors(AC/DC Motors)

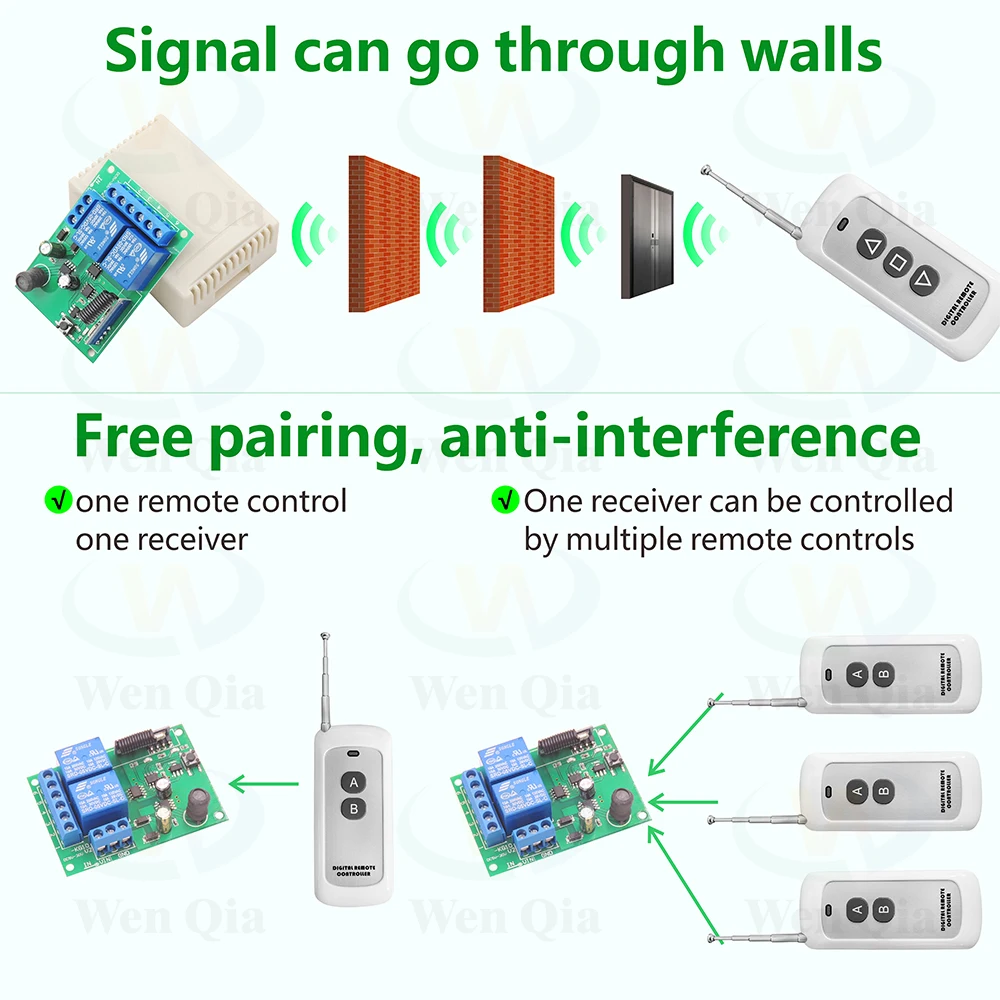

The signal is stable and can pass through walls, and the pairing is flexible. The remote control distance can reach 500 meters (in an open area).
One receiver can be paired with up to 25 remote controls.

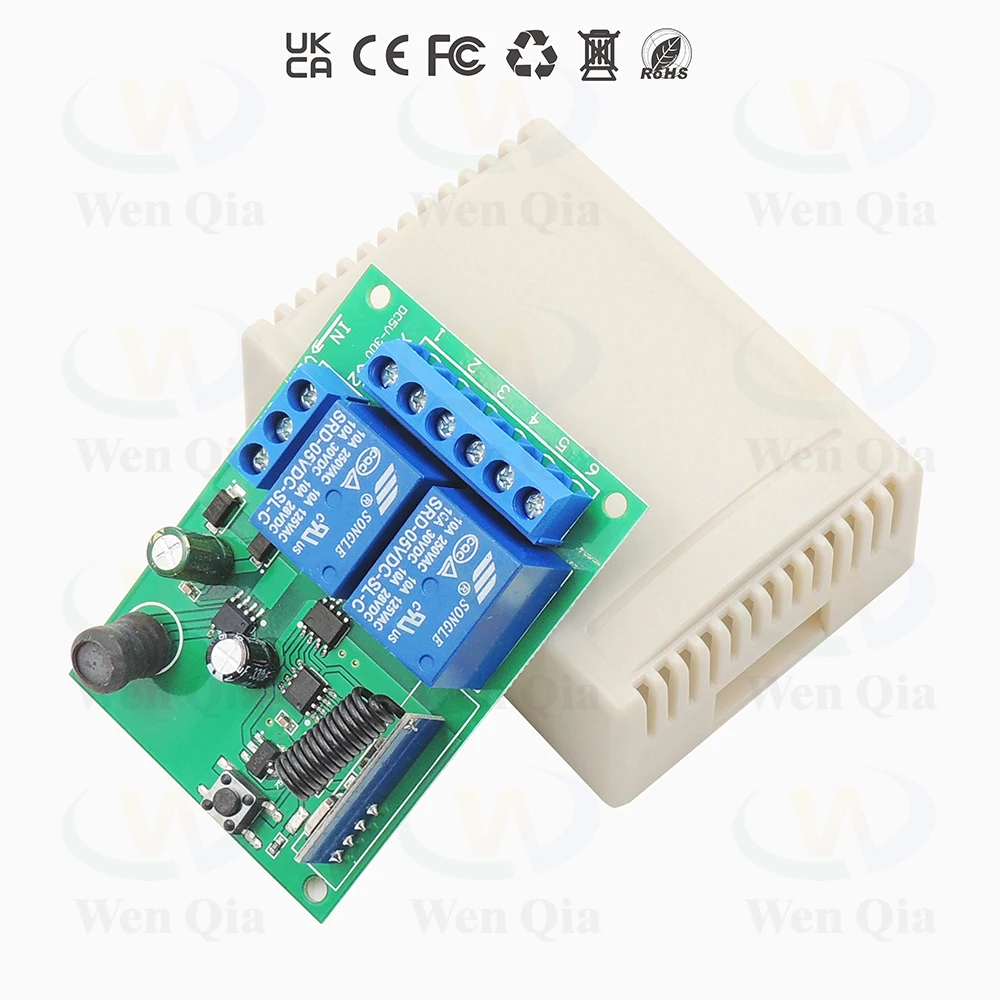

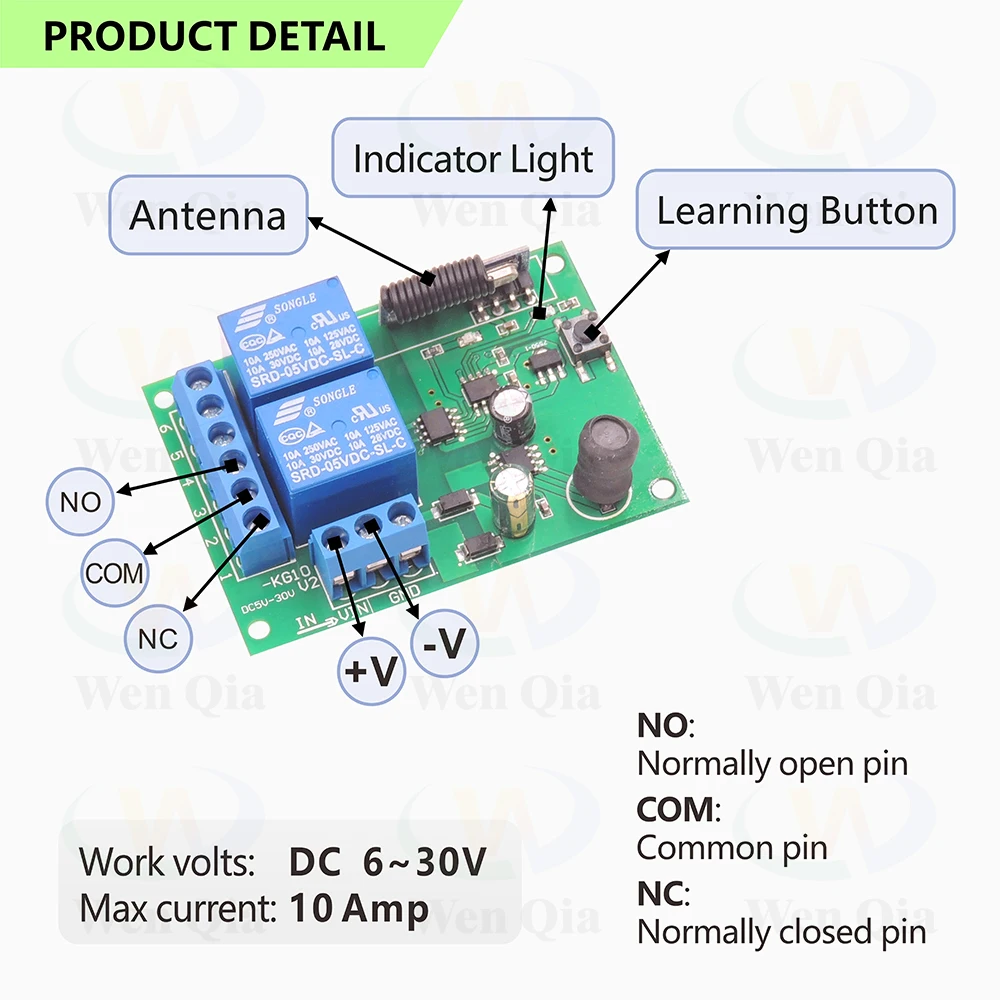

Relay Receiver Board Parameter
Working voltage  :  DC 6V~30V
Input vlotage  :  1~250V
Output vlotage  :  1~250V
Quiescent Current  :  <5MA
Max current  :  10A
Max load:   300W
RF frequency  :  433MHz
Pin  :  NO / COM / NC
Working temperature  :  -30~+80 Celsius
Receiving Sensitivity  :  >97dbm
Amount of storage remote controls  :  25 pieces
Support encoding  :  1527 Learning code /2262 fixed code
RF Operating mode  :  ASK superheterodyne wireless reception
Receiving range  :  Open space is more than 500 meters
Remote operating mode   :Momentary Mode/Toggle Mode / Latched Mode

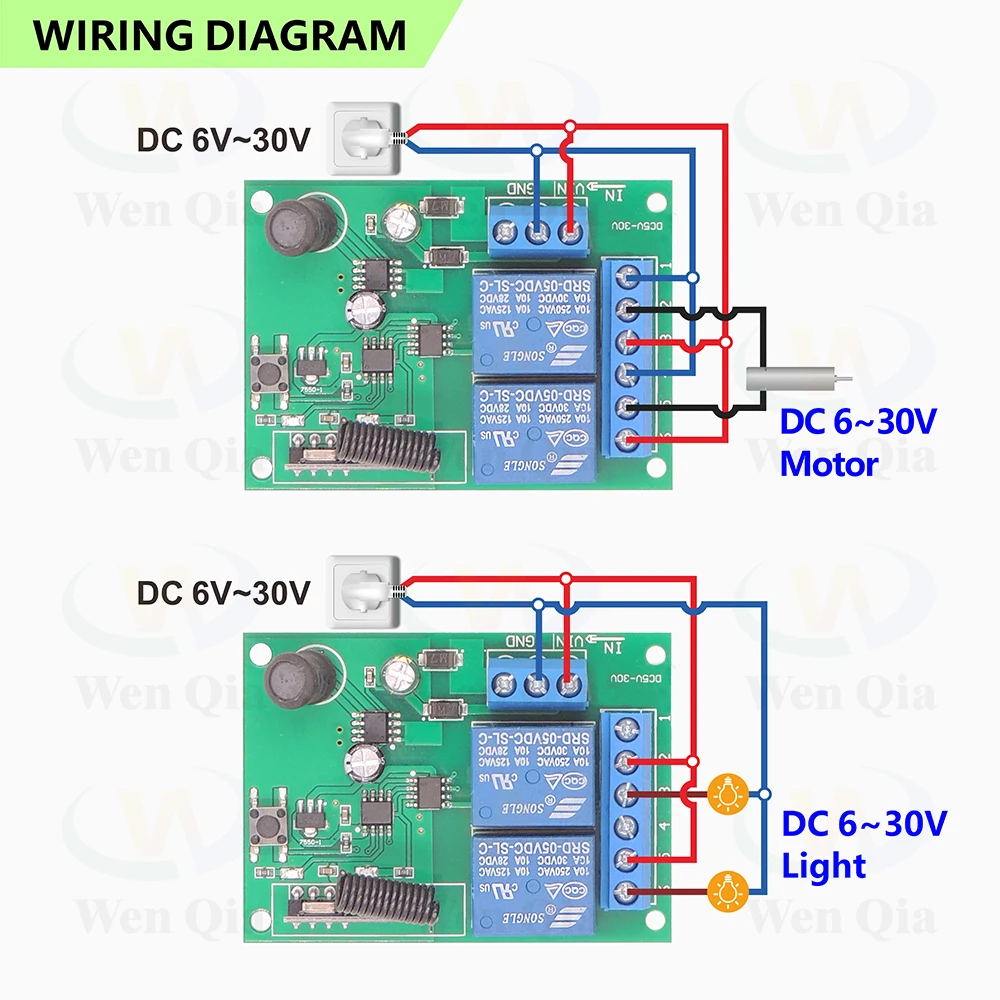

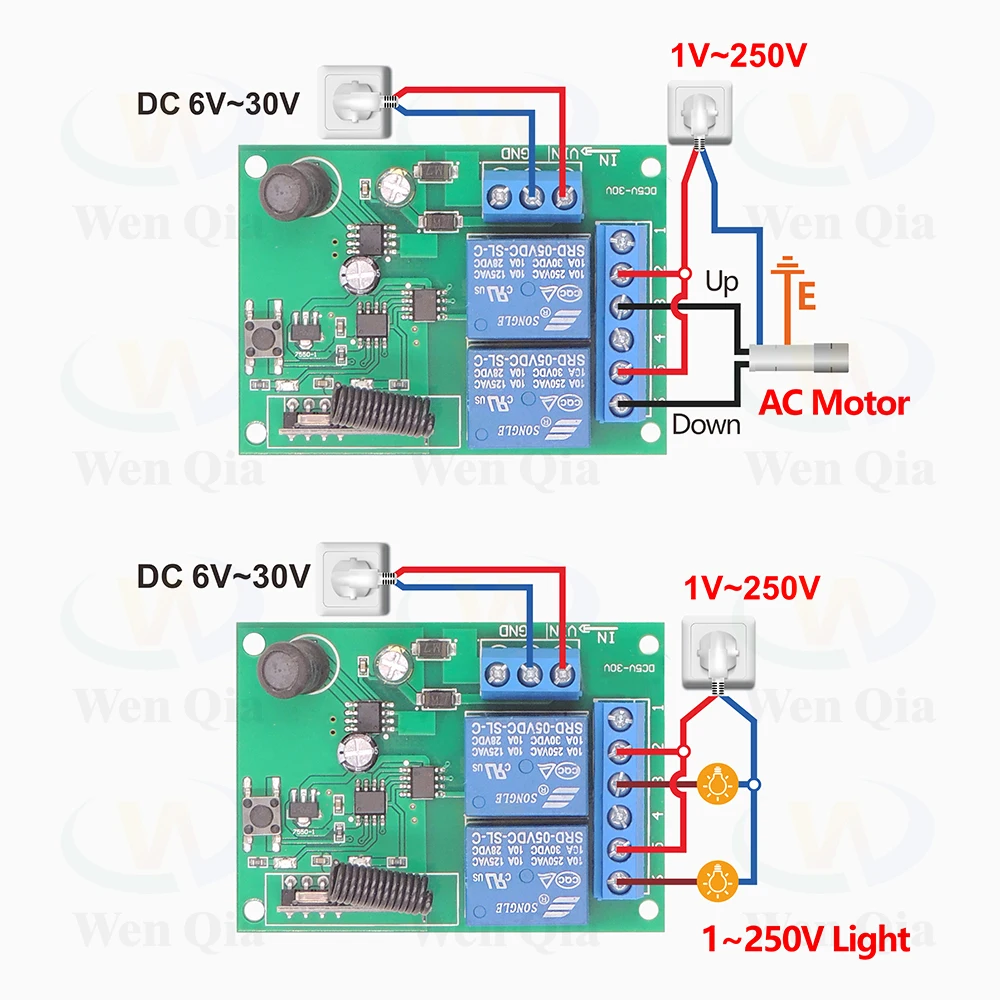

Wiring diagram
If you have any questions, please contact us, we will try our best to answer, We also have video tutorials, please scan the QR code below to enter the video channel.thank you.




Operation Mode

●Momentary Mode:
1. Press and hold one button, relay "1" will turn on;
2. Release the button, this relay "1" will turn off.

●Toggle Mode:
1. Press "A" key, relay "1" will turn on;
2. Press "A" key again, this relay "1" will turn off.

●Latched mode(This mode requires a remote control with at least 3 buttons or more):
1.Press "▲" key, relay "1" will turn on;
2.Press "▼" key, relay "2" will turn on, at the same time relay "1" will turn off.
3.Press "■" key, Both relays "1" and "2" will turn off.

How to set up
1.Memontary Mode: Press learning button on the switch 1 time,press any remote button 1 time,succeed
2.Toggle Mode: Press learning button on the switch 2 times,press any remote button 1 time,succeed
3.Latched mode: Press learning button on the switch 3 times,press"▲"button 1 time,press"▼"button 1 time,succeed

Reset
1.Press learning button 8 times to clean data,then all remotes can not control this receiver

Notice:
1. Reset before you want to change the operating mode of one remote control.
2. After reset, all the remote controls can not work anymore.

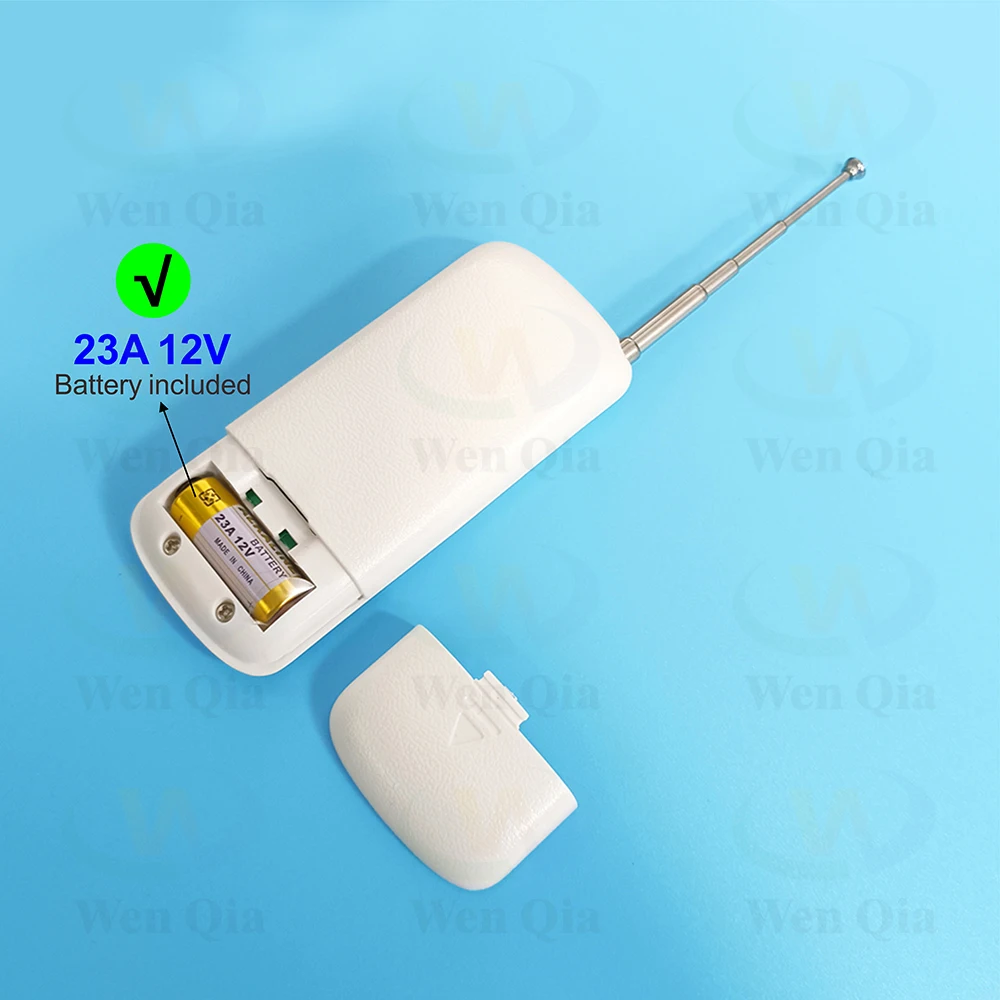

3. Replace the battery in time when the remote control voltage is low. To get the stronger signal transmission.
4. Slightly stretch the antenna on the receiver for better signal reception.
5. The remote control need to have at less 3 or more buttons if you want to set up latched mode.

Please contact with us if you have any questions.Thank you.
