M5StickC PLUS2 ESP32 Mini IoT Development Kit

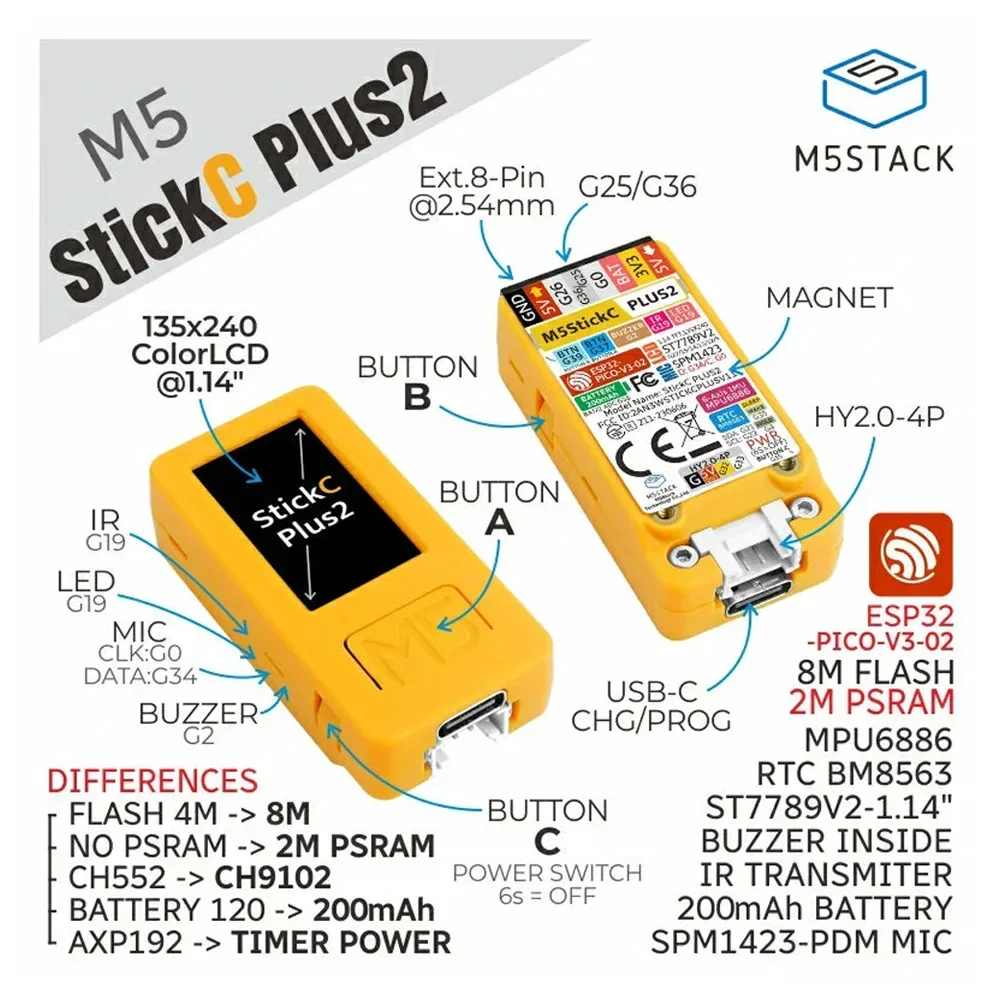

is an iterative version of M5StickC PLUS, featuring the ESP32-PICO-V3-02 chip as the main controller with built-in WiFi functionality. The compact device integrates a wealth of hardware resources within its small form factor, including infrared, RTC, microphone, LED, IMU, buttons, buzzer, and more. It boasts a 1.14-inch TFT screen with a resolution of 135*240, driven by the ST7789V2. The battery capacity has been increased to 200mAh, and the interface also supports HAT and Unit series products. This compact and versatile development tool is designed to spark limitless creative possibilities.facilitates the rapid prototyping of IoT products, streamlining the entire development process. Even beginners in programming can easily build interesting applications and apply them to real-life scenarios using M5StickC PLUS2.
Description
M5StickC PLUS2
M5StickC PLUS2
Features
ESP32-PICO-V3-02-Base,support WiFi
Built-in 6-Axis IMU
IR transmitter
Microphone
RTC
Buttons, LCD(1.14 inch)
Built-in Lithium Polymer Battery@200mAh
Extendable Socket
Built-in Passive Buzzer
Wearable & Wall mounted
Compatible with multi-platform development:
UIFlow
MicroPython
Arduino
.NET nanoFramework

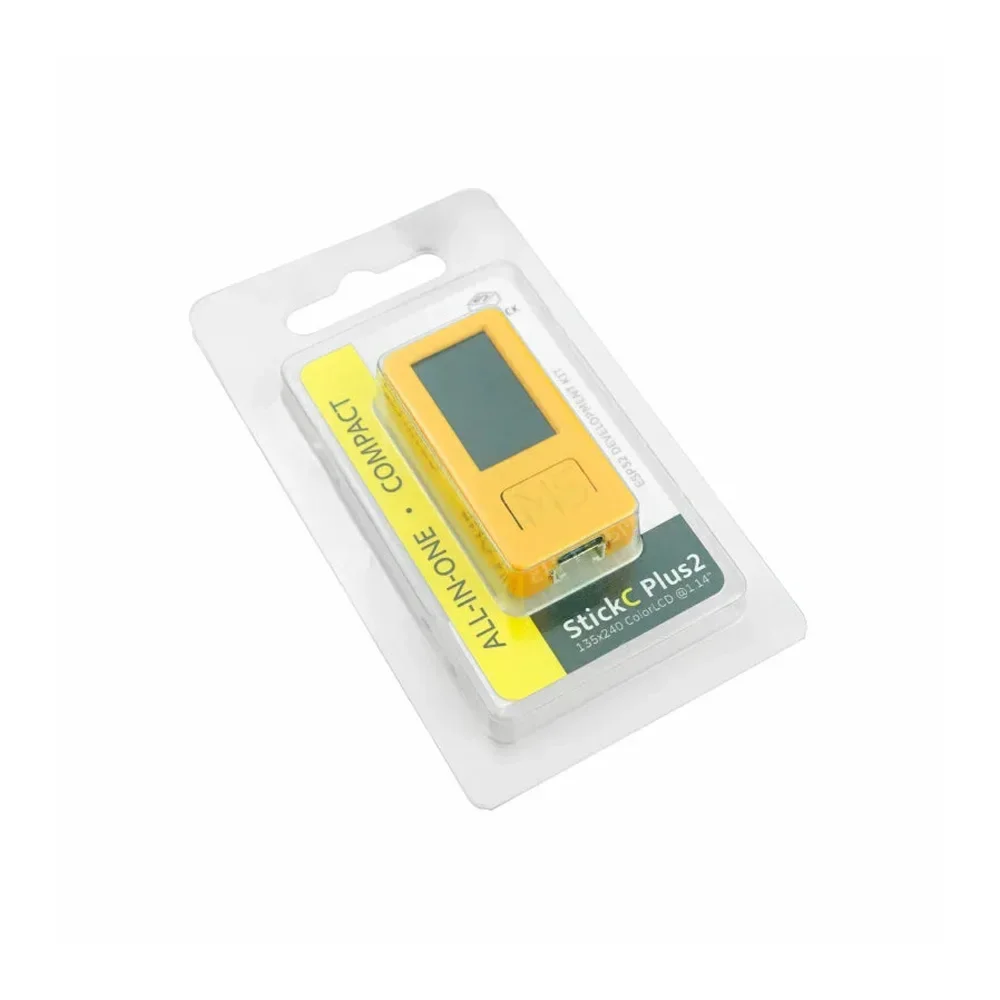

Includes
1x M5StickC Plus2
Applications
Internet of things terminal controller
Wearable devices
Stem education product
DIY creation
Specification
Resources
Parameters
ESP32
ESP32-PICO-V3-02240MHz dual core,support wifi,2 MB SPI PSRAM,8 MB SPI flash
PSRAM
2 MB PSRAM
Flash
8 MB flash
Power Input
5V @ 500mA
Port
TypeC x 1, GROVE(I2C+I/0+UART) x 1

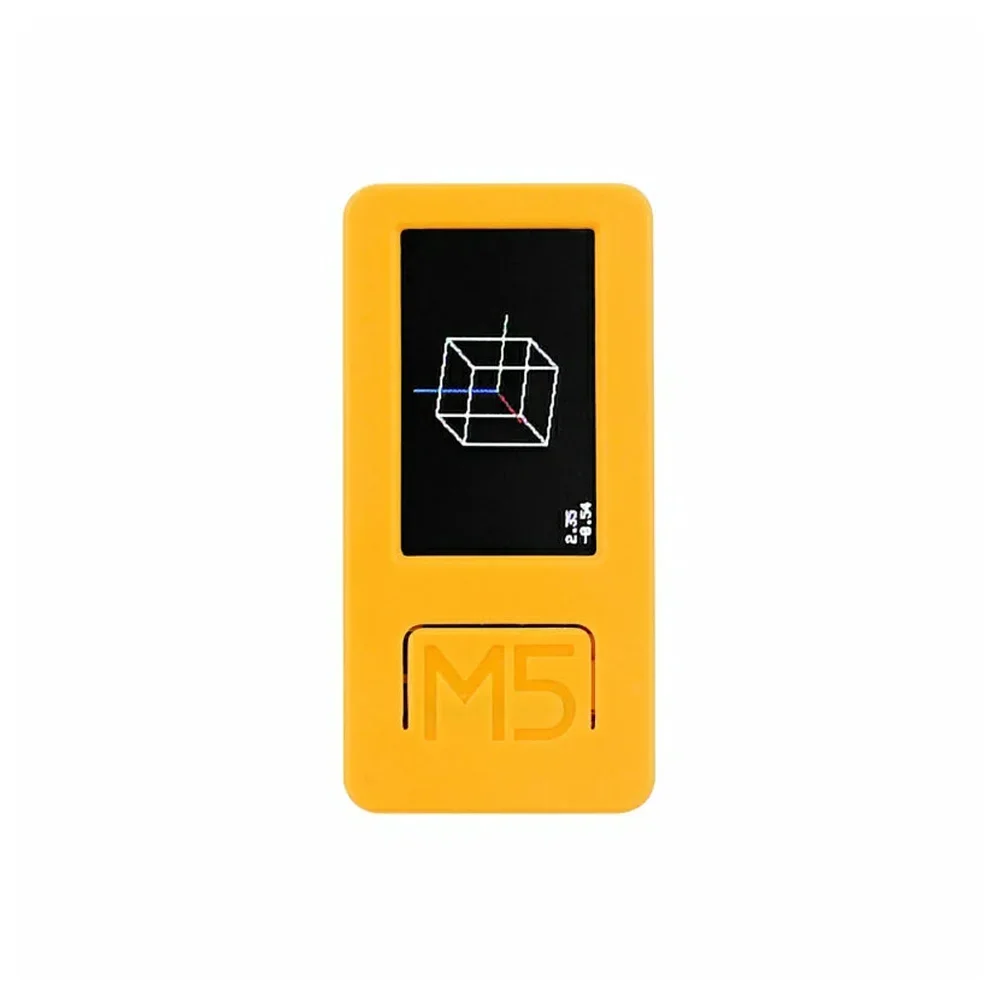

LCD screen
1.14 inch, 135*240 Colorful TFT LCD, ST7789v2
Button
Custom button x 3
LED
GREEN LED
MEMS
MPU6886
Buzzer
built-in buzzer
MIC
SPM1423
RTC
BM8563
Battery
200mAh @ 3.7V
Antenna
2.4G 3D Antenna

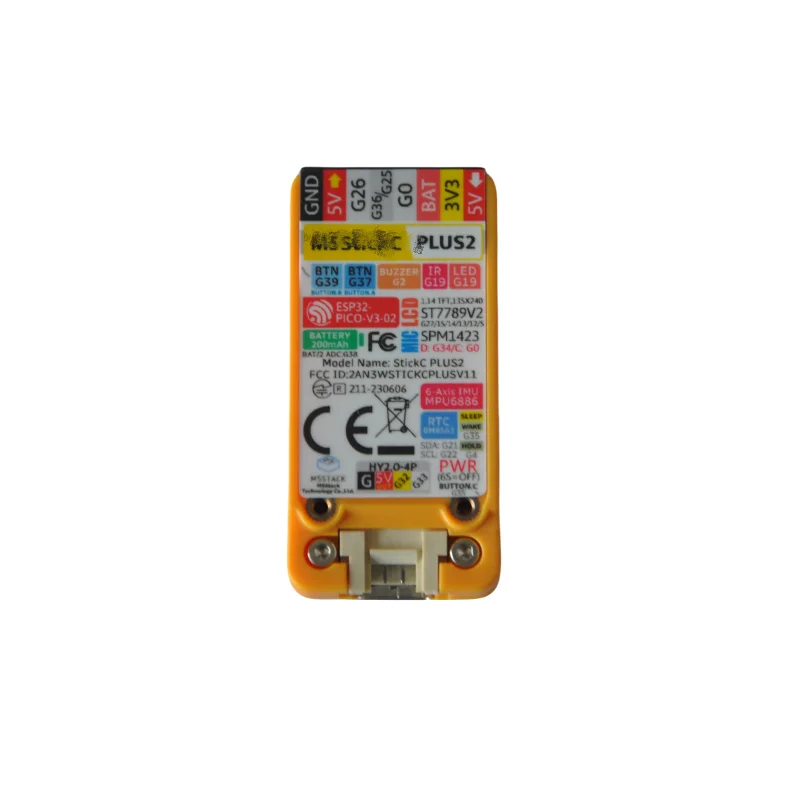

PIN port
G0, G25/G36, G26, G32, G33
Operating Temperature
0°C to 60°C
Case Material
Plastic ( PC )
Product Size
48*25*13mm
Package Size
114*64*23mm
Product Weight
17g
Package Weight
24.8g
