TTS-10 10W Laser Cutting Test Video
Features:
Latest Laser Beam Shaping Technology: TTS-55 uses the latest 5.5W laser beam shaping technology diode laser, it has an ultra-fine 0.08mm sharp laser focus, with super cutting penetration and precision, can cut up to 8mm thick wood, 5mm acrylic, carve ceramics and stainless steel.
Fast focus design: Combines a fixed focus lens and a knob to adjust the height. You just need to turn the knob to focus. Equipped with a fixed focus column, which makes it very easy to use.
Easy assembly structure: aluminum profile structure design, double Y-axis motors make the machine work more stably and improve the engraving accuracy. 60% pre-assembled, assembly can be completed in 30 minutes.
Square measuring ruler: X-axis and Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly.

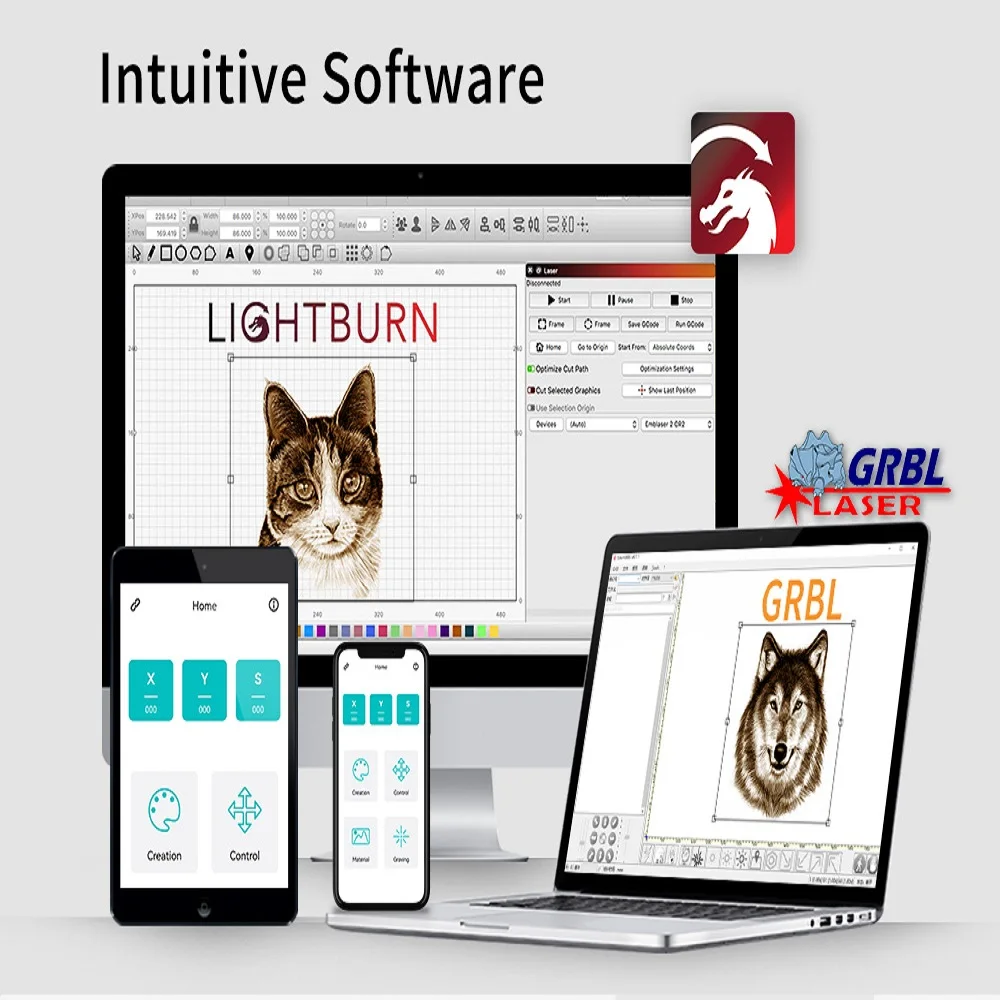

Wide Compatibility:Support mobile APP control, wifi connection, USB connection, offline USE，The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, supports PWM mode engraving, supports Windows Mac system, and engraving file format Support JPG, PNG, DXF, SVG, G-code, NC, BMP, etc.
Safe Design: The laser filter cover filters 98% of the ultraviolet light to the eyes. The motherboard has a separate control switch.
Specifications:
Model: TTS25 / TTS55
Machine Weight: 3kg
Engraving Range: 300 * 300mm
Laser Wavelength: 445 ± 5nm
Engraving Accuracy: 0.1mm
Engraving Speed: 10000mm / min
Software Support System: MAC, Windows
Machine Material: Aluminum Profile + Plastic Parts
Power Supply: 12V 4A DC
Control Board: LTS esp32 Motherboard (32bit)

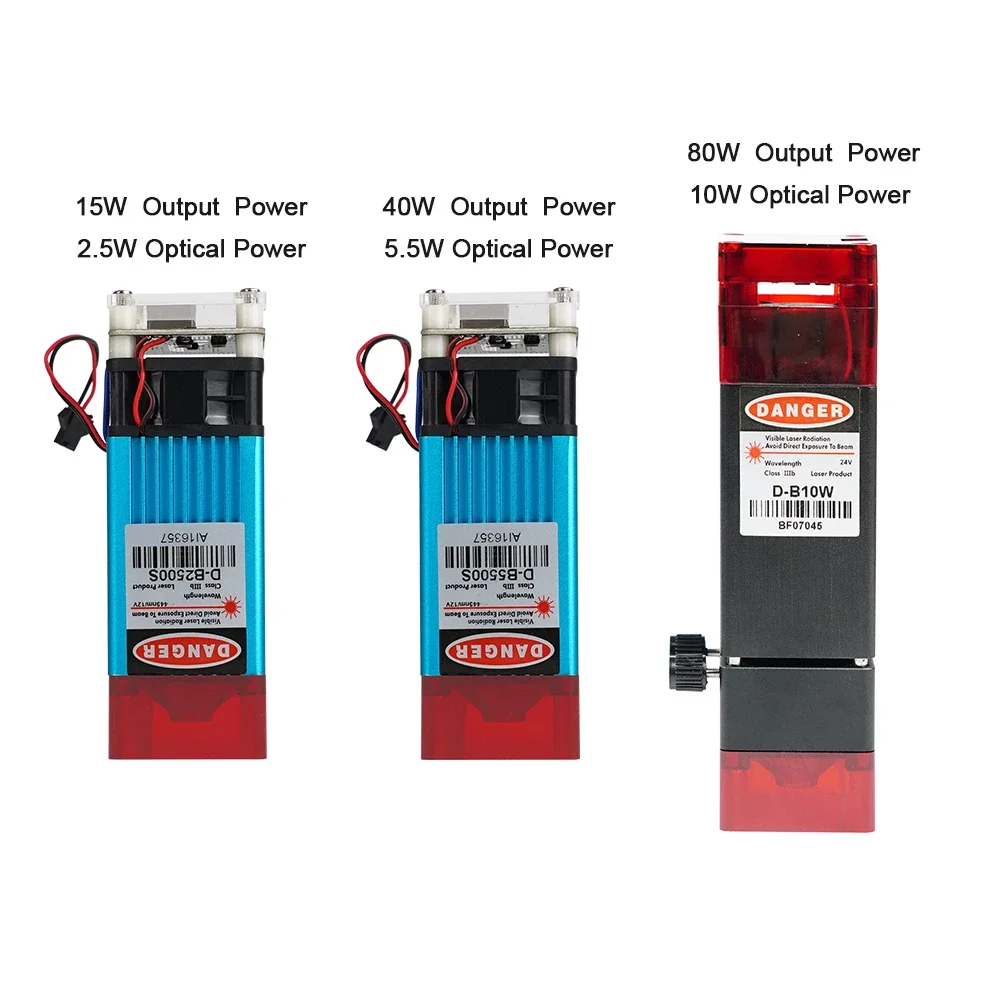

Laser Power: 2.5w/5.5w/10w (optional)
Input Power: 15w/40w/80w (optional)
Software Identification File Format: NC, BMP, JPG, PNG, Gcode, Etc
Supporting software: Lasergrbl (Windows system), Lightburn (General)
Power type: European standard / American Standard (Optional)
Languages Supported By The Software: Chinese, English, Italian, French and German
Working Environment: Temperature 5-40 ℃, Humidity 20-60%
Engraving Mode: USB Online, TF Card (Application Program, Web Page Control)
Carving Materials: Wood, Plastic, Paper, Leather, Sponge Paper, Alumina, Etc
Engraving Mode: Graphic Engraving, File Engraving, Scanning Engraving, Contour Engraving And Pixel Engraving
Note:
1. Please read the Users Manual before use.
2. The laser engraving machine cannot directly act on any specular object. This can cause injury to the operator or burn the laser.
3. The product has a high engraving speed and is not recommended for industrial cutting.
4. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin! Also do not operate the laser head directly with your hands. To ensure personal safety, fireproof and away from the children's environment.
5. Turn off the power when not use.
TTS-55 Laser Engraver Complex Efficient Easy To Handle
High precision Fast engraving machine
Compression Spot Technology ,Fast Engraving and Higher Engraving Precision
1. Compressed-spot technology utilise FAC lens-the collomate light function,making laser beam more concentrated and the power density much higher.
2. Longer effective energy range,higher energy density,stronger cutting ability,fine spot size.
3. LD+FAC+C-Lens increase the speed of engraving while maintain a higher precision.
High-Precision EngravingThe laser source of TTS-55 is guided by LD+FAC+C-Lens technology,the spot is as small as 0.08mm,engraving works are more delicate.
More Creative Display
variety of materials for engraving and cutting

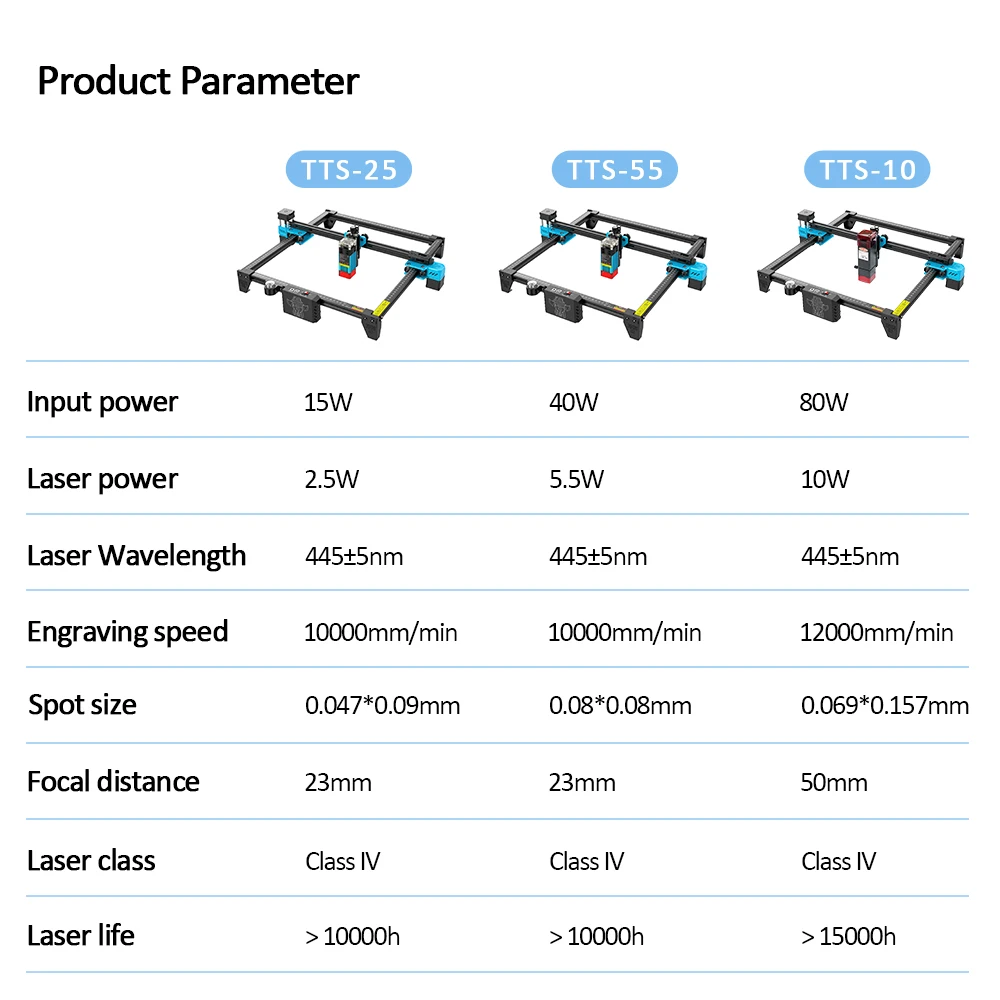

Machine parameters:
Model: TTS55Pro / TTS10Pro
Machine Weight: 3kg
Engraving Range: 300 * 300mm
Laser Wavelength: 445 ± 5nm
Engraving Accuracy: 0.1mm
Engraving Speed: 10000mm / min
Software Support System: MAC, Windows
Machine Material: Aluminum Profile + Plastic Parts
Power Supply: 12V 4A DC
Control Board: LTS esp32 Motherboard (32bit)
Laser Power: 5.5w/10w (optional)
Input Power: 40/80w (optional)
Software Identification File Format: NC, BMP, JPG, PNG, Gcode, Etc
Supporting software: Lasergrbl (Windows system), Lightburn (General)
Power type: European standard / American Standard (Optional)
Languages Supported By The Software: Chinese, English, Italian, French and German
Working Environment: Temperature 5-40 ℃, Humidity 20-60%
Engraving Mode: USB Online, TF Card (Application Program, Web Page Control)
Carving Materials: Wood, Plastic, Paper, Leather, Sponge Paper, Alumina, Etc
Engraving Mode: Graphic Engraving, File Engraving, Scanning Engraving, Contour Engraving And Pixel Engraving
